Sony CFD-RS60CP - 7 Exploded Views; Cabinet Section

50
CFD-RS60CP
SECTION 7
EXPLODED VIEWS
1 3-216-200-01 LID, BATTERY CASE
2 3-254-140-11 SCREW (B2.6), (+) BV TAPPING
3 3-216-214-01 COVER (HANDLE R)
4 2-547-159-21 HOLDER (HANDLE) (R)
5 3-254-151-01 SCREW (B2.6), (+) P TAPPING
6 3-252-833-01 SCREW (M3), (+) P
7 2-547-158-21 HOLDER (HANDLE) (L)
8 3-216-213-01 COVER (HANDLE L)
9 3-216-197-01 HANDLE
ANT1 1-754-376-11 ANTENNA, TELESCOPIC (FM)
#1 7-688-002-11 W 2.6, MIDDLE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

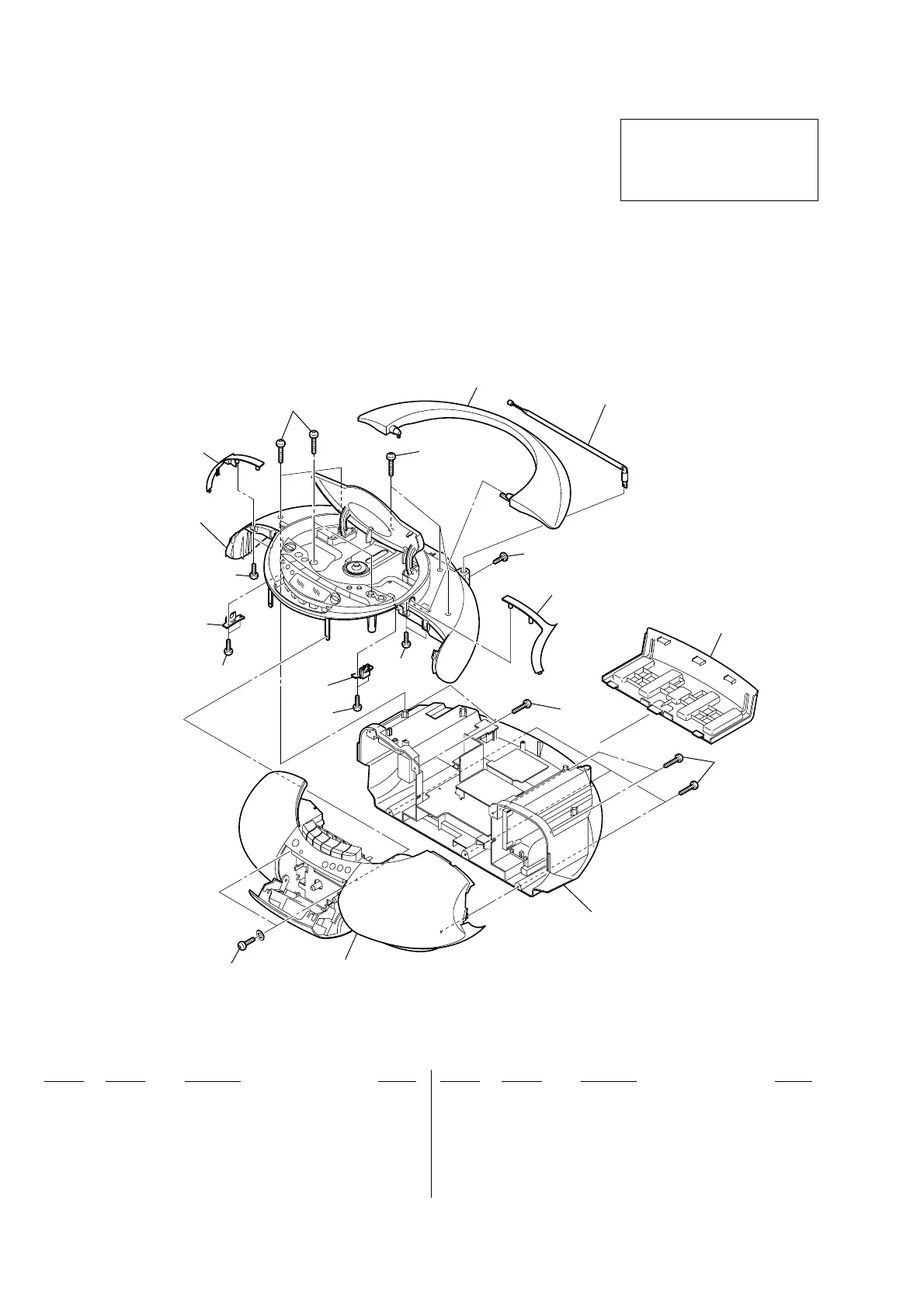

7-1. CABINET SECTION
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of electrical
parts list.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
•Abbreviation
E41 : AC 230V area in E model
MX : Mexican model
SP : Singapore model
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
2
2
3
4
5
5
5
5
5
7
8
9
6
ANT1
#1
cabinet bottom section
cabinet (top) (1) section
cabinet front section
2
2
