Sony CFD-RS60CP Service Manual

52
CFD-RS60CP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-923-736-01 COVER, CD
102 3-931-379-21 RUBBER, VIBRATION PROOF (RED)
103 3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
104 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
105 1-832-644-21 CABLE, FLEXIBLE FLAT (27 CORE)
106 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
107 A-1236-250-A BD91 BOARD, COMPLETE
108 3-931-379-31 RUBBER, VIBRATION PROOF (GREEN)
109 3-253-143-01 SCREW (B2.6), (+) P TAPPING
110 3-019-395-01 PLATE, CHUCKING
111 1-452-899-11 MAGNET
112 3-216-198-01 LID, CD
113 2-547-171-01 SPRING (CD)
114 3-047-468-11 DAMPER
0115 8-820-126-02 OPTICAL PICK-UP (KSM-213CDP/C2NP)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
S801 1-692-960-11 SWITCH, PUSH (1 KEY)
(Z PUSH OPEN/CLOSE)
#2 7-685-853-04 SCREW +BVTT 2X6 (S)

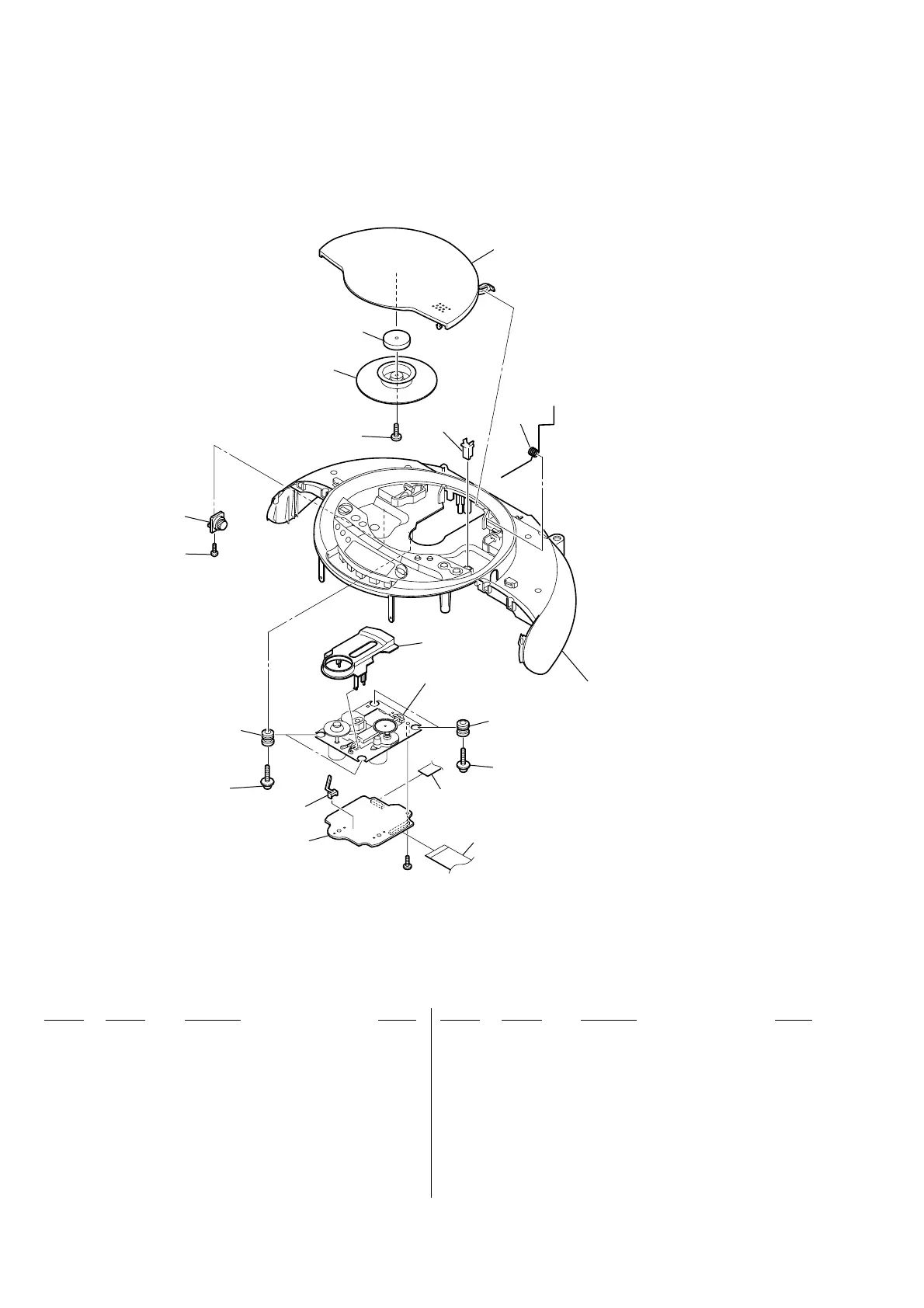

7-3. CABINET (TOP) (1) SECTION
101
102
103
104
105
107
103
108
S201
#2
S801
cabinet (top) (2) section
109
110
111
112
113
114
115
106

Sony CFD-RS60CP Specifications

General

Radio type	Portable
Tuner type	Digital
AM band range	530 - 1611 kHz
FM band range	87.5 - 108 MHz
Backlight	Yes
Product color	Black
Dimensions (WxDxH)	420 x 159 x 260 mm

Weight and Dimensions

Weight	3700 g
