CFD-RS60CP

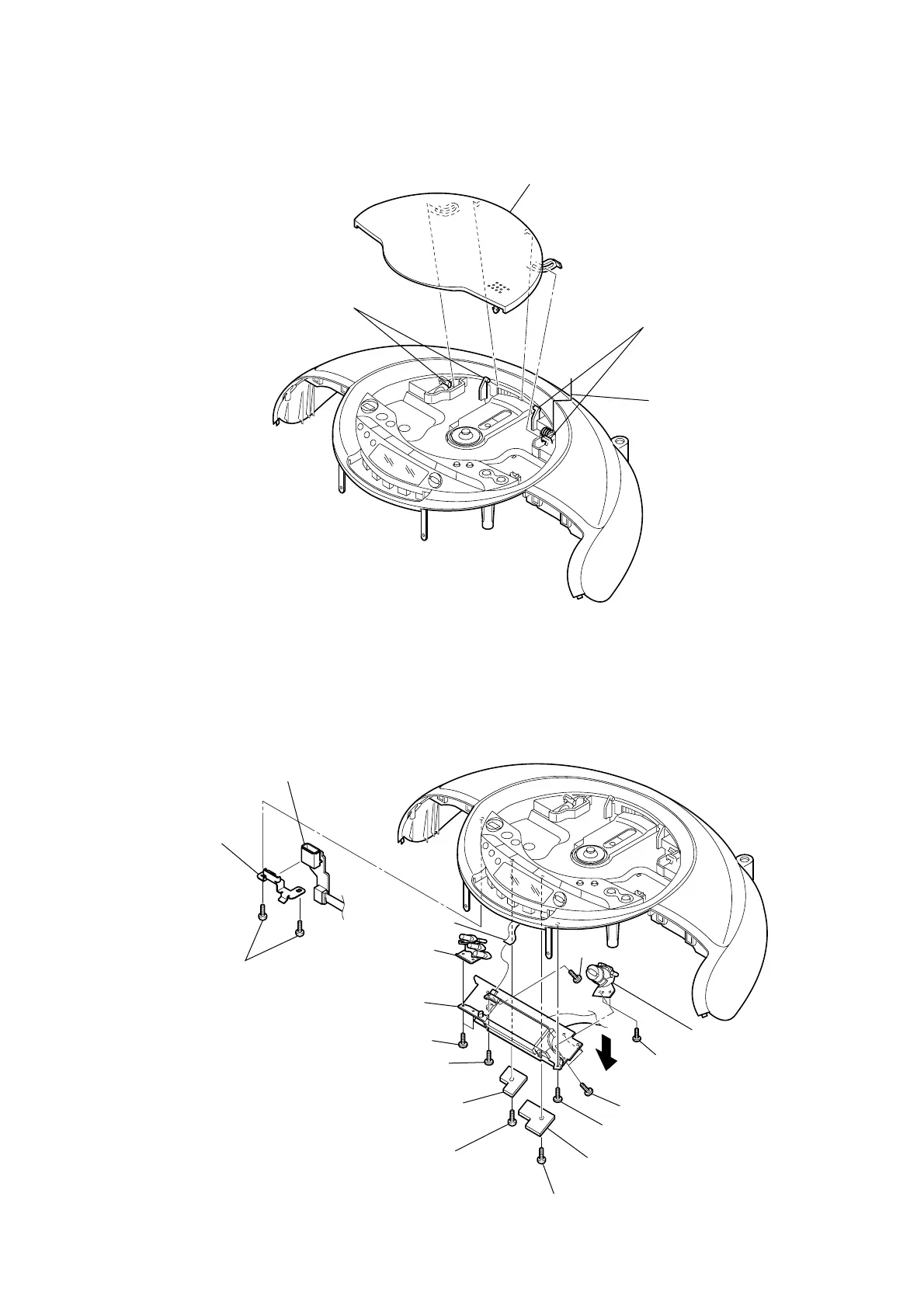

3-10. LCD BLOCK ASSY, USB CONNECT BOARD
3-9. CD LID
3 CD lid
1 two claws
2 two claws
spring (CD)
5 two screws
0 CN402 (5core)
2 CD KEY HOLD (A) board
4 CD KEY HOLD (B) board
6 screw
7 screw
qd three screws
qf button (FLDR) sub assy
qa screw
8 two screws
qs button (mode)
qj USB CONNECTOR board
qk bracket
(USB connector)
qg LCD block assy
9
1 screw
(+P tapping (B2.6
) )
qh two screws
(+BV tapping (B2.6
) )
3 screw
(+P tapping (B2.6
) )

Sony CFD-RS60CP Specifications

General

Radio type	Portable
Tuner type	Digital
AM band range	530 - 1611 kHz
FM band range	87.5 - 108 MHz
Backlight	Yes
Product color	Black
Dimensions (WxDxH)	420 x 159 x 260 mm

Weight and Dimensions

Weight	3700 g
