14
CFD-RS60CP

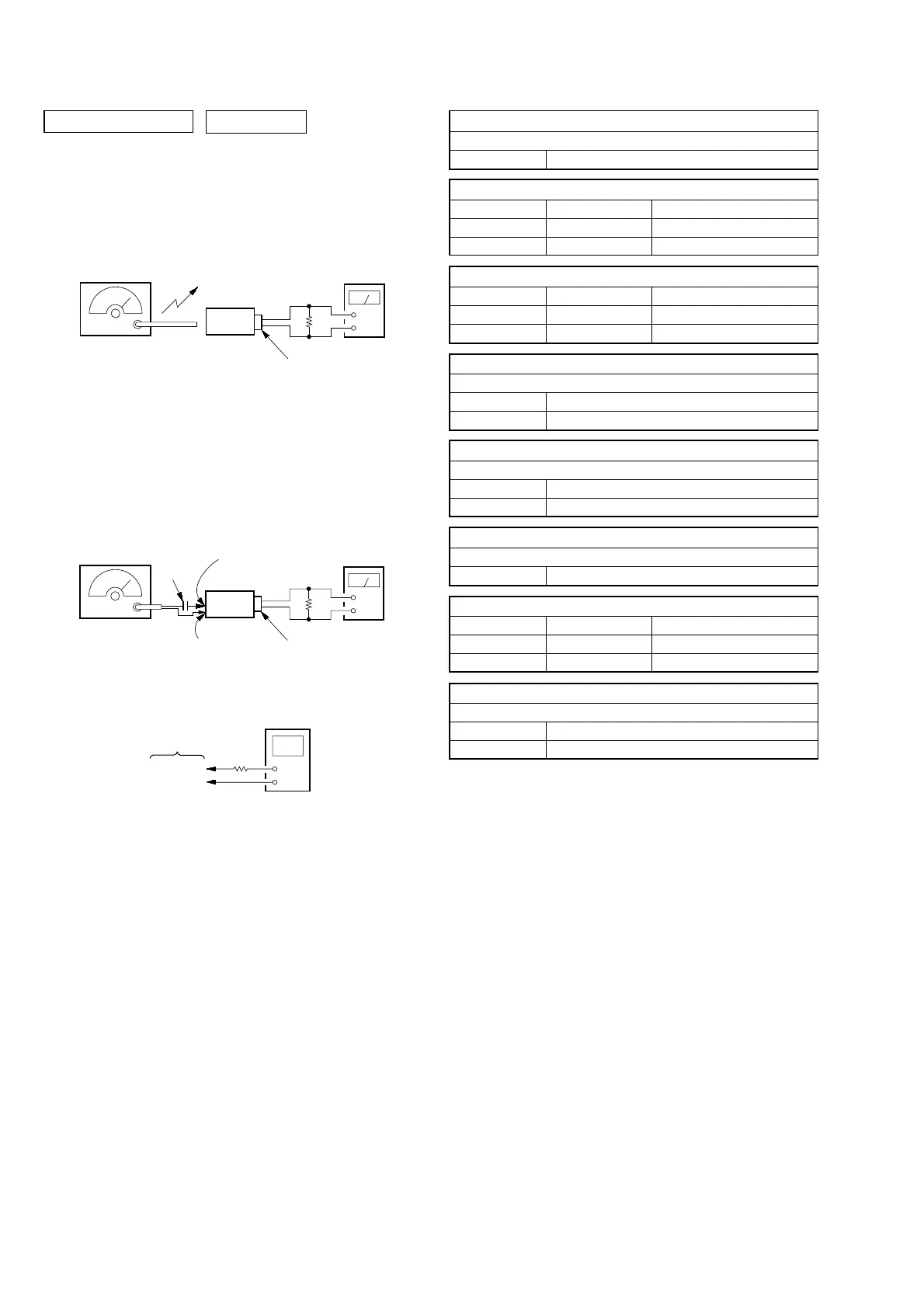

TUNER SECTION 0 dB = 1 µV
[AM]
Setting:
Function: RADIO
Band: AM
[FM]
Setting:
Function: RADIO
BAND button: FM
•Repeat the procedures in each adjustment several times, and
the tracking adjustments should be finally done by the trimmer
capacitors.
• Remove FM antenna in FM adjustment.
AM/MW RF signal
generator
30% amplitude
modulation by
400 Hz signal
Output level:
as low as possible
Put the loop
antenna close to
the set.
+
–
level meter
set
32
Ω
i
jack (J371)
FM RF signal
generator
75 kHz frequency
deviation by 1 kHz
signal
Output level:
as low as possible
+
–
level meter
set
32
Ω
0.01
µ
F
TUNER board
TP (GND)
TUNER board
TP-ANT(JW2)
i
jack (J371)
digital voltmeter
TP (CV)
TP (GND)
100 k
Ω
TUNER board
AM IF ADJUSTMENT
Adjust for a maximum reading on level meter
T1 450 kHz
AM FREQUENCY COVERAGE ADJUSTMENT (MX model)
Adjustment Part Frequency Display Reading on Digital Voltmeter
L4 530 kHz 1.0 ± 0.05 V
Confirmation 1,710 kHz 5.3 ± 0.7 V
AM FREQUENCY COVERAGE ADJUSTMENT (E41, SP model)
Adjustment Part Frequency Display Reading on Digital Voltmeter
L4 531 kHz 1.0 ± 0.05 V
Confirmation 1,611 kHz 4.8 ± 0.7 V
AM TRACKING ADJUSTMENT (MX model)
Adjust for a maximum reading on level meter
L3 620 kHz
CT3 1,400 kHz
AM TRACKING ADJUSTMENT (E41, SP model)
Adjust for a maximum reading on level meter
L3 621 kHz
CT3 1,404 kHz
FM IF ADJUSTMENT
Adjust for a minimum reading on level meter
T2 10.7 MHz
FM FREQUENCY COVERAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on Digital Voltmeter
L2 108 MHz 3.0 ± 0.2 V
Confirmation 87.5 MHz 1.3 ± 0.3 V
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L1 87.5 MHz
CT1 108 MHz
• Abbreviation
E41 : AC 230V area in E model.
MX : Mexican model.
SP : Singapore model.
Adjustment and Connecting Location:
TUNER board (See page 15)
