CFD-RS60CP

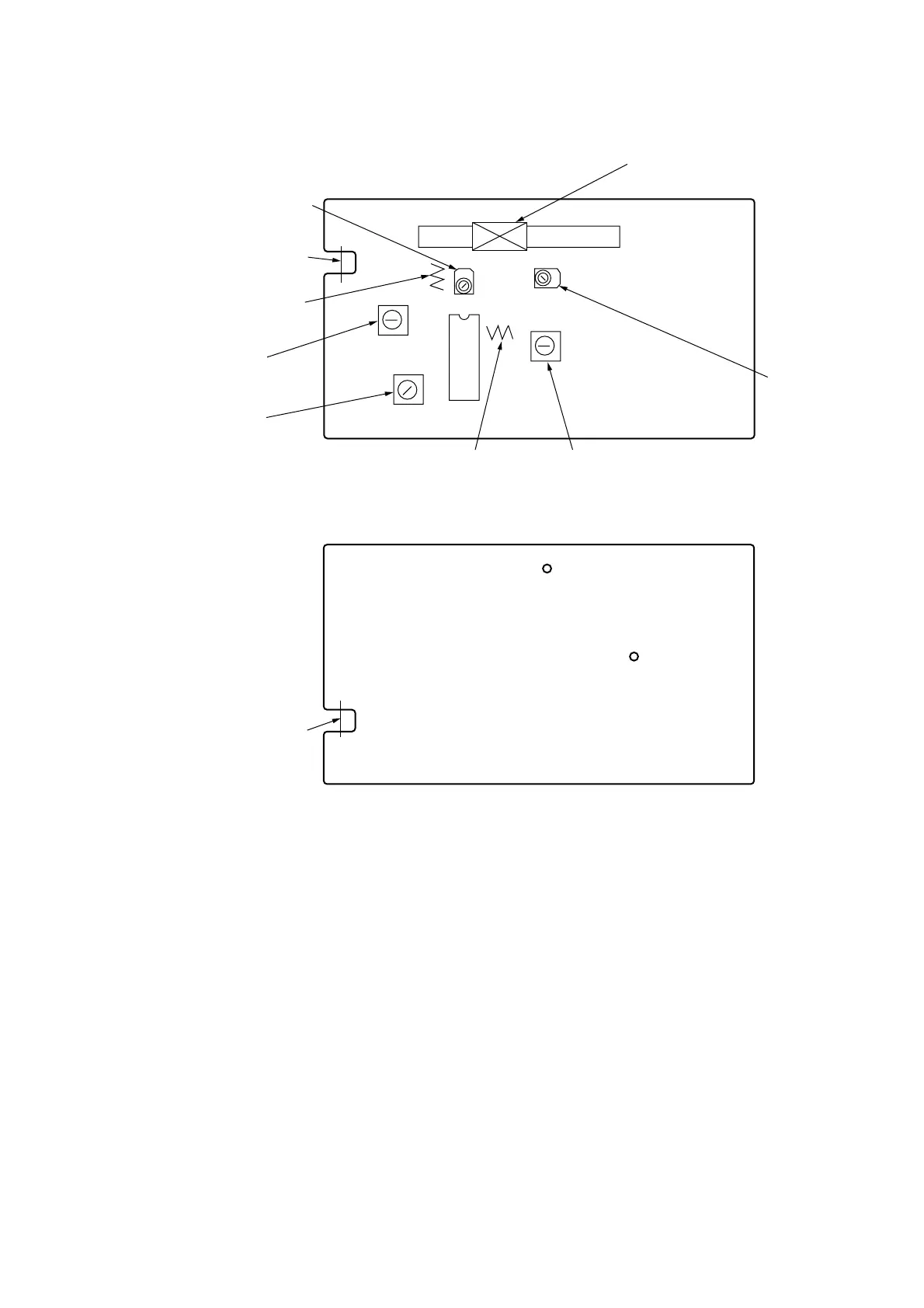

Adjustment and Connecting Location:
L3
AM TRACKING ADJUSTMENT
CT1
FM FREQUENCY
COVERAGE
ADJUSTMENT
L2
FM FREQUENCY
COVERAGE
ADJUSTMENT
L4
AM FREQUENCY COVERAGE
ADJUSTMENT
CT3
AM TRACKING
ADJUSTMENT
TP-ANT
(JW2)
IC1
– TUNER BOARD (Component Side) –
TP
(GND)
TP
(CV)
TP-ANT
JW2
– TUNER BOARD (Conductor Side) –
L1
FM TRACKNG
ADJUSTMENT
T1
AM IF
ADJUSTMENT
T2
FM IF
ADJUSTMENT
