Sony CFD-RS60CP Service Manual

53
CFD-RS60CP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-1317-472-A BUTTON (CD) ASSY
152 3-254-151-01 SCREW (B2.6), (+) P TAPPING
153 2-594-014-01 PLATE, SUPPORT
154 1-834-579-21 CABLE, FLEXIBLE FLAT (5 CORE)
155 X-2179-688-1 BUTTON (FLDR) SUB ASSY
156 A-1317-473-A CD KEY BOARD, COMPLETE
157 3-254-081-01 SCREW
158 1-831-999-21 CABLE, FLEXIBLE FLAT (15 CORE)
159 A-1317-478-A LCD BOARD, COMPLETE
160 3-216-203-01 BUTTON (MODE)
161 2-547-164-01 HOLDER (LCD)
162 2-547-143-01 PLATE, LIGHT GUIDE
163 2-584-370-01 SHEET, LCD
164 A-1317-475-A USB CONNECT BOARD, COMPLETE
165 1-500-868-11 CORE, FERRITE
166 3-216-216-01 ESCUTCHEON (LCD)
167 3-216-215-01 WINDOW (LCD)
168 2-547-172-01 TAPE (LCD) (WINDOW)
169 3-250-079-01 TAPE (LCD WINDOW) (B)
170 3-216-196-01 COVER (TOP)
171 3-216-193-01 CABINET (TOP)
172 3-254-070-01 SCREW
173 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
174 3-255-102-01 WASHER, PETP
175 3-831-441-11 CUSHION (B)
LCD401 1-802-533-11 DISPLAY PANEL, LIQUID CRYSTAL

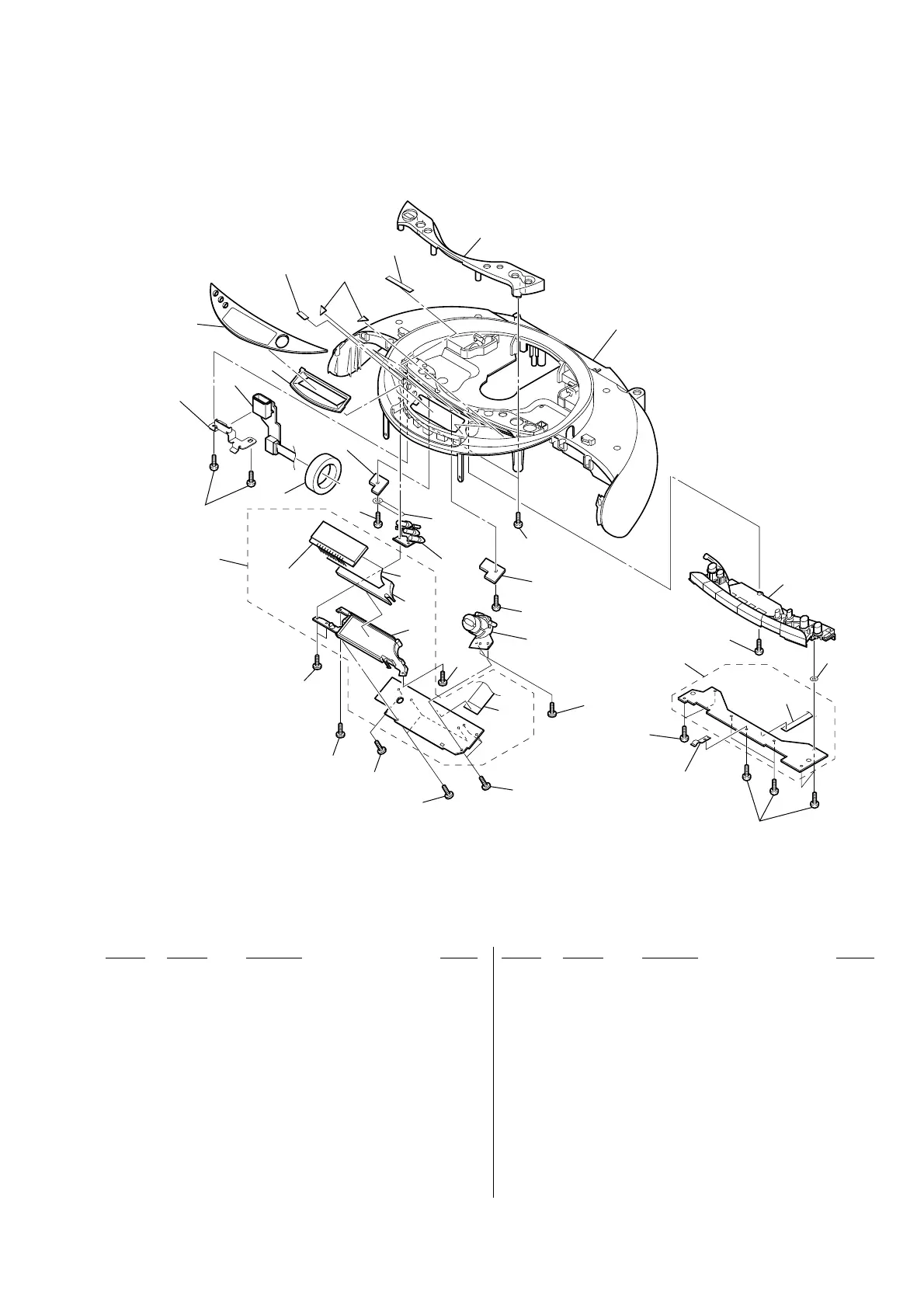

7-4. CABINET (TOP) (2) SECTION
151
154
174
156
152
152
153
152
152
152
155
157
172
172
172
157
157
157
159
158
166
168
169
161
162
163
160
167
170
171
175
LCD401
not supplied
152
165
173
164
not supplied
not
supplied
not supplied

Sony CFD-RS60CP Specifications

General

Radio type	Portable
Tuner type	Digital
AM band range	530 - 1611 kHz
FM band range	87.5 - 108 MHz
Backlight	Yes
Product color	Black
Dimensions (WxDxH)	420 x 159 x 260 mm

Weight and Dimensions

Weight	3700 g
