Sony CFD-RS60CP Service Manual

54
CFD-RS60CP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-216-195-01 CABINET (BOTTOM) (MX)
201 3-216-195-11 CABINET (BOTTOM) (E41,SP)
202 3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
203 3-240-561-02 TERMINAL (–), BATTERY
204 A-1098-549-A TUNER BOARD, COMPLETE (MX)
204 A-1098-611-A TUNER BOARD, COMPLETE (E41,SP)
205 2-547-169-01 TERMINAL, ANTENNA
206 1-832-824-21 CABLE, FLEXIBLE FLAT (11 CORE)
207 3-249-551-01 HOLDER (PWB TU)
208 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
209 A-1317-459-A POWER BOARD, COMPLETE
210 3-216-217-01 HOLDER (TRANS) (MX)
210 3-216-217-11 HOLDER (TRANS) (E41,SP)
211 1-832-611-21 CABLE, FLEXIBLE FLAT (21 CORE)
212 A-1317-462-A MAIN BOARD, COMPLETE (MX)
212 A-1319-418-A MAIN BOARD, COMPLETE (SP)
212 A-1319-444-A MAIN BOARD, COMPLETE (E41)
213 A-1317-463-A USB BOARD, COMPLETE
214 A-1317-465-A VOL BOARD, COMPLETE
215 A-1317-460-A HEADPHONE BOARD, COMPLETE
216 3-254-151-01 SCREW (B2.6), (+) P TAPPING
217 3-232-994-01 WASHER
218 1-500-868-11 CORE, FERRITE
0F951 1-532-465-33 FUSE (3.15A/250V)
0J951 1-526-838-11 INLET, AC 2P (- AC IN) (E41,SP)
0J951 1-540-009-11 INLET, AC (- AC IN) (MX)
0T951 1-445-291-11 TRANSFORMER, POWER (MX)
0T951 1-445-292-11 TRANSFORMER, POWER (E41,SP)

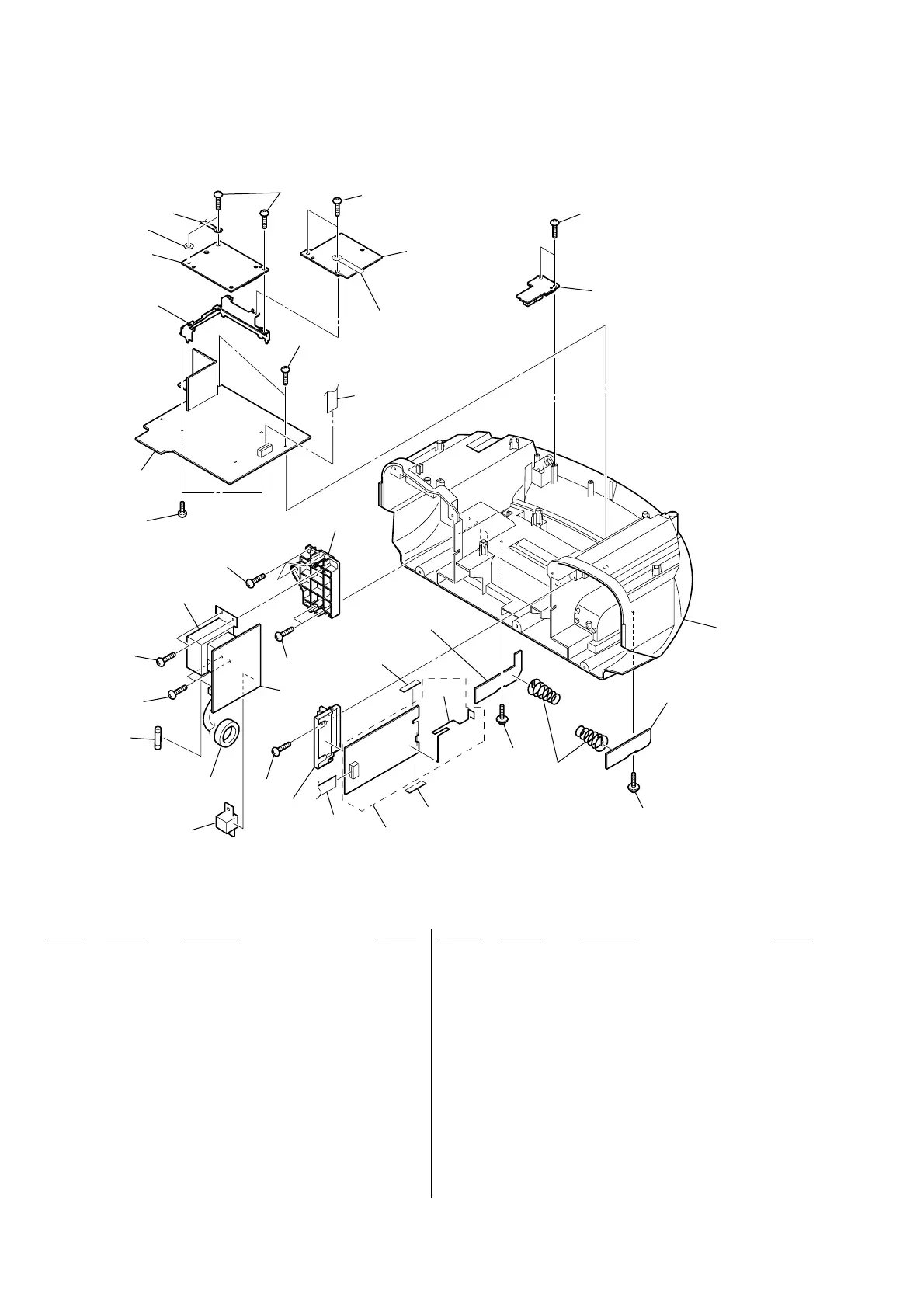

7-5. CABINET (BOTTOM) SECTION
201
203
202
202
204
206
205
207
208218
208
208
208
210
211
213
214
208
216
217
216
208
216
209
215
212
216
F951
J951
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(BATTERY (1) board)
not supplied
(BATTERY (2) board)
T951

Sony CFD-RS60CP Specifications

General

Radio type	Portable
Tuner type	Digital
AM band range	530 - 1611 kHz
FM band range	87.5 - 108 MHz
Backlight	Yes
Product color	Black
Dimensions (WxDxH)	420 x 159 x 260 mm

Weight and Dimensions

Weight	3700 g
