Sony CFS-B5LMK2

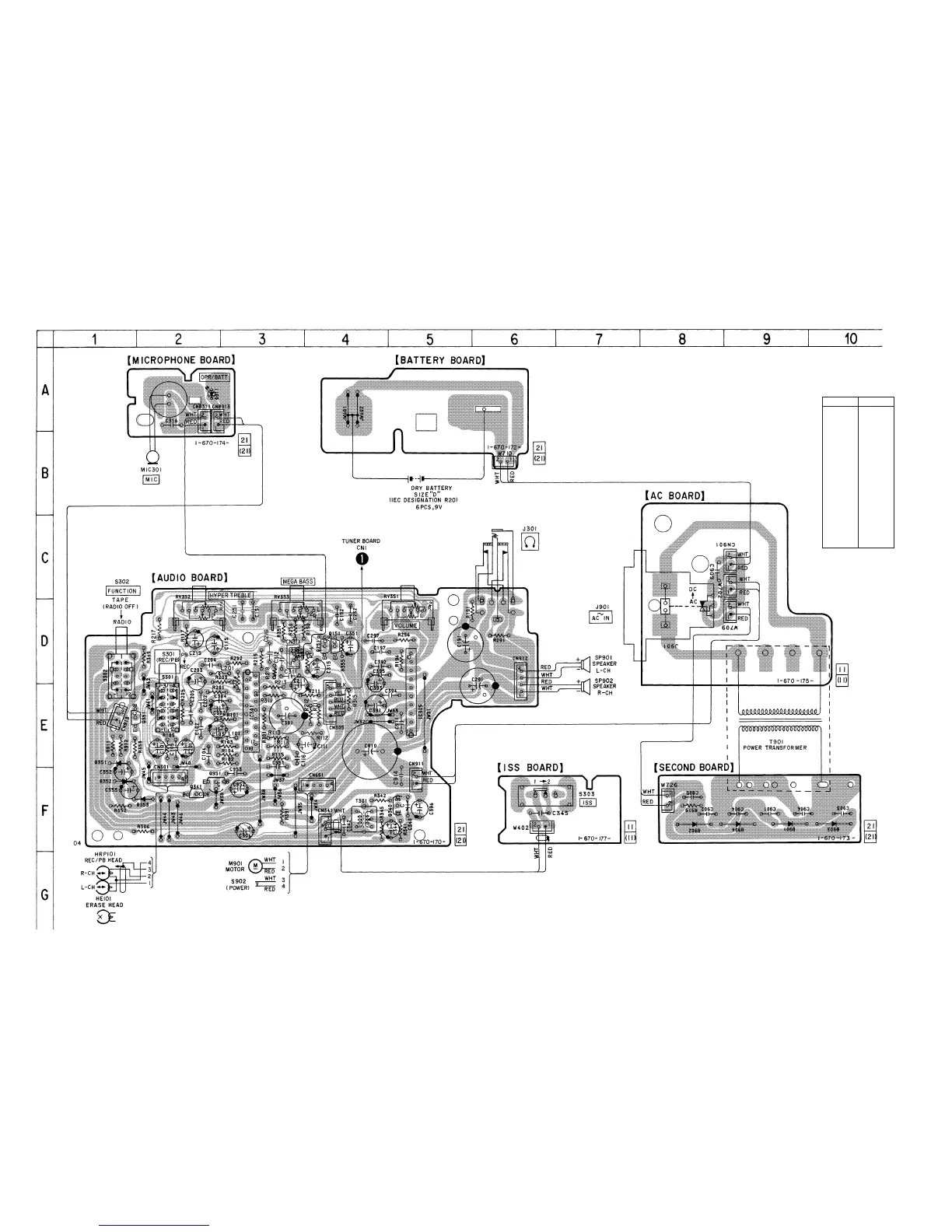

5-5. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 13 for Circuit Boards Location.
CFS-B5LMK2
– 17 – – 18 –
Note:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
• Semiconductor
Location
Ref. No. Location
D351 E-1
D352 F-1
D353 F-2
D901 F-9
D902 F-8
D903 F-10
D904 F-9
D911 A-2
IC301 E-3
IC305 E-5
Q151 D-4
Q251 D-4
Q340 F-5
Q341 F-2
Q351 E-1
Q951 F-2
(Page 14)
