SECTION 6

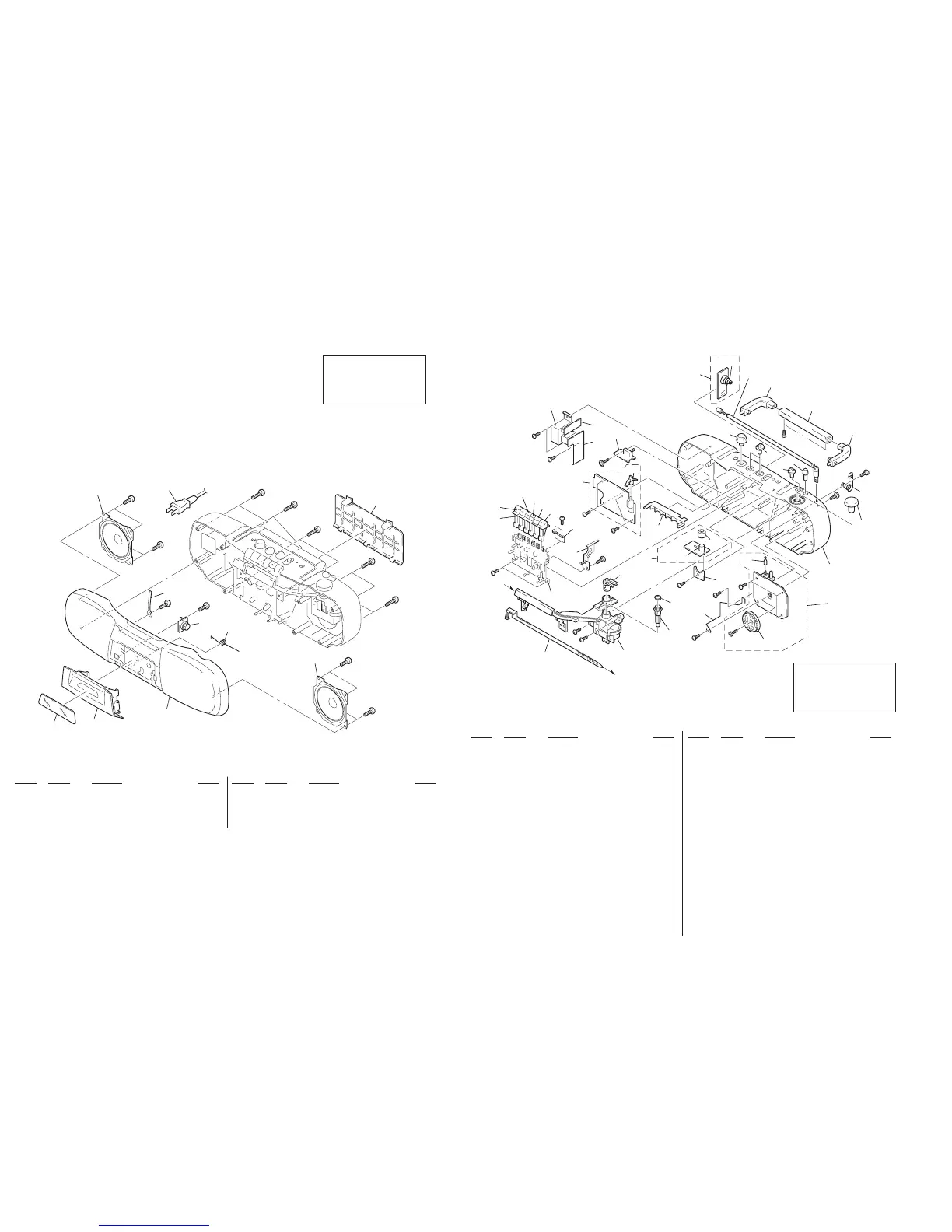

EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
Ref. No. Part No. Description Remark
6-1. CABINET (FRONT) SECTION
N
N
Ref. No. Part No. Description Remark
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
1 X-3375-698-1 CABINET (FRONT) SUB ASSY (B)
2 3-025-531-01 LID, CASSETTE
3 3-025-552-01 WINDOW (CASSETTE)
4 3-025-555-01 SPRING (CASSETTE)
5 3-922-112-31 DAMPER
6 3-917-646-01 LID, BATTERY CASE
! 7 1-769-412-11 CORD, POWER
SP901 1-505-955-11 SPEAKER (10cm) (L-CH)
SP902 1-505-955-11 SPEAKER (10cm) (R-CH)
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
5
4
1
6
7
#2
#1
#1
#1
SP901
not supplied
#1
#2
#2
#2
#1
SP902
#1
#3
2
3
6-2. CABINET (REAR) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
51 3-025-530-01 POINTER
52 3-025-529-01 CHASSIS (TUNE)
53 3-025-545-01 SHAFT (TUNE)
54 3-025-560-01 SPRING (TU)
55 3-025-546-01 SHAFT (FUNCTION)
56 3-025-556-01 SPRING, REC
57 3-025-534-01 BUTTON (REC)
58 3-025-537-01 BUTTON (PLAY)
59 3-025-536-01 BUTTON (REW)
60 3-025-535-01 BUTTON (FF)
61 3-025-538-01 BUTTON (STOP)
62 3-025-533-01 BUTTON (PAUSE)
* 63 1-670-175-11 AC BOARD
* 64 1-670-173-21 SECOND BOARD
* 65 A-3321-332-A AUDIO BOARD, COMPLETE
66 3-025-541-01 LEVER (FUNCTION)
* 67 3-025-550-01 CHASSIS (MD)
* 68 1-670-172-21 BATTERY BOARD
69 3-025-557-01 TERMINAL (–), BATTERY
70 3-025-548-01 HANDLE (SIDE)
71 3-025-549-01 HANDLE (C)
72 3-025-539-01 KNOB (VOL)
73 3-025-540-01 KNOB (TONE)
74 3-025-542-01 KNOB (FUNCTION)
75 3-025-544-01 KNOB (FINE)
76 3-029-701-01 SPRING (+–), TERMINAL COIL
77 3-025-543-01 KNOB (TUNE)
78 3-025-528-01 CABINET (REAR)
* 79 A-3321-335-A TUNER BOARD, COMPLETE
80 3-025-547-01 GEAR (VC)
81 3-025-559-01 TERMINAL, ANTENNA
82 3-025-551-01 CAP (FUNCTION)
* 83 1-670-176-11 SUPPORT BOARD
* 84 1-670-174-21 MICROPHONE BOARD
* 85 3-911-281-01 CUSHION, MIC
* 86 1-670-177-11 ISS BOARD
ANT1 1-501-918-21 ANTENNA, TELESCOPIC
MIC301 1-542-118-11 MICROPHONE, ELECTRET CONDENSER (MIC)
! T901 1-431-917-11 TRANSFORMER, POWER
ANT1
T901
#5
#1
#1
#1
#1
#1
#1
#1
MIC301
#7
#6
#1
#1
#1
not supplied
MF-B5MK2-117
#1
#4
#1
#9
#2
64
63
65
66
86
55
56
57
58
59
60
62
61
52
51
53
54
84
85
83
82
67
72
73
70
70
75
74
76
77
78
79
80
81
71
69
68
A
A
