Sony CFS-B5LMK2

– 23 –

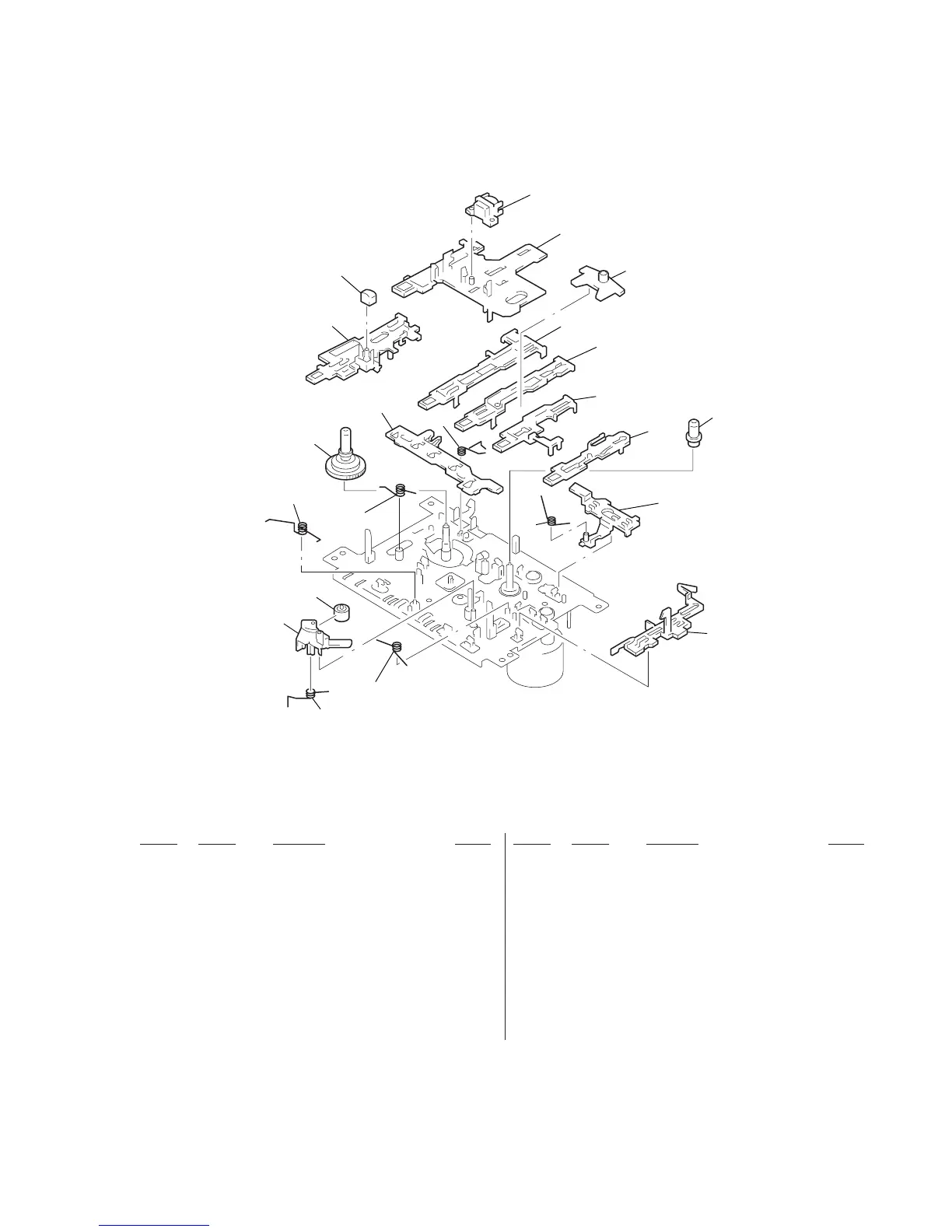

6-3. TAPE MECHANISM DECK SECTION (1)
(MF-B5MK2-117)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-933-010-01 SPRING (S/P), TORSION
102 3-933-025-01 SPRING (P), TORSION
103 3-933-026-01 LEVER (P)
104 3-933-024-01 ROLLER, PINCH
105 3-933-019-01 SPRING (F/R), TORSION
106 3-933-028-01 SPRING (FWD), TORSION
107 3-933-016-01 GEAR (S REEL)
108 3-008-590-01 SLIDER (REC)
109 3-008-592-01 BASE (H), HEAD
* 110 3-008-588-01 SLIDER (REW)
* 111 3-008-589-13 SLIDER (FF)
* 112 3-008-587-01 SLIDER (STOP)
* 113 3-008-591-01 SLIDER (PAUSE)
114 3-933-004-01 CLAW, REEL
* 115 3-933-021-01 SLIDER (FRP)
* 116 3-933-006-01 SLIDER (EJECT)
117 3-934-833-01 SPRING (FRP)
118 3-022-794-02 SPRING (BT)
119 3-933-007-01 PLATE, LOCK
* 120 3-012-114-01 LEVER (FR)
HE101 1-543-876-11 HEAD (ERASE)
HRP101 1-500-454-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
101
102
103
104
105
106
107
108
109
110
120
111
112
113
114
115
116
117
118
119
HRP101
HE101
