– 5 –
• The equipment can be removed using the following procedure.
Set / Cabinet (front) sub assy (B) / Chassis (TUNE) / Tape mechanism block /
Tuner, AC, Second board / Audio, Microphone, ISS board
Note : Follow the disassembly procedure in the numerical order given.

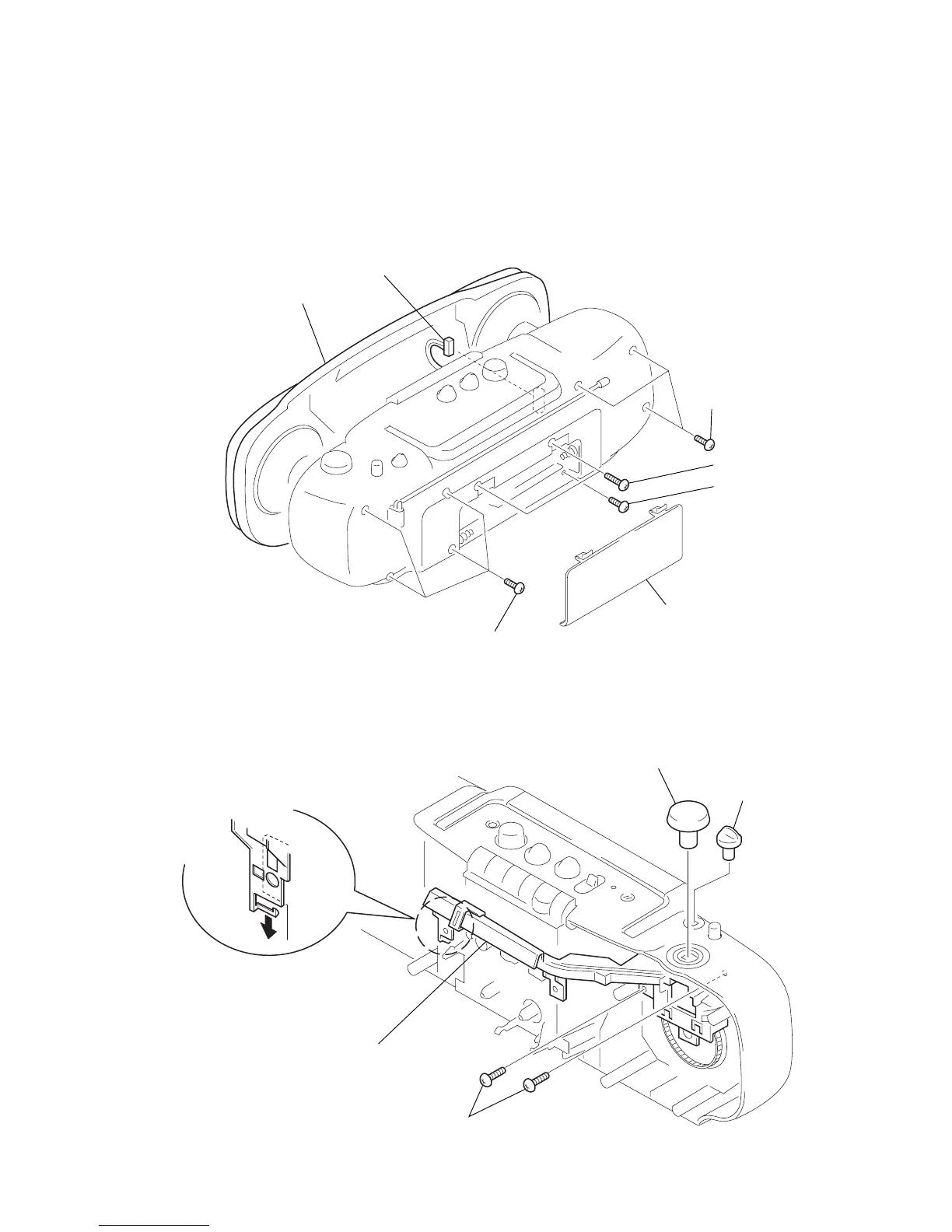

2-1. CABINET (FRONT) SUB ASSY (B)
SECTION 2
DISASSEMBLY
2-2. CHASSIS (TUNE)
2
BVTP 3x12
3
BVTP 3x16
4
BVTP 3x12
5
BVTP 3x12
6
CN912
7
cabinet (front)
sub assy (B)
1
lid, battery case
4
chassis (TUNE)
1
knob (TUNE)
2
knob (FUNCTION)
3
BVTP 3x10
To Next Page
