SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Abbrevation
EA : Saudi Arabia
SP : Singapore
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Color Indication of Appear anceP arts
Example :
KNOB, BALANCE (WHITE).....(RED)
Parts Color Cabinet’s Color
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
n
n
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 19 —

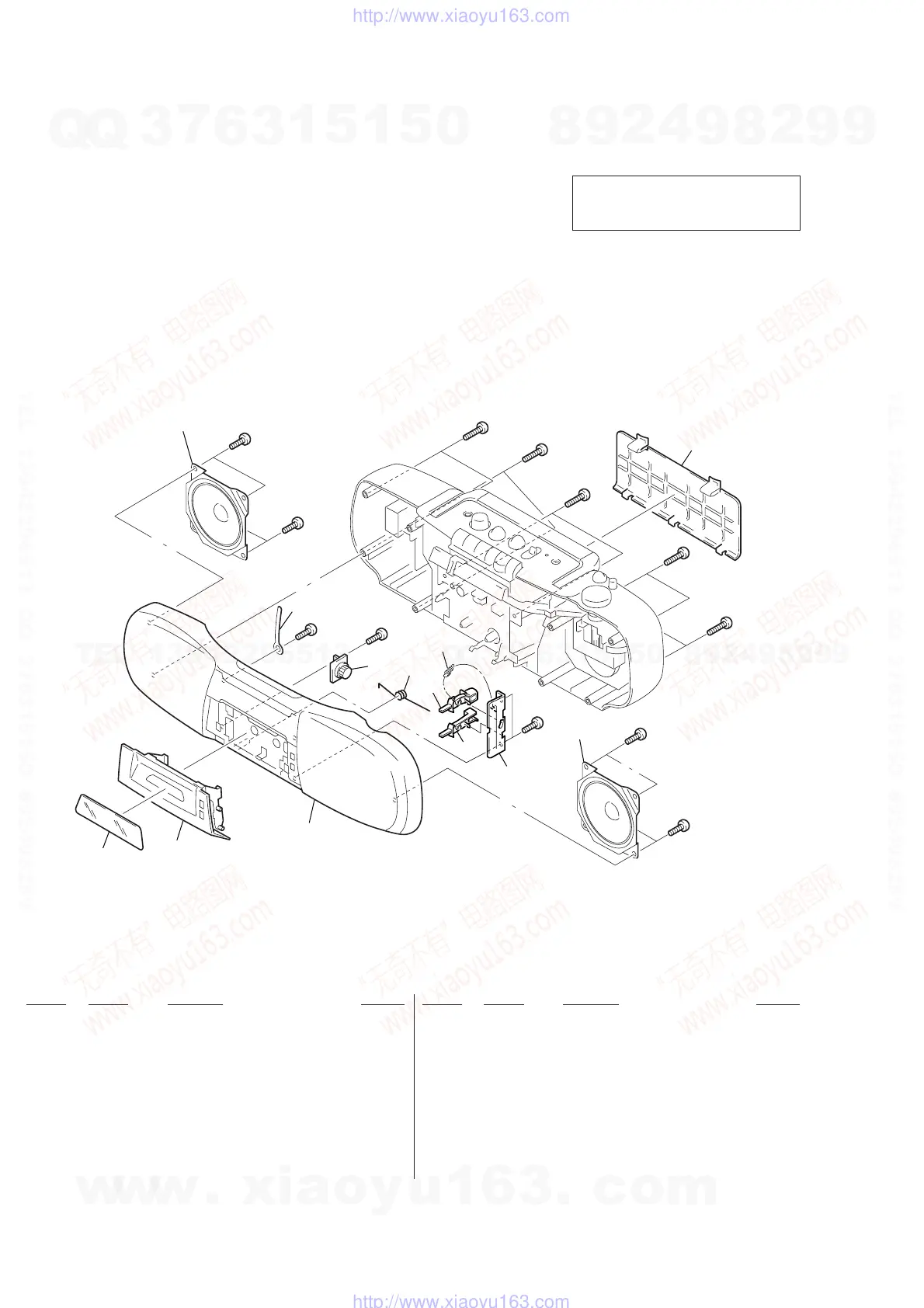

6-1. FRONT CABINET SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
4
5
13
12
11
1
7
#2
#1
#1
#1
#1
SP901
#1
#2
#2
#2
#1
SP902
#1
#3
2
3
not supplied
10
1 X-3376-542-1 CABINET (FRONT) SUB ASSY (BLACK) (EA)
1 X-3376-543-1 CABINET (FRONT) SUB ASSY (RED) (EA)
1 X-3376-544-1 CABINET (FRONT) SUB ASSY (BLACK) (E,SP)
1 X-3376-545-1 CABINET (FRONT) SUB ASSY (RED) (E,SP)
2 3-029-934-01 LID,CASSETTE (BLACK)
2 3-029-934-11 LID,CASSETTE (RED)
3 3-031-224-01 WINDOW, CASSETTE
4 3-025-555-01 SPRING (CASSETTE)
5 3-922-112-11 DAMPER
7 3-917-646-01 LID,BATTERY CASE (BLACK)
7 3-917-646-11 LID,BATTERY CASE (RED)
10 3-029-974-01 CHASSIS (DIR)
11 3-029-973-01 LEVER (MODE) (BLACK)
11 3-029-973-11 LEVER (MODE) (RED)
12 3-029-972-01 LEVER (DIR) (BLACK)
12 3-029-972-11 LEVER (DIR) (RED)
13 3-031-256-01 SPRING (DIR)
SP901 1-505-955-11 SPEAKER (10cm)
SP902 1-505-955-11 SPEAKER (10cm)
