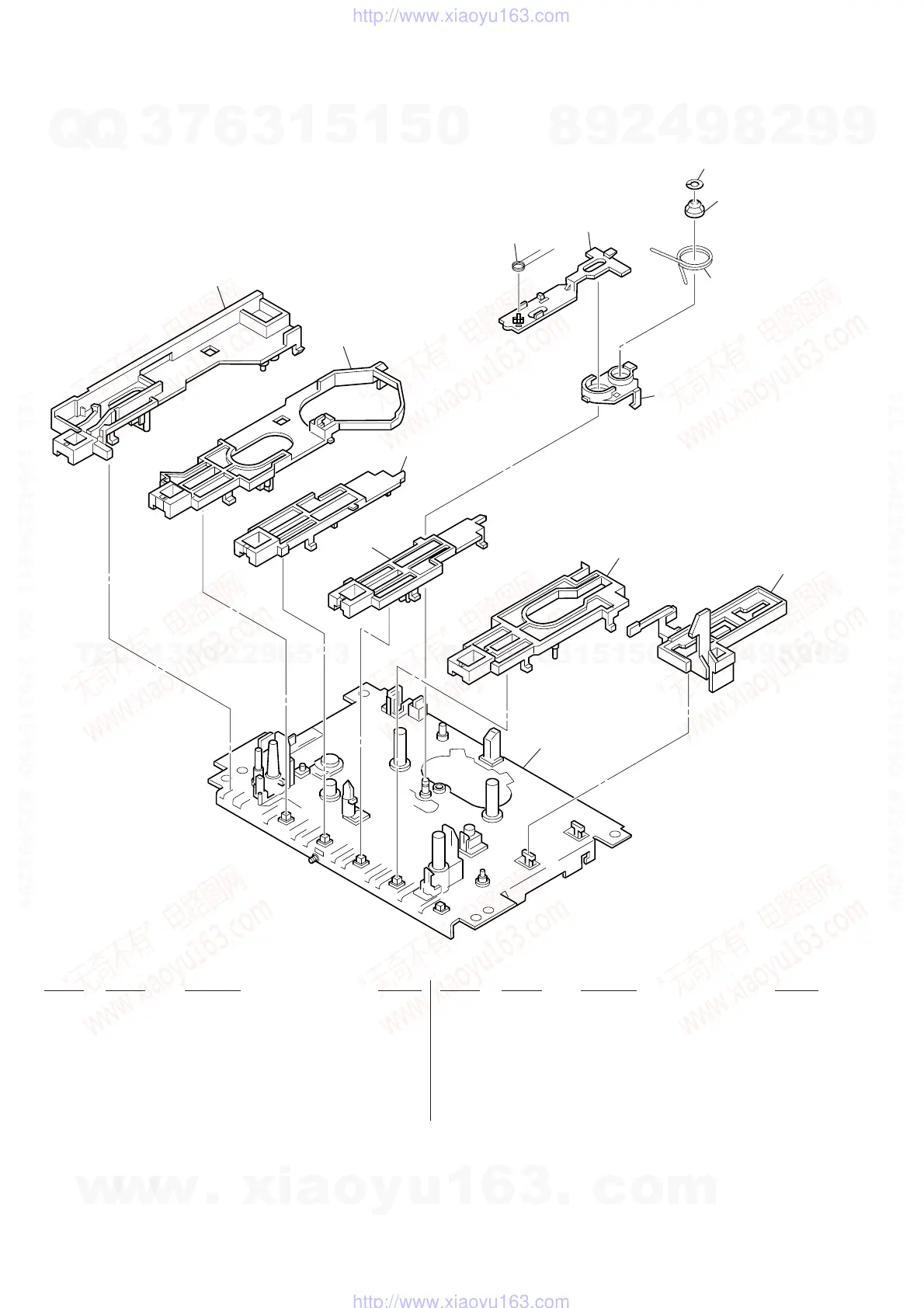

6-6. MECHANISM DECK SECTION (4)
(MF-B7S-148)
257
256
255
253
258
261
262
263
259
260
252
251
254
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 X-3375-503-1 CHASSIS ASSY, MECHANICAL
* 252 3-024-558-01 SLIDER (EJECT)
* 253 3-024-557-01 SLIDER (STOP)
* 254 3-024-572-01 SLIDER (FF)
* 255 3-024-559-01 SLIDER (REW)
* 256 3-024-560-01 SLIDER (FWD)
* 257 3-024-573-01 SLIDER (REC)
258 3-024-588-01 LEVER (FW), ID
259 3-027-181-01 SLIDER (FR)
260 3-027-069-01 SPRING (FRW), TORSION
261 3-024-975-01 SPRING (IDLER LEVER), TORSION
262 3-024-984-01 SPRING (K), COMPRESSION
263 3-321-483-11 RING, RETAINING
