Sony CFS-B7SMK2 - Schematic Diagram -Tuner Section

CFS-B7SMK2
— 13 — — 14 —

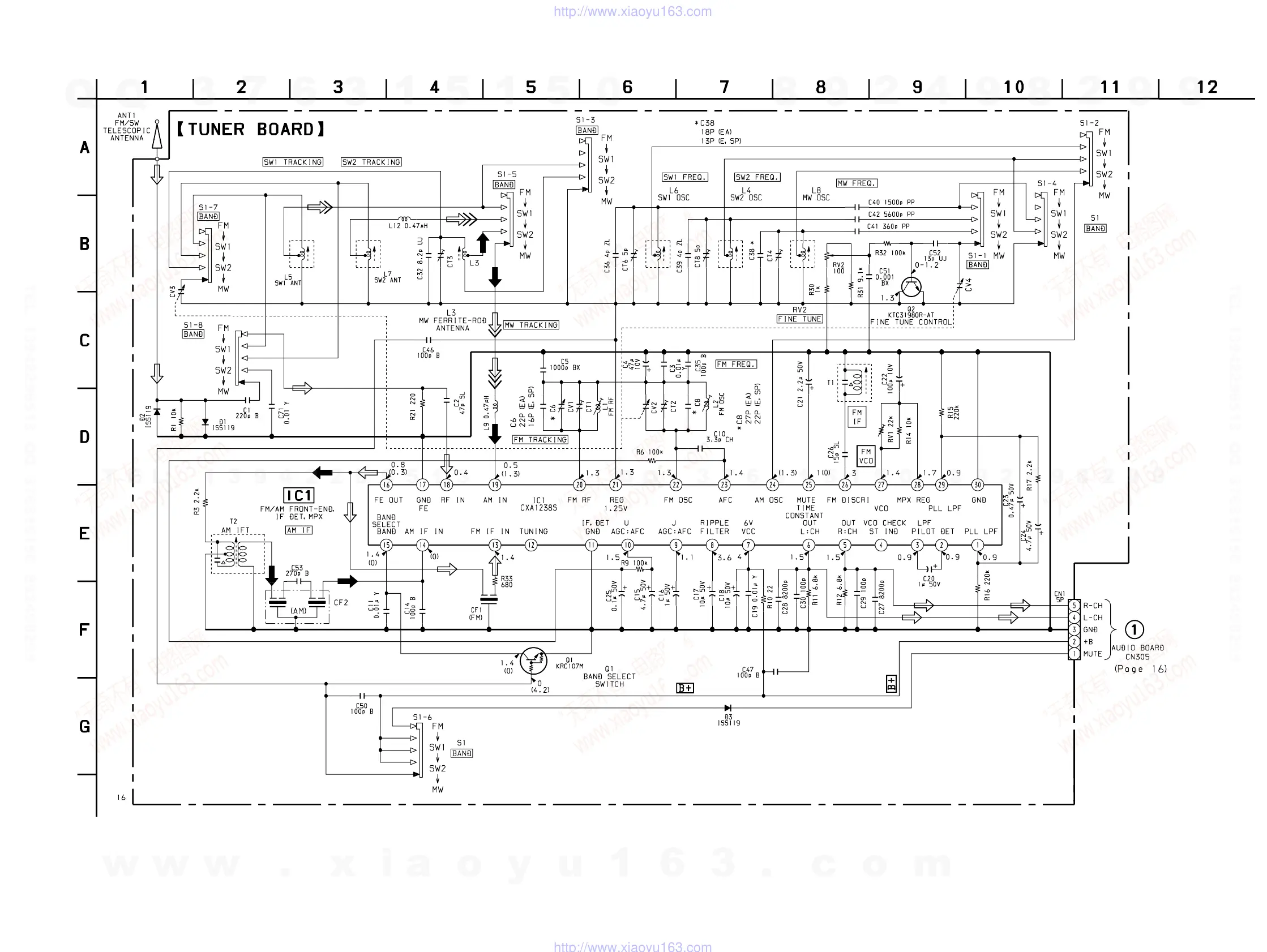

5-3. SCHEMATIC DIAGRAM – TUNER SECTION –
• Refer to page 11 for IC BLOCK DIAGRAM.
