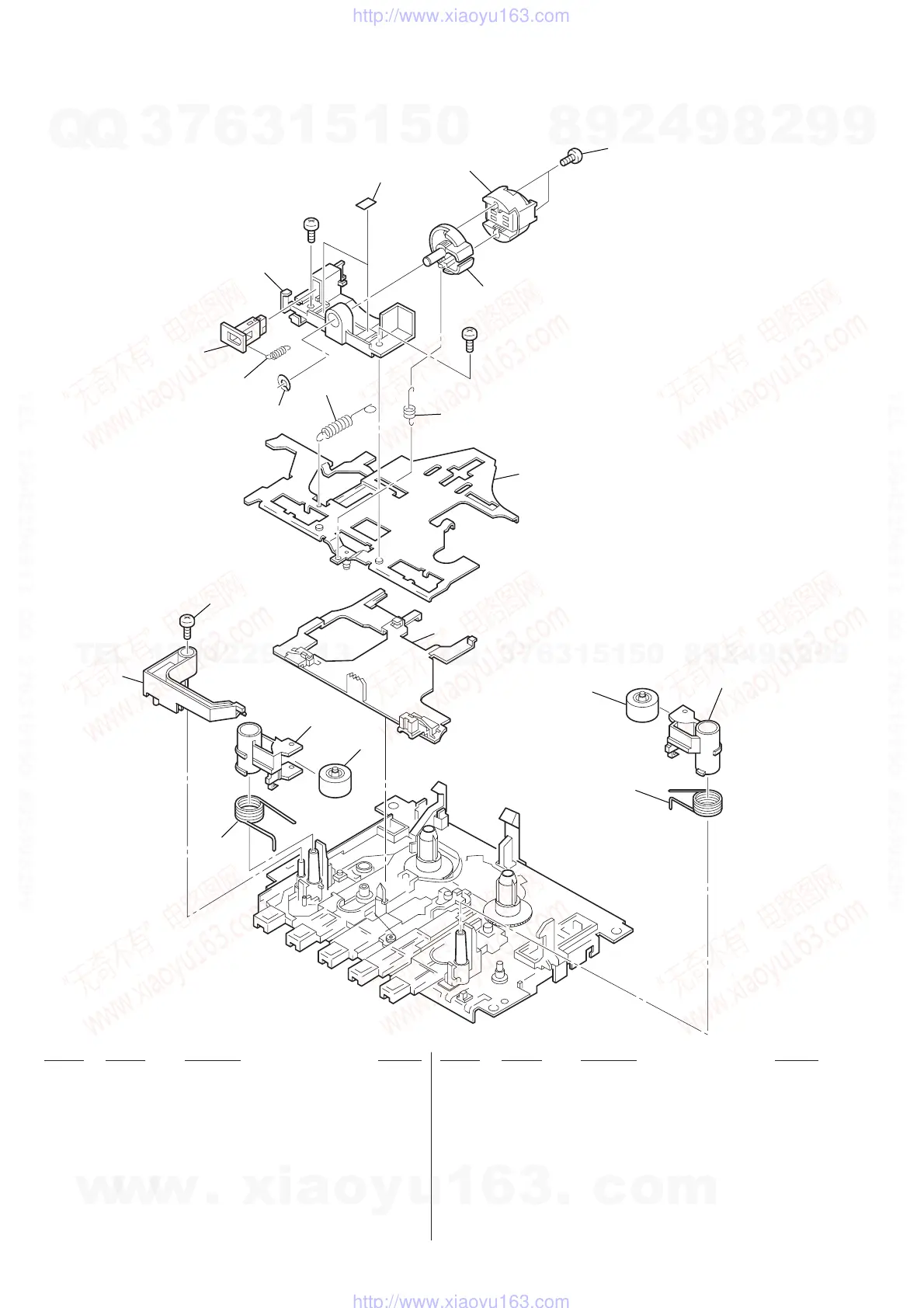

6-4. MECHANISM DECK SECTION (2)
(MF-B7S-148)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
155
152
154
158
152
151
157
156
160
159
161
164
165
167
163
162
166
153
HRP901
HE901
#7
#7
151 3-024-979-01 SPRING (PINCH R), TORSION
152 3-933-024-01 ROLLER, PINCH
153 3-024-575-01 ARM(R), PINCH
154 3-024-978-01 SPRING (PINCH N), TORSION
155 3-024-574-01 ARM(F), PINCH
156 3-024-596-01 ARM, EBF
157 3-034-575-01 SCREW
158 3-024-609-01 SLIDER, D
159 X-3375-504-1 CHASSIS ASSY, HEAD
160 3-024-987-01 SPRING, TENSION
161 3-024-988-01 SPRING, TENSION
162 X-3375-582-1 TABLE ASSY, HEAD
163 X-3375-581-1 HOLDER ASSY, HD
164 3-309-597-91 SCREW (1.4), TAPPING
165 3-386-150-01 RING (ROLLER), RETAINING
166 3-313-850-03 SPRING, TENSION
* 167 3-377-197-21 SHEET (AZ)
HE901 1-500-338-11 HEAD, MAGNETIC (ERASE)
HRP901 1-543-872-11 HEAD, MAGNETIC (REC/PB)
