— 20 —

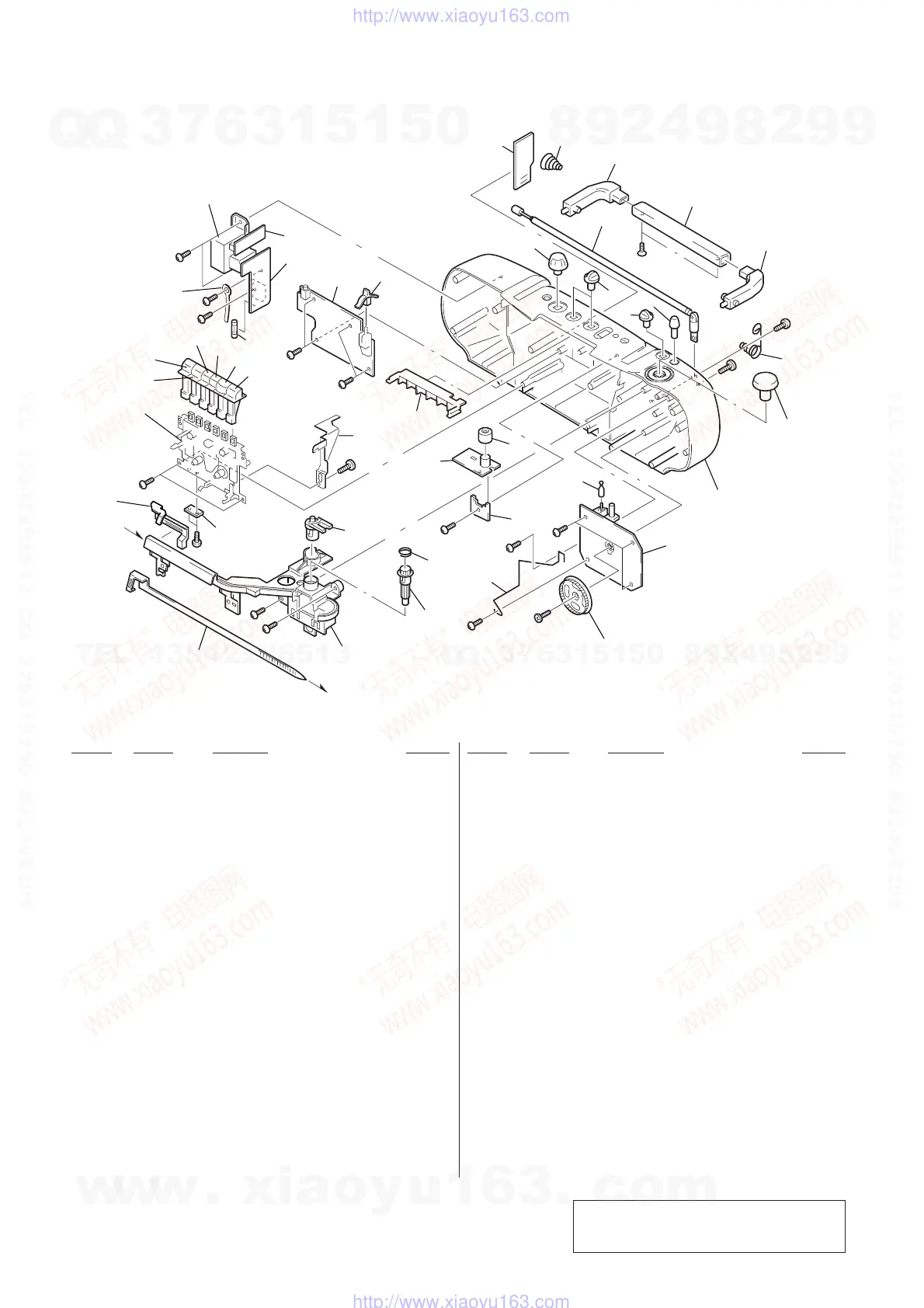

6-2. REAR CABINET SECTION
T901
#1
#1
#1
#1
#1
#1
#1
#9
#6
not supplied
#10
ANT1
not supplied
not supplied
#1
#1
#1
#1
#1
#8
MF-B7S-148
#1
64
63
65
66
59
58
57
55
88
86
51
53
54
84
85
83
82
67
72
73
70
87
70
75
74
76
77
78
79
80
81
71
68
60
62
61
A
A
#4
F901
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
51 3-025-530-01 POINTER
53 3-025-545-01 SHAFT (TUNE)
54 3-025-560-01 SPRING (TU)
55 3-025-546-01 SHAFT (FUNCTION)
57 3-025-534-01 BUTTON (REC)
58 3-025-537-01 BUTTON (PLAY)
59 3-025-536-11 BUTTON (REW)
60 3-025-535-11 BUTTON (FF)
61 3-025-538-01 BUTTON (STOP)
62 3-025-533-01 BUTTON (PAUSE)
* 63 1-670-178-11 AC BOARD
* 64 1-670-173-11 SECOND BOARD
* 65 A-3321-464-A AUDIO BOARD
66 3-025-541-01 LEVER (FUNCTION) (BLACK)
66 3-025-541-11 LEVER (FUNCTION) (RED)
67 3-025-550-01 CHASSIS (MD)
* 68 1-670-172-11 BATT BOARD
70 3-025-548-01 HANDLE (SIDE)
71 3-025-549-01 HANDLE (C) (BLACK)
71 3-025-549-11 HANDLE (C) (RED)
72 3-025-539-21 KNOB(VOLUME)
73 3-025-540-21 KNOB(HYPER TREBLE/MEGA BASS)
74 3-025-542-01 KNOB(BAND) (BLACK)
74 3-025-542-11 KNOB(BAND) (RED)
75 3-025-544-01 KNOB(FINE TUNE) (BLACK)
75 3-025-544-11 KNOB(FINE TUNE) (RED)
76 3-029-701-01 SPRING (+-), TERMINAL COIL
77 3-025-543-01 KNOB(TUNE) (BLACK)
77 3-025-543-11 KNOB(TUNE) (RED)
78 3-025-528-61 CABINET (REAR) (BLACK)
78 3-025-528-71 CABINET (REAR) (RED)
* 79 A-3321-465-A TUNER BOARD (E,SP)
* 79 A-3321-471-A TUNER BOARD (EA)
80 3-025-547-01 GEAR(VC)
81 3-025-559-01 TERMINAL, ANTENNA
82 3-025-551-01 CAP(FUNCTION)
* 83 1-670-179-11 SUPPORT BOARD
* 84 1-670-174-11 MIC BOARD
* 85 3-911-281-01 CUSHION, MIC
86 3-029-997-01 INDICATOR
87 3-025-557-01 TERMINAL (-), BATTERY
* 88 1-672-614-11 RELAY BOARD
ANT1 1-501-918-11 ANTENNA, TELESCOPIC
! F901 1-532-149-31 FUSE,0.125A 250V
! T901 1-431-916-11 TRANSFORMER, POWER
