@ HCD-H/11 is the tuner deck, CD and
amplifier section in CHC-P11.
@ HCD-H11J is the tuner deck, CD and
amplifier section in CHC-P11J.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol 00 are trademarks of
Dolby Laboratories Licensing Corporation.
CD player section
System Compact disc digital audio
system
Semiconductor laser
(A =780nm)
Emission duration :
continuous
Max 44.6uW*
*This output is the value measured at
a distance of 200 mm from the ob-
jective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Laser
Laser output
Wavelength 780-790 nm
Frequency response
2Hz — 20kHz
Signal-to-noise ratio
More than 65 dB
Dynamic range ,
More than 97 dB
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
Except East European model :
87.5 - 108.0MHz (50kHz step)
HCD-H11/H11J

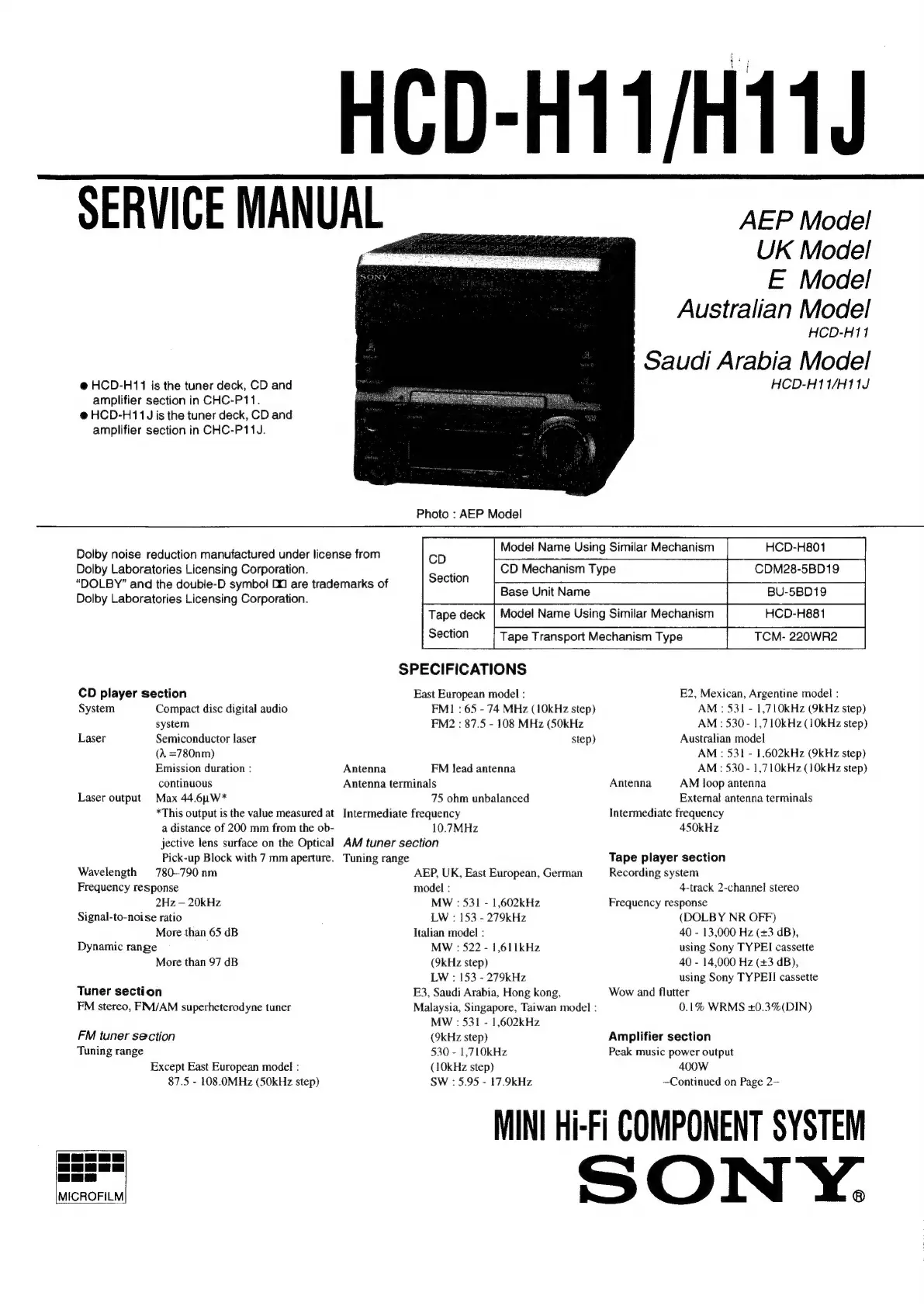

SERVICE MANUAL
Photo : AEP Model
AEP Model
UK Model
E Model
Australian Model
HCD-H11
Saudi Arabia Model
HCD-H11/H11d
cD
Section
SPECIFICATIONS
East European model :
FM1 : 65 - 74 MHz (10kHz step)
FM2 : 87.5 - 108 MHz (SOkHz
step)
Antenna FM lead antenna
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7MHz
AM tuner section
Tuning range
AEP, UK, East European, German
model :
MW : 531 - 1,602kHz
LW : 153 - 279kHz
Italian model :
MW : 522 - 1,611kHz
(9kHz step)
LW : 153 - 279kHz
E3, Saudi Arabia, Hong kong,
Malaysia, Singapore, Taiwan model :
MW : 531 - 1,602kHz
(9kHz step)
530 - 1,710kHz
(1OkHz step)
SW : 5.95 - 17.9kHz
Model Name Using Similar Mechanism HCD-H801
CD Mechanism Type CDM28-5BD19
Base Unit Name BU-5BD19
Tape deck | Model Name Using Similar Mechanism HCD-H881
Section Tape Transport Mechanism Type TCM- 220WR2
E2, Mexican, Argentine model :
AM : 531 - 1,710kHz (9kHz step)
AM : 530- 1,710kHz (10kHz step)
Australian model
AM : 531 - 1,602kHz (9kHz step)
AM: 530- 1,710kHz (10kHz step)
AM loop antenna
External antenna terminals
Intermediate frequency
450kHz
Antenna
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
40 - 13,000 Hz (+3 dB),
using Sony TYPEI cassette
40 - 14,000 Hz (+3 dB),
using Sony TYPEII cassette
Wow and flutter
0.1% WRMS +0.3%(DIN)
Amplifier section
Peak music power output
400W
