Sony CHC-P11 - Audio Section Schematics

NOTE:
@ Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.

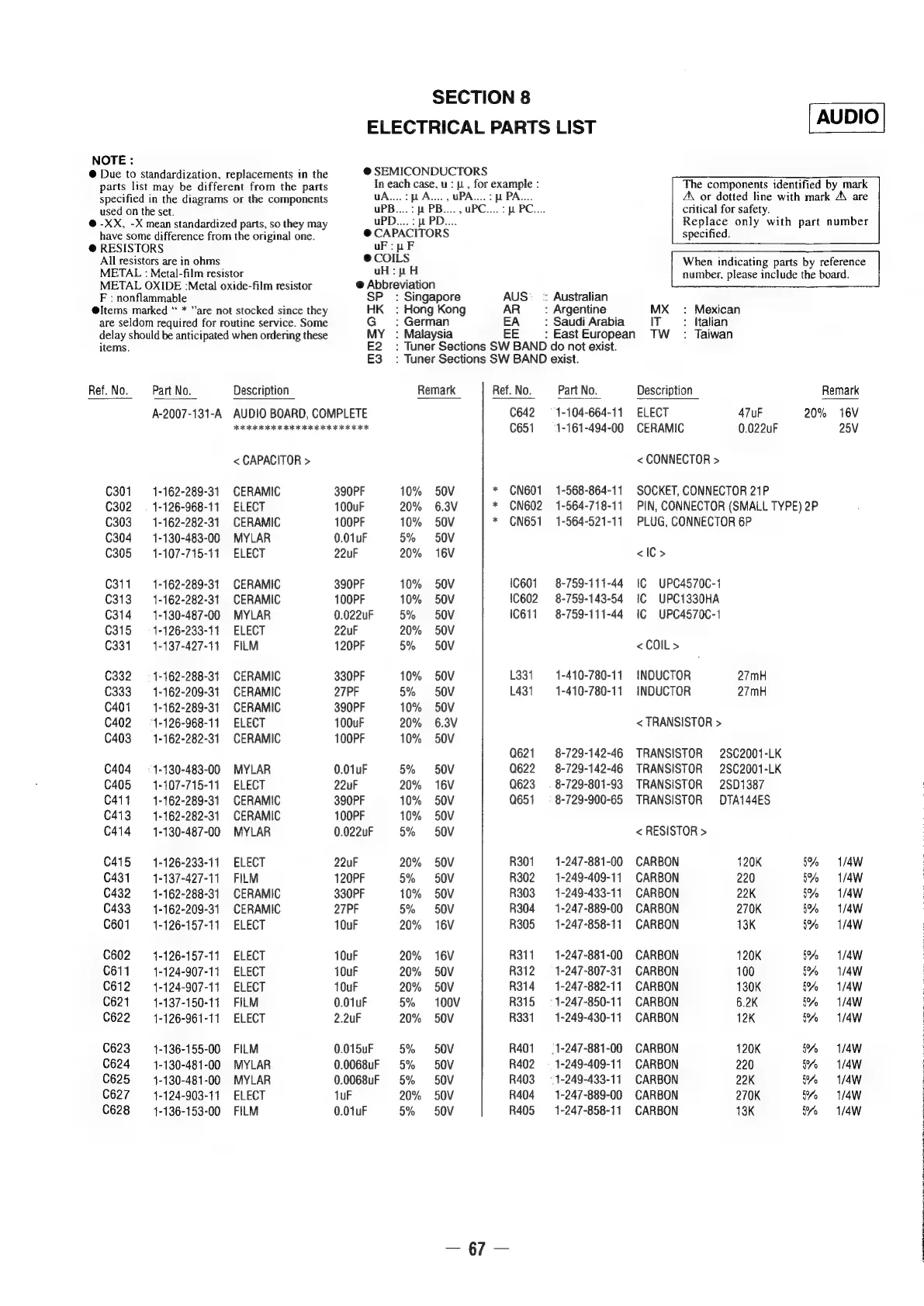

SECTION 8
ELECTRICAL PARTS LIST
@ SEMICONDUCTORS
In each case, u: p , for example :
uA... JIA... , UPA... PAL...
uPB....: 1 PB... ,uPC.... : 1 PC...
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
@ -XX, -X mean standardized parts, so they may uPD.... : 1 PD.... Replace only with part number
have some difference from the original one. @ CAPACITORS specified.
@ RESISTORS uF : pF
All resistors are in ohms ®@ COILS When indicating parts by reference
METAL : Metal-film resistor uH: WH number, please include the board.
METAL OXIDE :Metal oxide-film resistor @ Abbreviation
F : nonflammable : Singapore AUS _ : Australian
@ltems marked * * "are not stocked since they HK: Hong Kong AR : Argentine MX: Mexican
are seldom required for routine service. Some Gs: German EA : Saudi Arabia IT —: Italian
delay should be anticipated when ordering these MY : Malaysia EE : East European TW =: Taiwan
items. E2_ : Tuner Sections SW BAND do not exist.
E3_ : Tuner Sections SW BAND exist.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-2007-131-A AUDIO BOARD, COMPLETE C642 ~=—s- 1-104-664-11 ELECT 47uF 20% 16V
JESS SISICI III CII IOI ICI RR C651 =: 1-161-494-00 CERAMIC 0.022uF 25V
< CAPACITOR > < CONNECTOR >
C301 = 1-162-289-31 CERAMIC 390PF 10% 50V * CN601 1-568-864-11 SOCKET, CONNECTOR 21P
C302 = 1-126-968-11 ELECT 100uF 20% 6.3V * CN602 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P
C303 = 1-162-282-31 CERAMIC 100PF 10% 50V * CN651 1-564-521-11 PLUG, CONNECTOR 6P
C304 ~—-1-130-483-00 MYLAR 0.01 uF 5% 50V
C305 ~—-1-107-715-11 ELECT 22uF 20% 16V <IC>
C311 1-162-289-31 CERAMIC 390PF 10% 50V {C601 8-759-111-44 IC UPC4570C-1
C313 1-162-282-31 CERAMIC 100PF 10% 50V 1C602 8-759-143-54 IC UPC1330HA
C314 ~—-1-130-487-00 MYLAR 0.022uF 5% 50V IC611 8-759-111-44 IC UPC4570C-1
C315 = 1-126-233-11. ELECT 22uF 20% 50V
C331 1-137-427-11 FILM 120PF 5% 50V < COIL >
C332 = 1-162-288-31 CERAMIC 330PF 10% 50V L331 1-410-780-11 INDUCTOR 27mH
C333 —_1-162-209-31 CERAMIC 27PF 5% 50V L431 1-410-780-11 INDUCTOR 27mH
C401 1-162-289-31 CERAMIC 390PF 10% 50V
C402 =: 1-126-968-11 ELECT 100uF 20% 6.3V < TRANSISTOR >
C403 1-162-282-31 CERAMIC 100PF 10% 50V
Q621 8-729-142-46 TRANSISTOR 2SC2001-LK
C404 ~—- 1-130-483-00 MYLAR 0.01uF 5% 50V Q622 8-729-142-46 TRANSISTOR 2SC2001-LK
C405 = 1-107-715-11 ELECT 22uF 20% 16V Q623 = 8-729-801-93 TRANSISTOR 2SD1387
C411 1-162-289-31 CERAMIC 390PF 10% 50V Q651 = 8-729-900-65 TRANSISTOR DTA144ES
C413 ~—-1-162-282-31 CERAMIC 100PF 10% 50V
C414 ~—-1-130-487-00 MYLAR 0.022uF 5% 50V < RESISTOR >
C415 = 1-126-233-11 ELECT 22uF 20% 50V R301 1-247-881-00 CARBON 120K 5% 1/4W
C431 1-137-427-11 FILM 120PF 5% 50V R302 —-1-249-409-11 CARBON 220 5% 1/4W
C432 = 1-162-288-31 CERAMIC 330PF 10% 50V R303 —-1-249-433-11 CARBON 22K % 1/4W
C433 = 1-162-209-31 CERAMIC 27PF 5% 50V R304 =1-247-889-00 CARBON 270K i% 1/4W
C601 1-126-157-11 ELECT 10uF 20% 16V R305 —-1-247-858-11 CARBON 13K % 1/4W
C602 = 1-126-157-11 ELECT 10uF 20% 16V R311: 1-247-881-00 CARBON 120K i I1/4W
C611 1-124-907-11 ELECT 40uF 20% 50V R312 = 1-247-807-31 CARBON 100 % 1/4W
C612 1-124-907-11. ELECT 10uF 20% 50V R314 = 1-247-882-11 CARBON 130K % 1/4W
C621 1-137-150-11. FILM 0.01uF 5% 100V R315 = 1-247-850-11 CARBON 6.2K m% 1/4W
C622 1-126-961-11 ELECT 2.2uF 20% 50V R331 1-249-430-11. CARBON 12K % 1/4W
C623 1-136-155-00 FILM 0.015uF 5% 50V R401 —- 1-247-881-00 CARBON 120K % 1/4W
C624 1-130-481-00 MYLAR 0.0068uF 5% 50V R402 = 1-249-409-11 CARBON 220 % 1/4W
C625 1-130-481-00 MYLAR 0.0068uF 5% 50V R403 —- 1-249-433-11 CARBON 22K % 1/4W
C627 1-124-903-11 ELECT 1uF 20% 50V R404 —-1-247-889-00 CARBON 270K io 1/4W
C628 1-136-153-00 FILM 0.01uF 5% 50V R405 = 1-247-858-11 CARBON 13K % 1/4W
|
‘
