Sony CHC-P11 - TC Mechanism Section-2

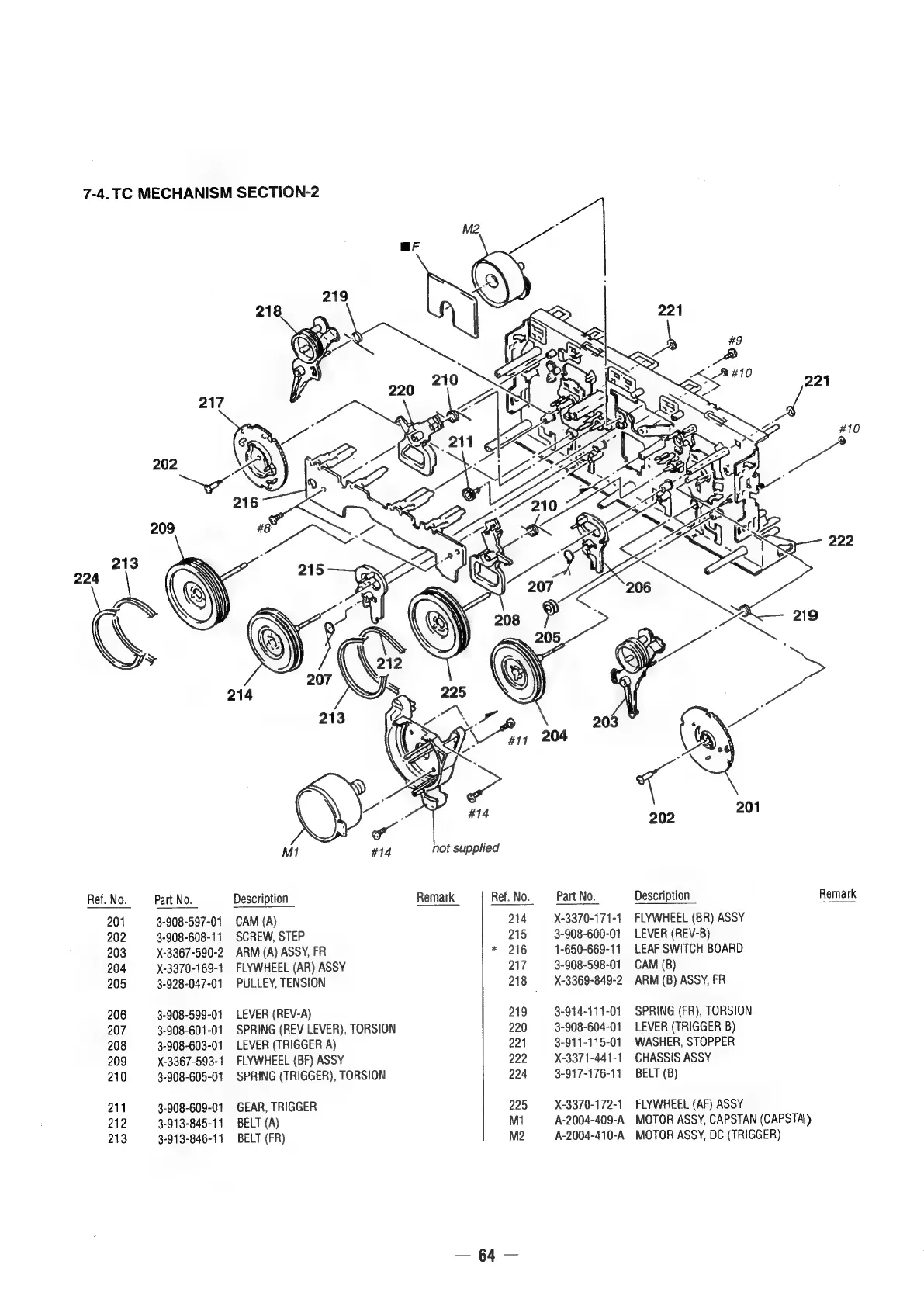

7-4. TC MECHANISM SECTION-2
Ref. No. Part No. Description
201 3-908-597-01 CAM (A)
202 3-908-608-11 SCREW, STEP
203 X-3367-590-2 ARM (A) ASSY, FR
204 X-3370-169-1 FLYWHEEL (AR) ASSY
205 3-928-047-01 PULLEY, TENSION
206 3-908-599-01 LEVER (REV-A)
207 3-908-601-01 SPRING (REV LEVER), TORSION
208 3-908-603-01 LEVER (TRIGGER A)
209 X-3367-593-1 FLYWHEEL (BF) ASSY
210 3-908-605-01 SPRING (TRIGGER), TORSION
211 3-908-609-01 GEAR, TRIGGER
212 3-913-845-11 BELT (A)
213 3-913-846-11 BELT (FR)
GF
Remark Ref. No. Part No. Description Remark
214 X-3370-171-1 FLYWHEEL (BR) ASSY
215 3-908-600-01 LEVER (REV-B)
* 216 1-650-669-11 LEAF SWITCH BOARD
217 —-3-908-598-01 CAM (B)
218 X-3369-849-2 ARM (B) ASSY, FR
219 3-914-111-01 SPRING (FR), TORSION
220 3-908-604-01 LEVER (TRIGGER B)
221 3-911-115-01 WASHER, STOPPER
222 X-3371-441-1 CHASSIS ASSY
224 3-917-176-11 BELT (B)
225 X-3370-172-1 FLYWHEEL (AF) ASSY
Mi A-2004-409-A MOTOR ASSY, CAPSTAN (CAPSTAI)
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)
