Sony CHC-P11 - GENERAL INFORMATION; Index to Parts and Controls

SECTION 2
GENERAL
ee |

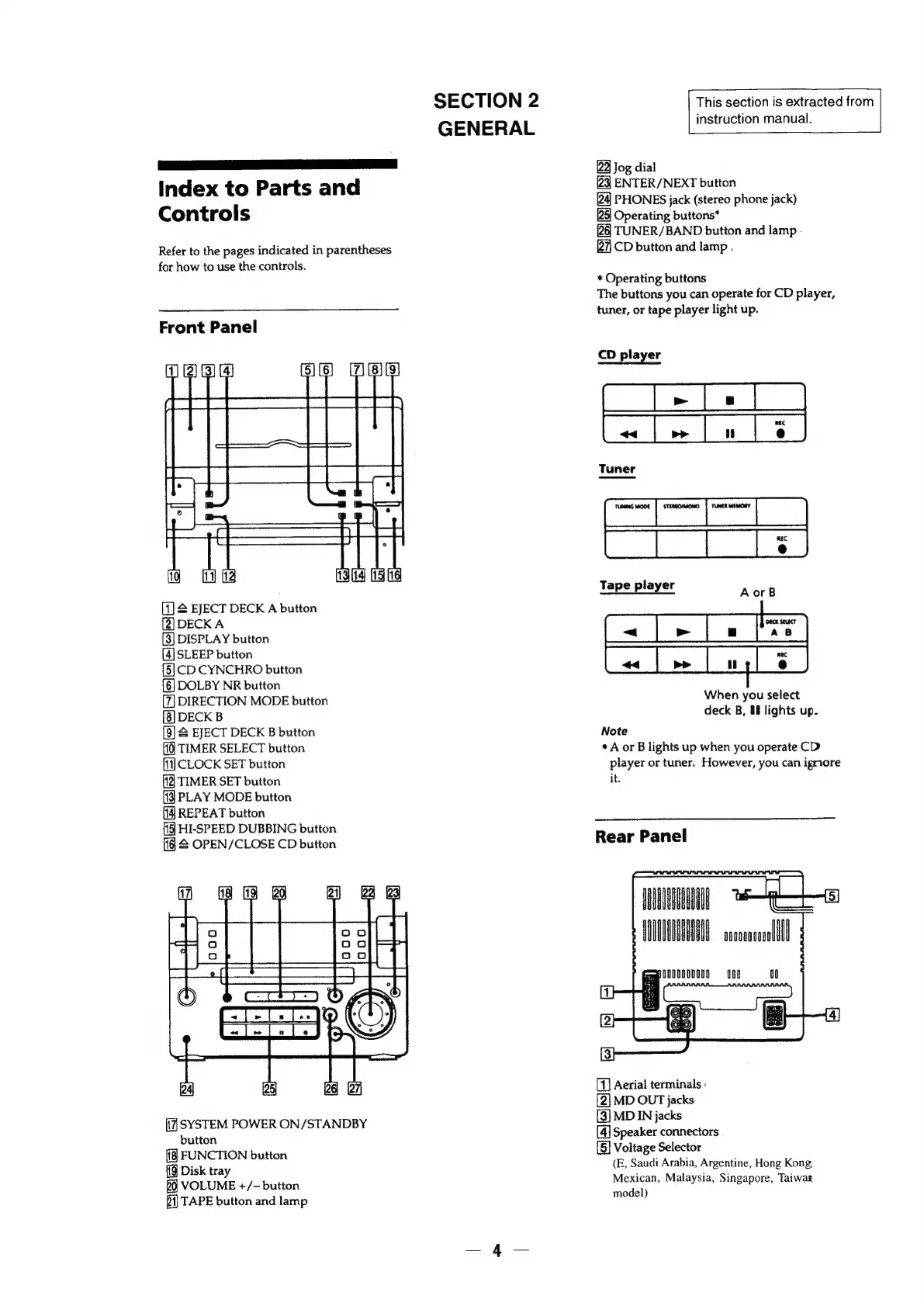

Index to Parts and
Controls
Refer to the pages indicated in parentheses
for how to use the controls.
Front Panel
EJECT DECK A button
[2] DECK A
[3] DISPLAY button
SLEEP button
{5]CD CYNCHRO button
{6} DOLBY NR button
[7] DIRECTION MODE button
DECK B
[9] & EJECT DECK B button
9
TIMER SELECT button
CLOCK SET button
TIMER SET button
PLAY MODE button
REPEAT button
HI-SPEED DUBBING button
(i & OPEN/CLOSE CD button
SYSTEM POWER ON/STANDBY
button
(i§] FUNCTION button
Disk tray
2 VOLUME +/- button
i) TAPE button and lamp
This section is extracted fr
instruction manual.
‘a
Jog dial
ENTER/NEXT button
(24 PHONES jack (stereo phone jack)
25| Operating buttons”
TUNER/BAND button and lamp -
27] CD button and lamp .
* Operating buttons
The buttons you can operate for CD player,
tuner, or tape player light up.
CD player
When you select
deck B, U2 lights up.
Note
¢ A or B lights up when you operate CD
player or tuner. However, you can ignore
it.
Rear Panel
Geer CO00000000 00 00
[1] Aerial terminals :
[2] MD OUT jacks
[3] MD IN jacks
[4] Speaker connectors
[5] Voltage Selector
(E, Saudi Arabia, Argentine, Hong Kong,
Mexican, Malaysia, Singapore, Taiwan
model)
