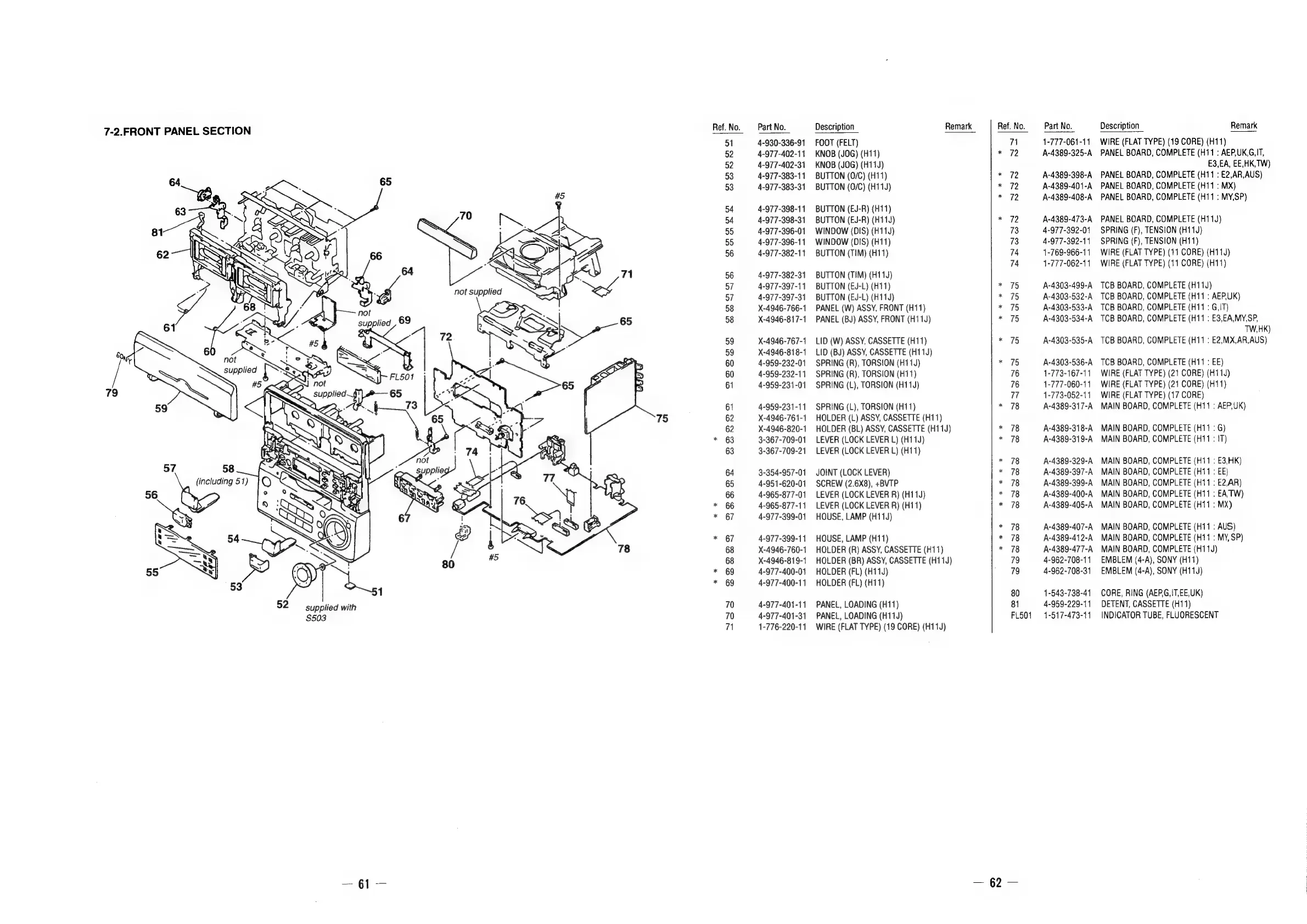

7-2.FRONT PANEL SECTION
57
(including 51)
56
supplied with
S503
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-930-336-91 FOOT (FELT) 71 1-777-061-11 WIRE (FLAT TYPE) (19 CORE) (H11)
52 4-977-402-11 KNOB (JOG) (H11) * 72 A-4389-325-A PANEL BOARD, COMPLETE (H11 : AER.UK,G,IT,
52 4-977-402-31 KNOB (JOG) (H11J) E3,EA, EE,HK,TW)
53 4-977-383-11 BUTTON (0/C) (H11) * 72 A-4389-398-A PANEL BOARD, COMPLETE (H11 : £2,AR,AUS)
53 4-977-383-31 BUTTON (O/C) (H11J} * 72 A-4389-401-A PANEL BOARD, COMPLETE (H11 : MX)
* 72 A-4389-408-A PANEL BOARD, COMPLETE (H11 : MY,SP)
54 4-977-398-11 BUTTON (EJ-R) (H11)
54 4-977-398-31 BUTTON (EJ-R) (H11J) * 72 A-4389-473-A PANEL BOARD, COMPLETE (H11J)
55 4-977-396-01 WINDOW (DIS) (H11J) 73 4-977-392-01 SPRING (F), TENSION (H11J)
55 4-977-396-11 WINDOW (DIS) (H11) 73 4-977-392-11 SPRING (F), TENSION (H11)
56 4-977-382-11 BUTTON (TIM) (H11) 74 1-769-966-11 WIRE (FLAT TYPE) (11 CORE) (H11J)
74 4-777-062-11 WIRE (FLAT TYPE) (11 CORE) (H11)
56 4-977-382-31 BUTTON (TIM) (H11u)
57 4-977-397-11 BUTTON (EJ-L) (H11) * 75 A-4303-499-A TCB BOARD, COMPLETE (H11J)
57 4-977-397-31 BUTTON (EJ-L) (H11J) * 75 A-4303-532-A TCB BOARD, COMPLETE (H11 : AERUK)
58 X-4946-766-1 PANEL (W) ASSY, FRONT (H11) * 75 A-4303-533-A TCB BOARD, COMPLETE (H11 : G,IT)
58 X-4946-817-1 PANEL (BJ) ASSY, FRONT (H11J) * 75 A-4303-534-A TCB BOARD, COMPLETE (H11 : E3,EA,MY,SP,
TW,HK)
59 X-4946-767-1 LID (W) ASSY, CASSETTE (H11) * 75 A-4303-535-A TCB BOARD, COMPLETE (H11 : E2,MX,AR,AUS)
59 X-4946-818-1 LID (BU) ASSY, CASSETTE (H11J)
60 4-959-232-01 SPRING (R), TORSION (H11J) * 75 A-4303-536-A TCB BOARD, COMPLETE (H11 : EE)
60 4-959-232-11 SPRING (R), TORSION (H11) 76 1-773-167-11 WIRE (FLAT TYPE) (21 CORE) (H11J)
61 4-959-231-01 SPRING (L), TORSION (H11J) 76 1-777-060-11 WIRE (FLAT TYPE) (21 CORE) (H11)
77 1-773-052-11 WIRE (FLAT TYPE) (17 CORE)
61 4-959-231-11 SPRING (L), TORSION (H11) * 78 A-4389-317-A MAIN BOARD, COMPLETE (H11 : AEP,UK)
62 X-4946-761-1 HOLDER (L) ASSY, CASSETTE (H11)
62 X-4946-820-1 HOLDER (BL) ASSY, CASSETTE (H11J) * 78 A-4389-318-A MAIN BOARD, COMPLETE (H11 : G)
* 63 3-367-709-01 LEVER (LOCK LEVER L) (H11J) 78 A-4389-319-A MAIN BOARD, COMPLETE (H11 : IT)
63 3-367-709-21 LEVER (LOCK LEVER L) (H11)
* 78 A-4389-329-A MAIN BOARD, COMPLETE (H11 : E3,HK)
64 3-354-957-01 JOINT (LOCK LEVER) * 78 A-4389-397-A MAIN BOARD, COMPLETE (H11 : EE)
65 4-951-620-01 SCREW (2.6X8), +BVTP * 78 A-4389-399-A MAIN BOARD, COMPLETE (H11 : E2,AR)
66 4-965-877-01 LEVER (LOCK LEVER R) (H11J) * 78 A-4389-400-A MAIN BOARD, COMPLETE (H11 : EA, TW)
* 66 4-965-877-11 LEVER (LOCK LEVER R) (H11) * 78 A-4389-405-A MAIN BOARD, COMPLETE (H11 : MX)
* 67 4-977-399-01 HOUSE, LAMP (H11J)
* 78 A-4389-407-A MAIN BOARD, COMPLETE (H11 : AUS)
* 67 4-977-399-11 HOUSE, LAMP (H11) * 78 A-4389-412-A MAIN BOARD, COMPLETE (H11 : MY, SP)
68 X-4946-760-1 HOLDER (R) ASSY, CASSETTE (H11) * 78 A-4389-477-A MAIN BOARD, COMPLETE (H11J)
68 X-4946-819-1 HOLDER (BR) ASSY, CASSETTE (H11J) 19 4-962-708-11 EMBLEM (4-A), SONY (H11)
* 69 4-977-400-01 HOLDER (FL) (H11J) 79 4-962-708-31 EMBLEM (4-A), SONY (H11J)
* 69 4-977-400-11 HOLDER (FL) (H11)
80 1-543-738-41 CORE, RING (AEP.G,IT,EE,UK)
70 4-977-401-11 PANEL, LOADING (H11) 81 4-959-229-11 DETENT, CASSETTE (H11)
70 4-977-401-31 PANEL, LOADING (H11J) FL501 1-517-473-11 INDICATOR TUBE, FLUORESCENT
71 1-776-220-11 WIRE (FLAT TYPE) (19 CORE) (H1 14)
— 62 —
