Sony CHC-P11 - CD Mechanism Section-1

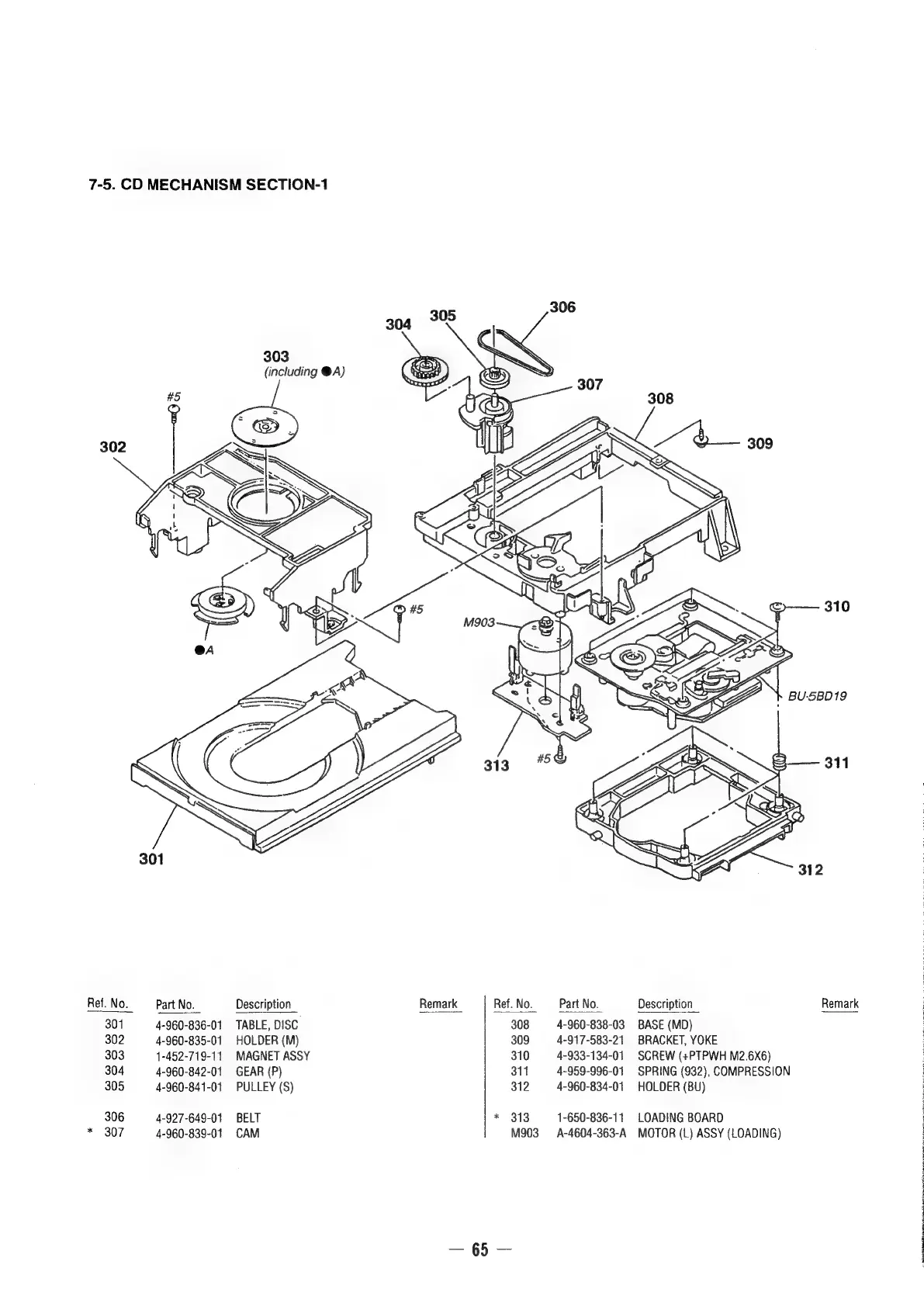

7-5. CD MECHANISM SECTION-1
303
(including @A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 4-960-836-01 TABLE, DISC 308 4-960-838-03 BASE (MD)
302 4-960-835-01 HOLDER (M) 309 4-917-583-21 BRACKET, YOKE
303 1-452-719-11 MAGNET ASSY 310 4-933-134-01 SCREW (+PTPWH M2.6X6)
304 4-960-842-01 GEAR (P) 311 4-959-996-01 SPRING (932), COMPRESSION
305 4-960-841-01 PULLEY (S) 312 4-960-834-01 HOLDER (BU)
306 4-927-649-01 BELT * 313 1-650-836-11 LOADING BOARD
* 307 4-960-839-01 CAM M903 A-4604-363-A MOTOR (L) ASSY (LOADING)
