Sony CHC-P11 - Page 46

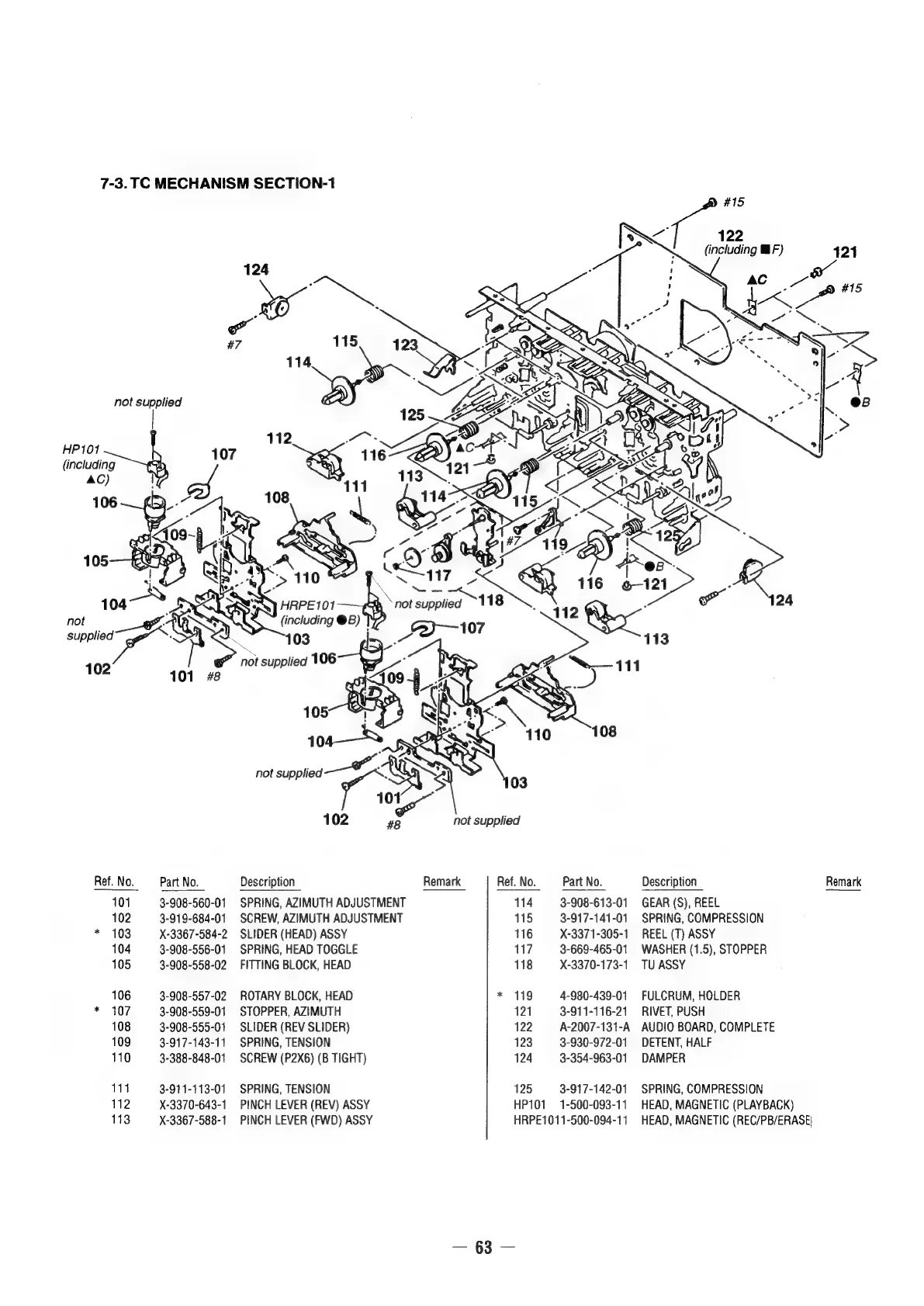

7-3. TC MECHANISM SECTION-1
a #15
not supplied
HP101
(including
AC) 1 (
106
105
-*k
10
7S
not , >
Sar PASS ae
102 101 #8
102 #8 not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT 114 3-908-613-01 GEAR (S), REEL
102 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT 115 3-917-141-01 SPRING, COMPRESSION
* 103 X-3367-584-2 SLIDER (HEAD) ASSY 116 X-3371-305-1 REEL (T) ASSY
104 3-908-556-01 SPRING, HEAD TOGGLE 117 3-669-465-01 WASHER (1.5), STOPPER
105 3-908-558-02 FITTING BLOCK, HEAD 118 X-3370-173-1 TU ASSY
106 3-908-557-02 ROTARY BLOCK, HEAD * 119 4-980-439-01 FULCRUM, HOLDER
* 107 3-908-559-01 STOPPER, AZIMUTH 121 3-911-116-21 RIVET, PUSH
108 3-908-555-01 SLIDER (REV SLIDER) 122 A-2007-131-A AUDIO BOARD, COMPLETE
109 3-917-143-11 SPRING, TENSION 123 3-930-972-01 DETENT, HALF
110 3-388-848-01 SCREW (P2X6) (B TIGHT) 124 3-354-963-01 DAMPER
114 3-911-113-01 SPRING, TENSION 125 3-917-142-01 SPRING, COMPRESSION
112 X-3370-643-1 PINCH LEVER (REV) ASSY HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK)
113 X-3367-588-1 PINCH LEVER (FWD) ASSY HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE)
