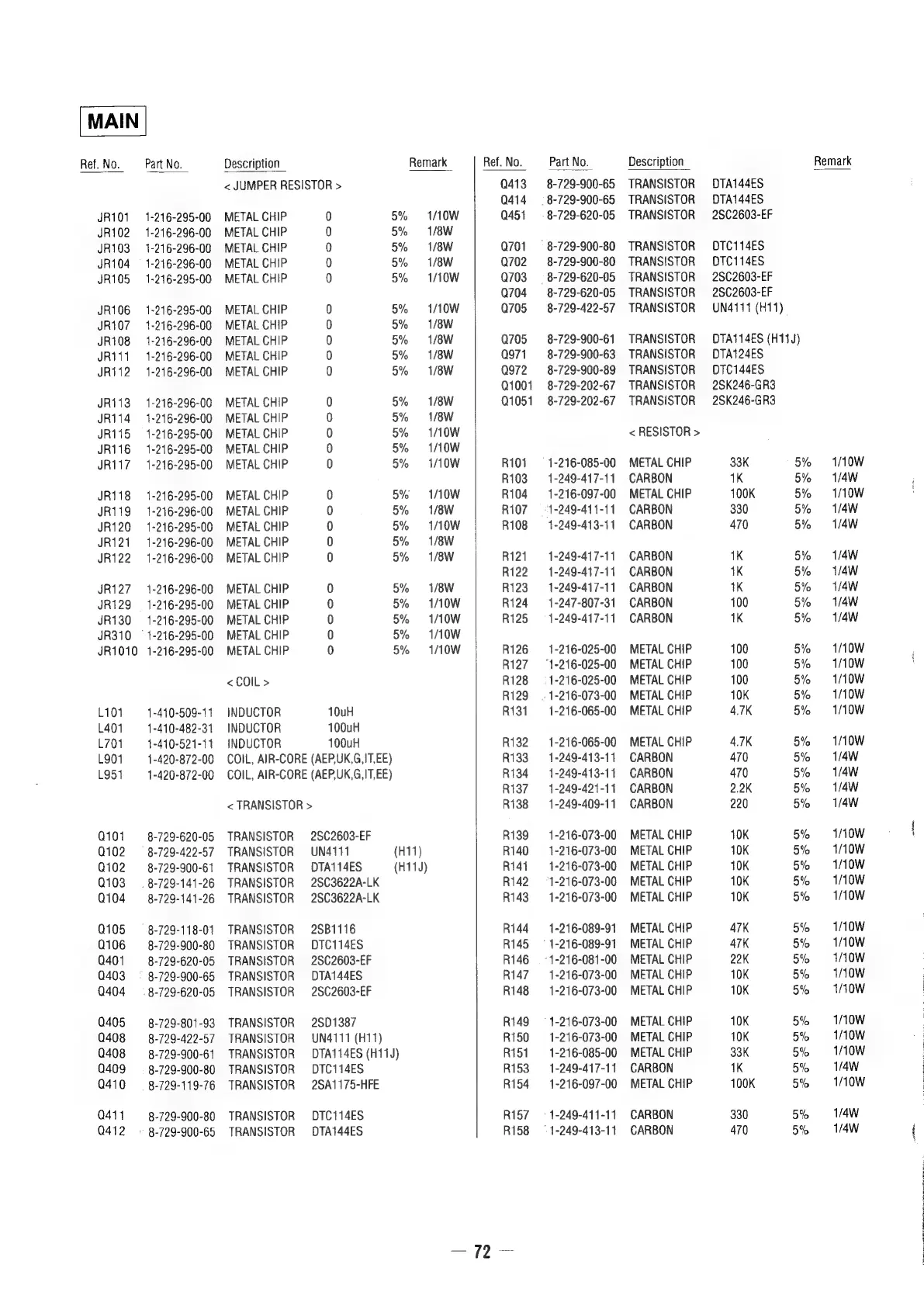

Sony CHC-P11 - Page 55

Ref. No. Part No. Description Remark Ref. No. Part No. Description
< JUMPER RESISTOR > Q413 —-8-729-900-65 TRANSISTOR
Q414 = 8-729-900-65 TRANSISTOR
JR101 = 1-216-295-00 METAL CHIP 0 5% 1/10W Q451 = 8-729-620-05 TRANSISTOR
JR102 1-216-296-00 METAL CHIP 0 5% 1/8W
JR103 1-216-296-00 METAL CHIP 0 5% 1/8W Q701 = 8-729-900-80 TRANSISTOR
JR104 = 1-216-296-00 METAL CHIP 0 5% 1/8W Q702 = 8-729-900-80 TRANSISTOR
JR105 1-216-295-00 METAL CHIP 0 5% 1/10W Q703 = 8-729-620-05 TRANSISTOR
Q704 = 8-729-620-05 TRANSISTOR
JR106 1-216-295-00 METAL CHIP 0 5% 1/10W Q705 8-729-422-57 TRANSISTOR
JR107—1-216-296-00 METAL CHIP 0 5% 1/8W
JR108 = 1-216-296-00 METAL CHIP 0 5% 1/8W Q705 = 8-729-900-61_ TRANSISTOR
JR111 1-216-296-00 METAL CHIP 0 5% 1/8W Q971 —8-729-900-63 TRANSISTOR
JR112 1-216-296-00 METAL CHIP 0 5% 1/8W Q972 8-729-900-89 TRANSISTOR
Q1001 8-729-202-67 TRANSISTOR
JR113.— 1-216-296-00 METAL CHIP 0 5% 1/8W Q1051 8-729-202-67 TRANSISTOR
JR114— 1-216-296-00 METAL CHIP 0 5% 1/8W
JR115 — 1-216-295-00 METAL CHIP 0 5% 1/10W < RESISTOR >
JR116 = 1-216-295-00 METAL CHIP 0 5% 1/0W
JR117—-1-216-295-00 METAL CHIP 0 5% 1/10W R101 = 1-216-085-00 METAL CHIP
R103 1-249-417-11 CARBON
JR118 1-216-295-00 METAL CHIP 0 5% 1/10W R104 = 1-216-097-00 METAL CHIP
JR119 1-216-296-00 METAL CHIP 0 5% 1/8W R107 =: 1-249-411-11 CARBON
JR120 1-216-295-00 METAL CHIP 0 5% 1/10W R108 1-249-413-11 CARBON
JR121 1-216-296-00 METAL CHIP 0 5% 1/8W
JR122 1-216-296-00 METAL CHIP 0 5% 1/8W R121 = 1-249-417-11 CARBON
R122 = 1-249-417-11 CARBON
JR127 —1-216-296-00 METAL CHIP 0 5% 1/8W R123. 1-249-417-11 CARBON
JR129 — 1-216-295-00 METAL CHIP 0 5% 1/10W R124 1-247-807-31 CARBON
JR130 1-216-295-00 METAL CHIP 0 5% 1/10W R125 = 1-249-417-11 CARBON
JR310 — 1-216-295-00 METAL CHIP 0 5% 1/10W
JR1010 1-216-295-00 METAL CHIP 0 5% 1/10W R126 = 1-216-025-00 METAL CHIP
R127. ~—- 1-216-025-00 METAL CHIP
< COIL > R128 = 1-216-025-00 METAL CHIP
R129 = 1-216-073-00 METAL CHIP
L101 1-410-509-11 INDUCTOR 10uH R131 1-216-065-00 METAL CHIP
L401 1-410-482-31 INDUCTOR 100uH
L701 1-410-521-11 INDUCTOR 100uH R132 1-216-065-00 METAL CHIP
L901 1-420-872-00 COIL, AIR-CORE (AEP,UK,G,IT,EE) R133. 1-249-413-11 CARBON
L951 1-420-872-00 COIL, AIR-CORE (AEP,UK,G,|T,EE) R134: 1-249-413-11 CARBON
R137 = 1-249-421-11 CARBON
< TRANSISTOR > R138 1-249-409-11 CARBON
Q101 —8-729-620-05 TRANSISTOR 25C2603-EF R139 1-216-073-00 METAL CHIP
Q102 = 8-729-422-57 TRANSISTOR UN4111 (H11) R140 = 1-216-073-00 METAL CHIP
Q102 = 8-729-900-61 TRANSISTOR DTA114ES (H11J) R141 = 1-216-073-00 METAL CHIP
Q103 = 8-729-141-26 TRANSISTOR 2SC3622A-LK R142 =: 1-216-073-00 METAL CHIP
Q104 = 8-729-141-26 TRANSISTOR 2SC3622A-LK R143 1-216-073-00 METAL CHIP
Q105 = 8-729-118-01 TRANSISTOR 2581116 R144 = 1-216-089-91 METAL CHIP
Q106 = 8-729-900-80 TRANSISTOR DTC114ES R145 = 1-216-089-91 METAL CHIP
Q401 ~—-8-729-620-05 TRANSISTOR 2SC2603-EF R146 = 1-216-081-00 METAL CHIP
Q403 = 8-729-900-65 TRANSISTOR DTA144ES R147 = 1-216-073-00 METAL CHIP
Q404 = 8-729-620-05 TRANSISTOR 28C2603-EF R148 = 1-216-073-00 METAL CHIP
Q405 =8-729-801-93 TRANSISTOR 2801387 R149 = 1-216-073-00 METAL CHIP
Q408 8-729-422-57 TRANSISTOR UN4111 (H11) R150 = 1-216-073-00 METAL CHIP
Q408 8-729-900-61 TRANSISTOR DTA114ES (H11J) R151 = 1-216-085-00 METAL CHIP
Q409 = 8-729-900-80 TRANSISTOR DTC114ES R153: 1-249-417-11 CARBON
Q410 = 8-729-119-76 TRANSISTOR 2SA1175-HFE R154 = 1-216-097-00 METAL CHIP
Q411 — 8-729-900-80 TRANSISTOR DTC114ES R157 = 1-249-411-11 CARBON
Q412 — 8-729-900-65 TRANSISTOR DTA144ES R158 = 1-249-413-11 CARBON
Remark
DTA144ES
DTA144ES
28C2603-EF
DTC114ES
DTC114ES
2SC2603-EF
2$02603-EF
UN4111 (H11)
DTA114ES (H11J)
DTA124ES
DTC144ES
2SK246-GR3
2SK246-GR3
33K 5% 1/10W
1K 5% 1/4W
100K 5% 1/10W
330 5% 1/4W
470 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
100 5% 1/4W
1K 5% 1/4W
100 5% 1/10W
100 5% 1/0W
100 5% 1/10W
10K 5% I1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
470 5% 1/4W
470 5% 1/4W
2.2K 5% 1/4W
220 5% 1/4W
10K 5% i/10W
10K 5% INOW
10K 5% I/10W
10K 5% 1/10W
10K 5% I1/10W
47K 5% I/0W
47K 5% I/0W
22K 5% INOW
10K 5% 1A0W
10K 5% 10W
10K 5% 1N0W
10K 5% 1/10W
33K 5% 1/10W
1K 5% 1/4W
100K 5% 1/10W
330 5% 1/4W
470 5% 1/4W
