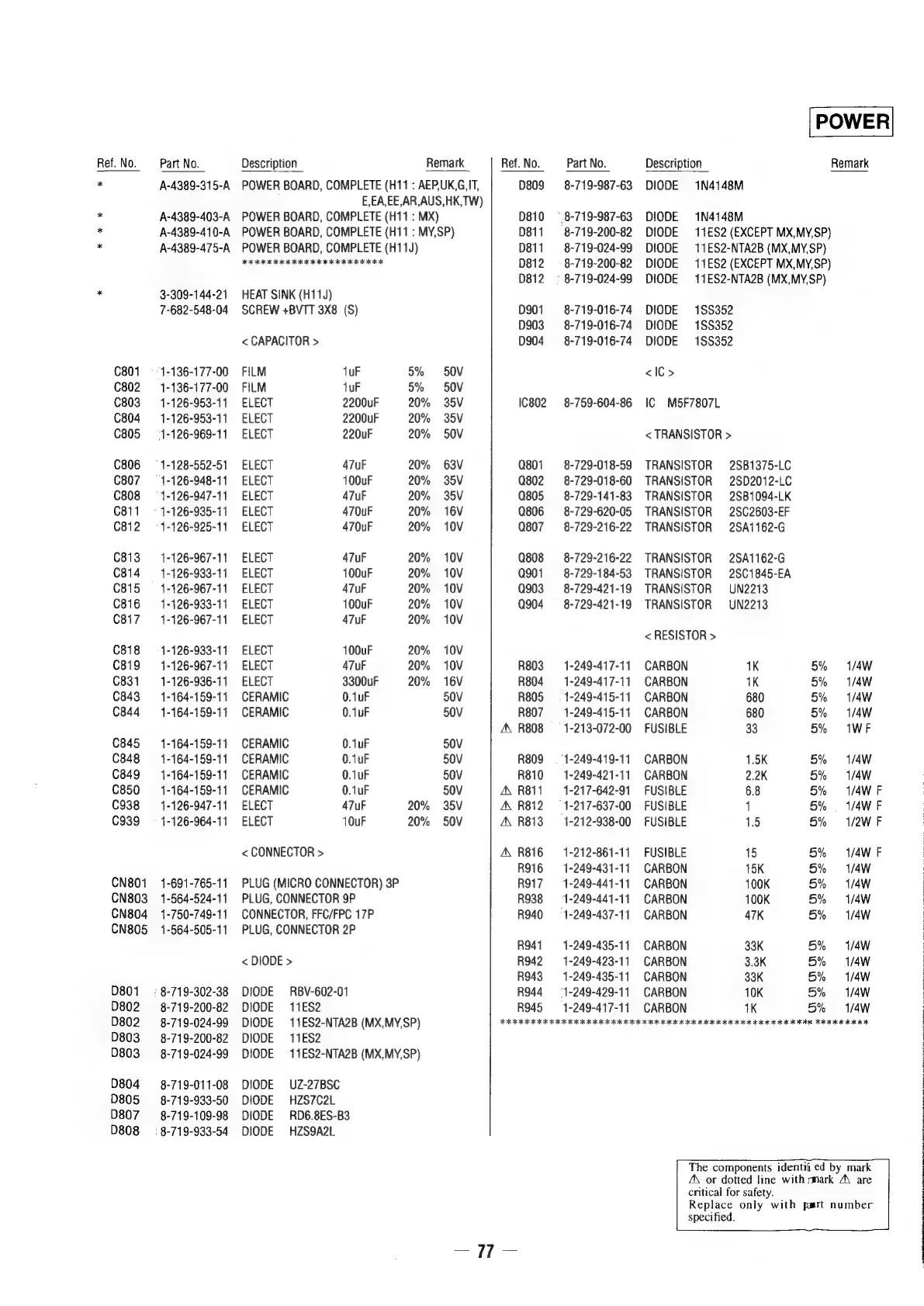

Sony CHC-P11 - Page 60

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* A-4389-315-A POWER BOARD, COMPLETE (H11 : AEP,UK,G,IT, D809 = 8-719-987-63 DIODE 1N4148M
E,EA,EE,AR,AUS,HK,TW)
* A-4389-403-A POWER BOARD, COMPLETE (H11 : MX) D810 =: 8-719-987-63 DIODE 1N4148M
. A-4389-410-A POWER BOARD, COMPLETE (H11 : MY,SP) D811 8-719-200-82 DIODE 11ES2 (EXCEPT MX,MY,SP}
. A-4389-475-A POWER BOARD, COMPLETE (H11J) D811 8-719-024-99 DIODE 11&S2-NTA2B (MX,MY,SP)
HARARE AED ER EERE PETER ERE D812 = 8-719-200-82 DIODE 11ES2 (EXCEPT MX,MY,SP)
D812 = 8-719-024-99 DIODE 11ES2-NTA2B (MX,MY,SP)
: 3-309-144-21 HEAT SINK (H11J)
7-682-548-04 SCREW +BVTT 3X8 (S) D901 = 8-719-016-74 DIODE 188352
D903 = 8-719-016-74 DIODE 188352
< CAPACITOR > D904 = 8-719-016-74 DIODE 188352
C801 —- 1-136-177-00 FILM uF 5% 50V <IC>
C802 = 1-136-177-00 FILM uF 5% 50V
C803 1-126-953-11 ELECT 2200uF 20% 35V C802 8-759-604-86 IC M5F7807L
C804: 1-126-953-11 ELECT 2200uF 20% 35V
C805 =: 1-126-969-11 ELECT 220uF 20% 50V < TRANSISTOR >
C806 = 1-128-552-51 ELECT 47uF 20% 63V Q801 8-729-018-59 TRANSISTOR 2SB1375-LC
C807 =: 1-126-948-11 ELECT 100uF 20% 35V Q802 8-729-018-60 TRANSISTOR 2SD2012-LC
C808 = 1-126-947-11_ ELECT 47uF 20% 35V Q805 8-729-141-83 TRANSISTOR 2SB1094-LK
C811 = 1-126-935-11 ELECT 470uF 20% 16V Q806 8-729-620-05 TRANSISTOR 2SC2603-EF
C812 = 1-126-925-11 ELECT 470uF 20% 10V Q807 8-729-216-22 TRANSISTOR 2SA1162-G
C813 1-126-967-11 ELECT 47uF 20% 10V Q808 8-729-216-22 TRANSISTOR 2SA1162-G
C814 = 1-126-933-11 ELECT 100uF 20% 10V Q901 8-729-184-53 TRANSISTOR 2SC1845-EA
C815 1-126-967-11 ELECT 47uF 20% 10V Q903 8-729-421-19 TRANSISTOR UN2213
C816 = 1-126-933-11 ELECT 100uF 20% 10V Q904 = 8-729-421-19 TRANSISTOR UN2213
C817 = 1-126-967-11 ELECT 47uF 20% 10V
< RESISTOR >
C818 = 1-126-933-11 ELECT 100uF 20% 10V
C819 = 1-126-967-11 ELECT 47uF 20% 10V R803 1-249-417-11 CARBON 1K 5% 1/4W
C831 1-126-936-11 ELECT 3300uF 20% 16V R804 = 1-249-417-11 CARBON 1K 5% 1/4W
C843 1-164-159-11 CERAMIC 0.1uF 50V R805 =: 1-249-415-11 CARBON 680 5% 1/4W
C844 = 1-164-159-11 CERAMIC 0.1uF 50V R807 —-1-249-415-11 CARBON 680 5% 1/4W
A, R808 = 1-213-072-00 FUSIBLE 33 5% IWF
C845 1-164-159-11 CERAMIC 0.1uF 50V
C848 = 1-164-159-11 CERAMIC 0.1uF 50V R809 =: 1-249-419-11 CARBON 1.5K 5% 1/4W
C849 1-164-159-11 CERAMIC 0.1uF 50V R810 = 1-249-421-11 CARBON 2.2K 5% 1/4W
C850 ~—s-1-164-159-11 CERAMIC 0.1uF 50V A R811 1-217-642-91 FUSIBLE 6.8 5% 1/4W F
C938 = 1-126-947-11 ELECT 47uF 20% 35V A R812 ~~: 1-217-637-00 + FUSIBLE 1 5% — 1/4W F
C939 = 1-126-964-11 ELECT 10uF 20% 50V A R813 —-1-212-938-00 FUSIBLE 1.5 5% 1/2W F
< CONNECTOR > A R816 = 1-212-861-11 FUSIBLE 15 5% 1/4W F
R916 = 1-249-431-11 CARBON 15K 5% 1/4W
CN801 1-691-765-11 PLUG (MICRO CONNECTOR) 3P R917 —- 1-249-441-11 CARBON 100K 5% 1/4W
CN803 1-564-524-11 PLUG, CONNECTOR 9P R938 =: 1-249-441-11 CARBON 100K 5% 1/4W
CN804 1-750-749-11 CONNECTOR, FFC/FPC 17P R940 —- 1-249-437-11 CARBON 47K 5% 1/4W
CN805 1-564-505-11 PLUG, CONNECTOR 2P
R941 4-249-435-11 CARBON 33K 5% 1/4W
< DIODE > R942 = 1-249-423-11 CARBON 3.3K 5% 1/4W
R943: 1-249-435-11 CARBON 33K 5% 1/4W
D801 = 8-719-302-38 DIODE RBV-602-01 R944 —- 1-249-429-11 CARBON 10K 5% 1/4W
D802 =—8-719-200-82 DIODE 11ES2 R945 1-249-417-11_ CARBON 1K 5% 1/4W
D802 8-719-024-99 DIODE 11ES2-NTA2B (MX,MY,SP) FEI CI CIRC IORI AIO OR I I ICR ARE ok a a ¥ ek ak
D803 —-8-719-200-82 DIODE 11ES2
D803 = 8-719-024-99 DIODE 11£S2-NTA2B (MX,MY,SP)
D804 ~—-8-719-011-08 DIODE UZ-27BSC
D805 —-8-719-933-50 DIODE HZS7C2L
D807 ~—8-719-109-98 DIODE RD6.8ES-B3
D808 = 8-719-933-54 DIODE HZS9A2L
The components identii ed by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
