Parameters for nonlinear user program effects (9200 to 9209 and 9300 to 9309)

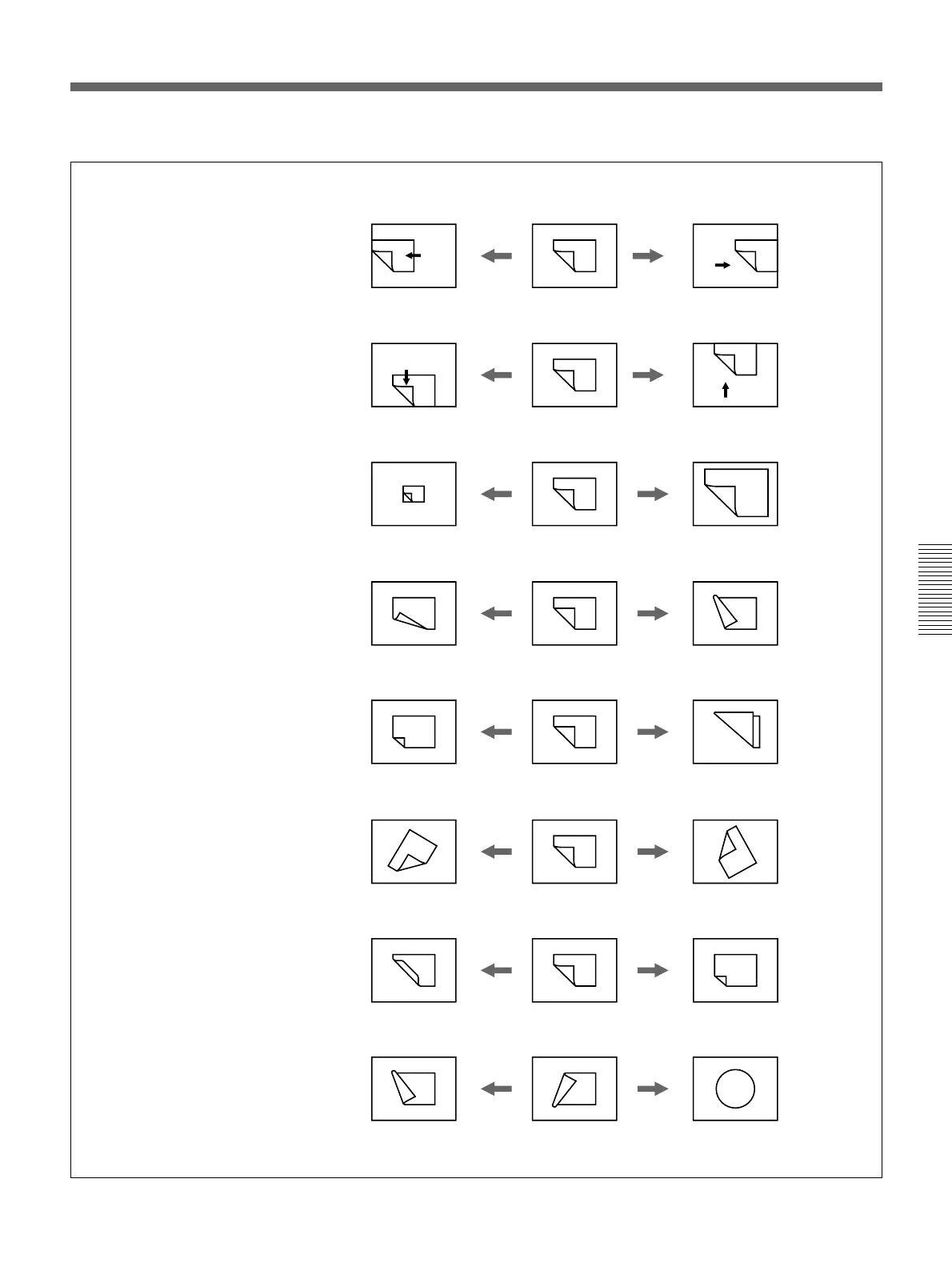

Controls and parameters Impression of parameter adjustment
Joystick, Loc-X knob
Movement along x-axis
Joystick, Loc-Y knob
Movement along y-axis
Z-knob, Loc-Z knob
Magnification
Angle knob
Direction of folding
OFFSET knob
Degree of modification
Rot-Z knob
Rotation about the z-axis
Radius knob
Tightness of winding
FORM (F5 button)
Type of modification
KfDur
Time interval from one key frame to the next. (Not valid for key frame 1)
(See page 4-9.)
