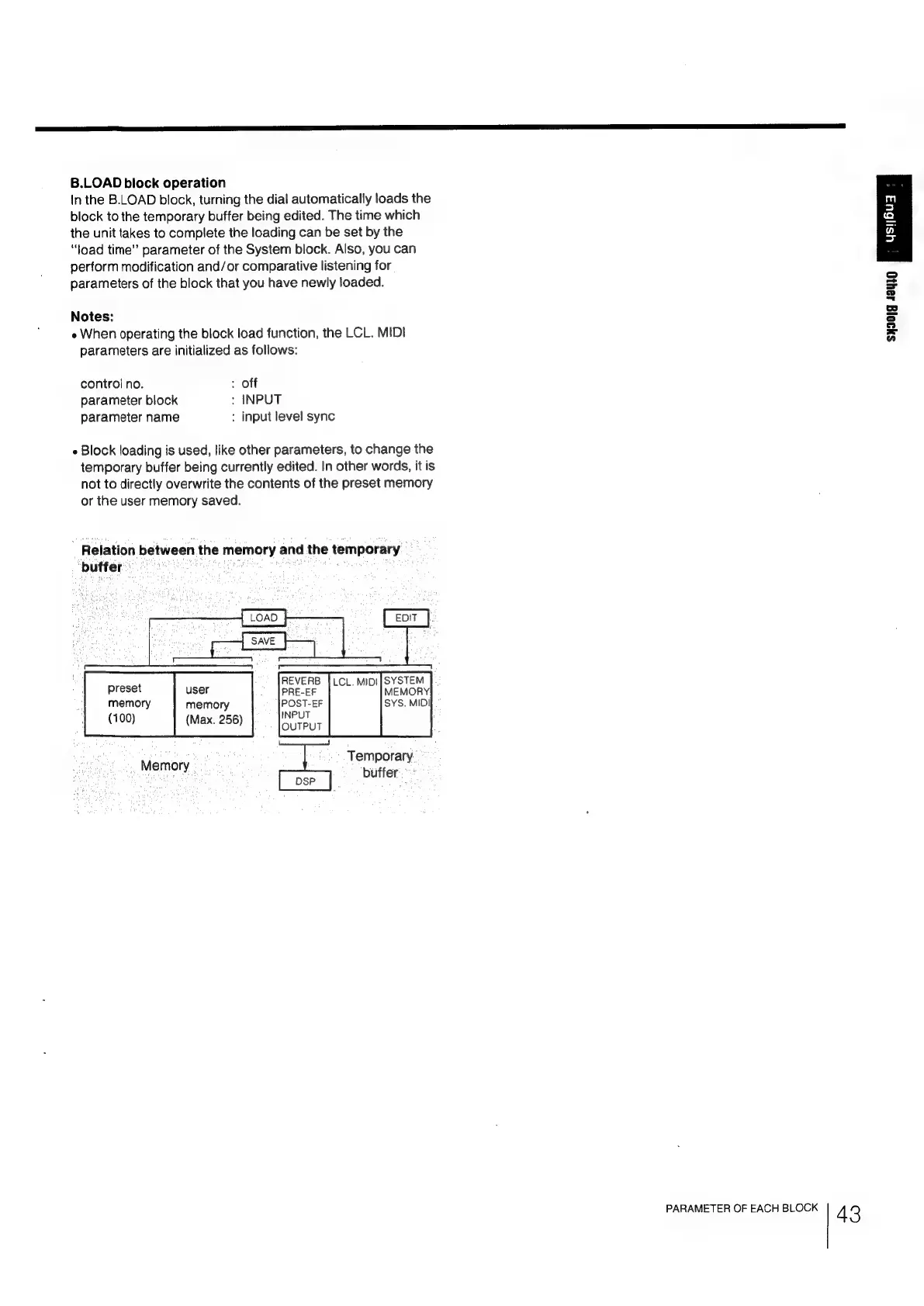

Sony DPS-R7 - Page 43

B.LOAD block operation
{In the B.LOAD block, turning the dial automatically loads the
block to the temporary buffer being edited. The time which
the unit takes to complete the loading can be set by the
“oad time” parameter of the System block. Also, you can
perform modification and/or comparative listening for
parameters of the block that you have newly loaded.
Notes:
e When operating the block load function, the LCL. MIDI
parameters are initialized as follows:
control no. : off
parameter block : INPUT
parameter name : input level sync
« Block loading is used, like other parameters, to change the
temporary buffer being currently edited. In other words, it is
not to directly overwrite the contents of the preset memory
or the user memory saved.
- Relation between the memory and the temporary
buffer
preset user
memory memory
(100) (Max. 256)
Temporary
Memery buffer
PARAMETER OF EACH BLOCK
43
