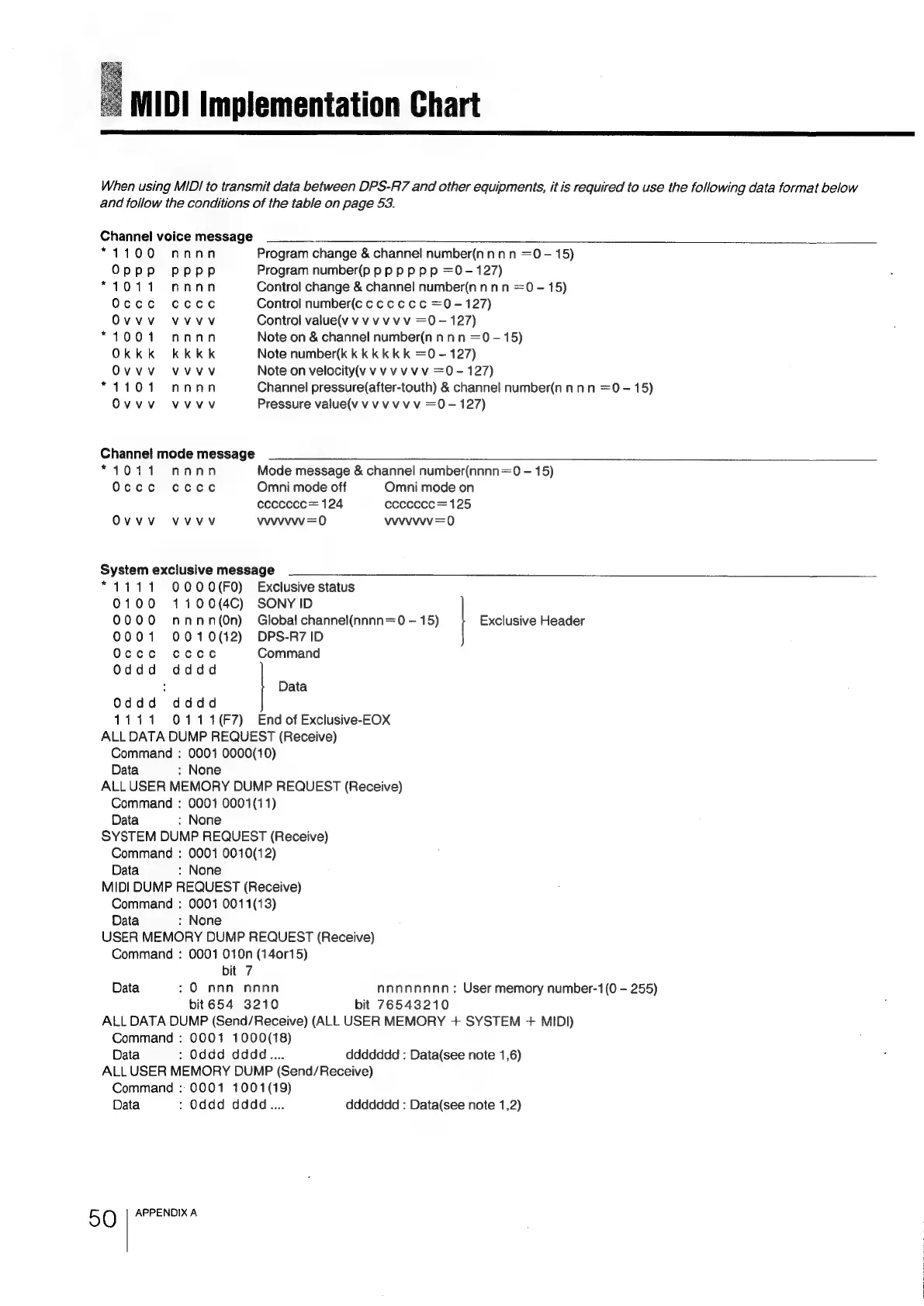

MIDI Implementation Chart
When using MIDI to transmit data between DPS-R7 and other equipments, it is required to use the following data format below
and follow the conditions of the table on page 53.
Channel voice message
“1100 nnnn Program change & channel number(n nnn =O - 15)
Oppp pppp Program number(p pp pp pp =0- 127)
*1011 nnnn Control change & channel number(n nnn =0 - 15)
Occc ccce Control number(c cc c ccc =0-127)
Ovvv vvvv Control value(v vv vv vv =0 - 127)
*1001 nnnn Note on & channel number(n nnn =0 - 15)
Okkk kkkk Note number(k k kk k k k =O - 127)
Ovvv vvvv Note on velocity(v vv vv vv =0 - 127)
*1101 nnnn Channel pressure(after-touth) & channel number(n nnn =O - 15)
Ovvv vvvyv Pressure value(v v vv vv v =0 - 127)
Channel mode message
*1011 nnonn Mode message & channel number(nnnn=0 - 15)
Occec ccce Omni mode off Omni mode on
ecccccc= 124 ccccccc= 125
Ovvv vvvv vvvvvvv =0 vvvvvvv =0
System exclusive message
*1111 = 0000(FO) Exclusive status
0100 1100(4C) SONYID
0000 nnnn(On) Global channel(nnnn=0 — 15) Exclusive Header
0001 0010(12) DPS-R7 ID
Occe cccec Command
Oddd dddd
: Data
Oddd dddd
1111 0111(F7) End of Exclusive-EOX
ALL DATA DUMP REQUEST (Receive)
Command : 0001 0000(10)
Data : None
ALL USER MEMORY DUMP REQUEST (Receive)
Command : 0001 0001(11)
Data : None
SYSTEM DUMP REQUEST (Receive)
Command : 0001 0010(12)
Data : None
MIDI DUMP REQUEST (Receive)
Command : 0001 0011(13)
Data : None
USER MEMORY DUMP REQUEST (Receive)
Command : 0001 010n (140r15)
bit 7
Data : 0 nnn nnnn nnonnnnnn: User memory number-1(0 — 255)
bit654 3210 bit 76543210
ALL DATA DUMP (Send/Receive) (ALL USER MEMORY + SYSTEM + MIDI)
Command : 0001 1000(18)
Data : Oddd dddd.... ddddddd : Data(see note 1,6)
ALL USER MEMORY DUMP (Send/Receive)
Command : 0001 1001(19)
Data : Oddd dddd.... ddddddd : Data(see note 1,2)
