Sony FCB-EV7520A - Interface and Data Format

Specifications
FCB-EV7520A(GB) D-023-100-11(1)
57
Interface
PLL
FCB-EV7520A/
FCB-CV7520A

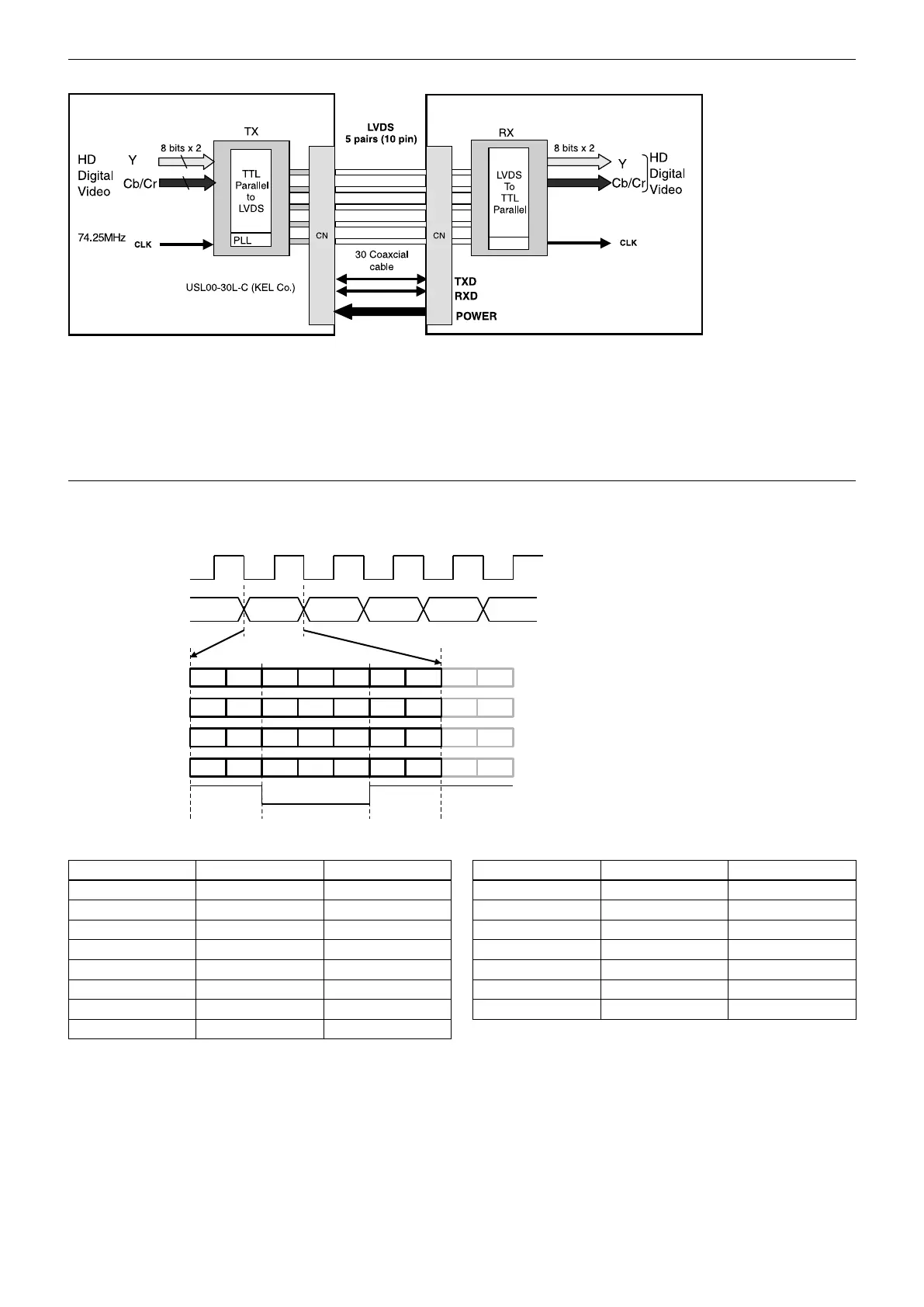

• In FCB-EV7520A/FCB-CV7520A, the video signal is transmitted by using LVDS. The LVDS receiver
IC chip (e.g., THC63LVD1024, THC63LVD104C, BU90R102) is recommended.
• Recommended connectors and cables
Cable: #42 Micro coaxial cable
Connector: USL20-30S (KEL)
LVDS Pixel Data Format
Y6 Y5
0 0
C5C6
0 0
Pixel CLK
Pixel Data
Y6 Y5 Y4 Y3 Y2 Y1 Y0
0 0 0    Y7
C6 C5 C4 C3 C2 C1 C0
0 0 0 0 0 C6 C7
TA1 +/
TB1 +/
TC1 +/
TD1 +/
TCLK +
FCB OUT
Single Mode
 Please ignore the value which can be “0” or “1”.
Output Format Pixel CLK[Hz] TCLK+[Hz] Output Format Pixel CLK[Hz] TCLK+[Hz]
1080p/60 148.5M 148.5M 720p/59.94 74.25M/1.001 74.25M/1.001
1080p/59.94 148.5M/1.001 148.5M/1.001 720p/30 74.25M 74.25M
1080p/30 74.25M 74.25M 720p/29.97 74.25M/1.001 74.25M/1.001
1080p/29.97 74.25M/1.001 74.25M/1.001 1080p/50 148.5M 148.5M
1080i/60 74.25M 74.25M 1080p/25 74.25M 74.25M
1080i/59.94 74.25M/1.001 74.25M/1.001 720p/50 74.25M 74.25M
1080i/50 74.25M 74.25M 720p/25 74.25M 74.25M
720p/60 74.25M 74.25M
