Sony FST-GTK11iP User Manual

FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
23

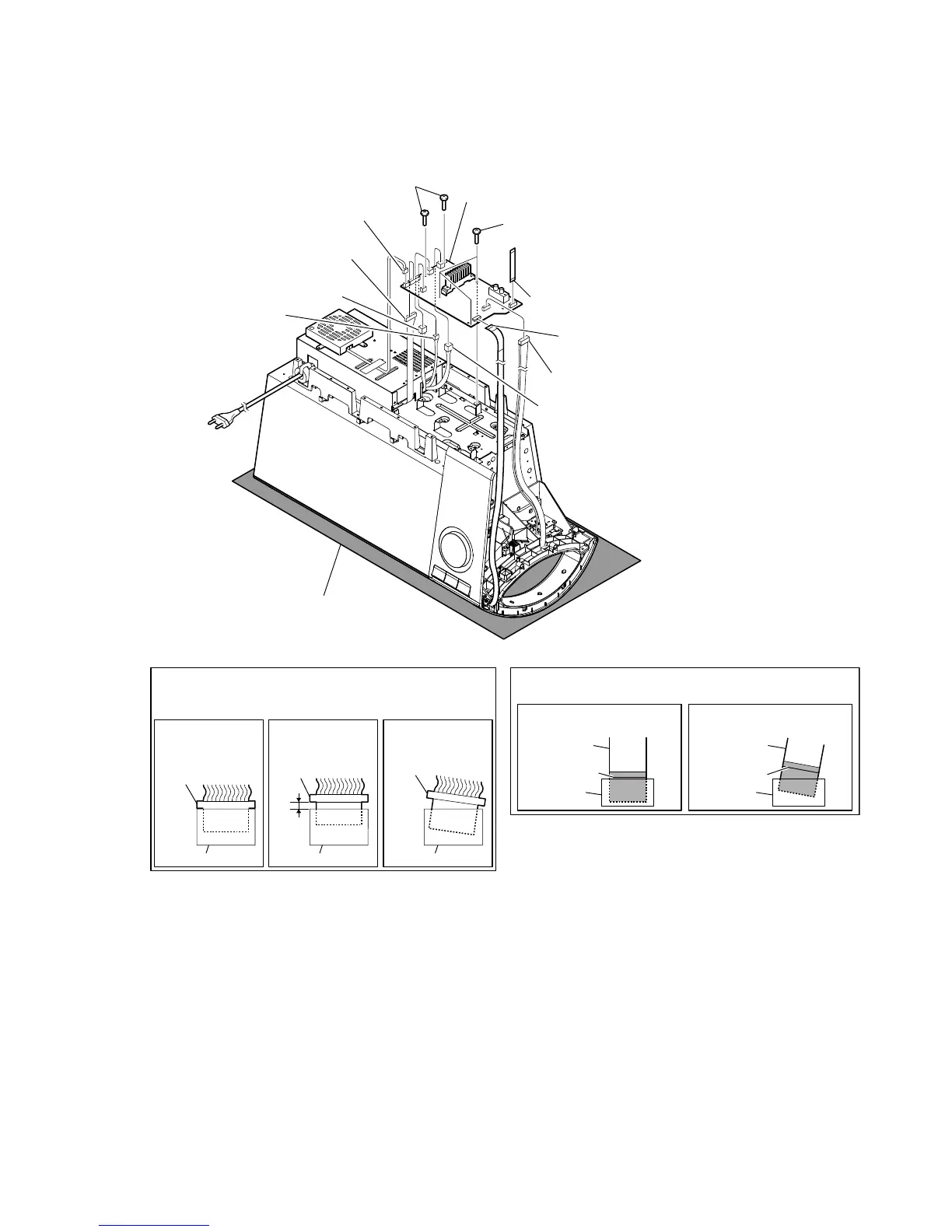

2-14. MAIN BOARD
0 MAIN board
2 connector (CN301)
7 connector (CN702)
8 connector
(CN811)
4 connector (CN813)
6 connector
(CN701)
5 connector
(CN812)
3 flexible flat cable (13 core)
(CN101)
1 flexible flat cable (9 core)
(CN302)
9 two screws
(BV/ring)
9 three screws
(BV/ring)
Note 1:
Please spread a sheet under a unit
not to injure front grille.
Note 3:
When installing the flexible flat cable,
ensure the coloured line.
No slanting after insertion.
coloured line
coloured line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK
NG
Note 2:
When you install the connector, please install themcorrectly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
NGOK NG
– Top rear view –
