FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP

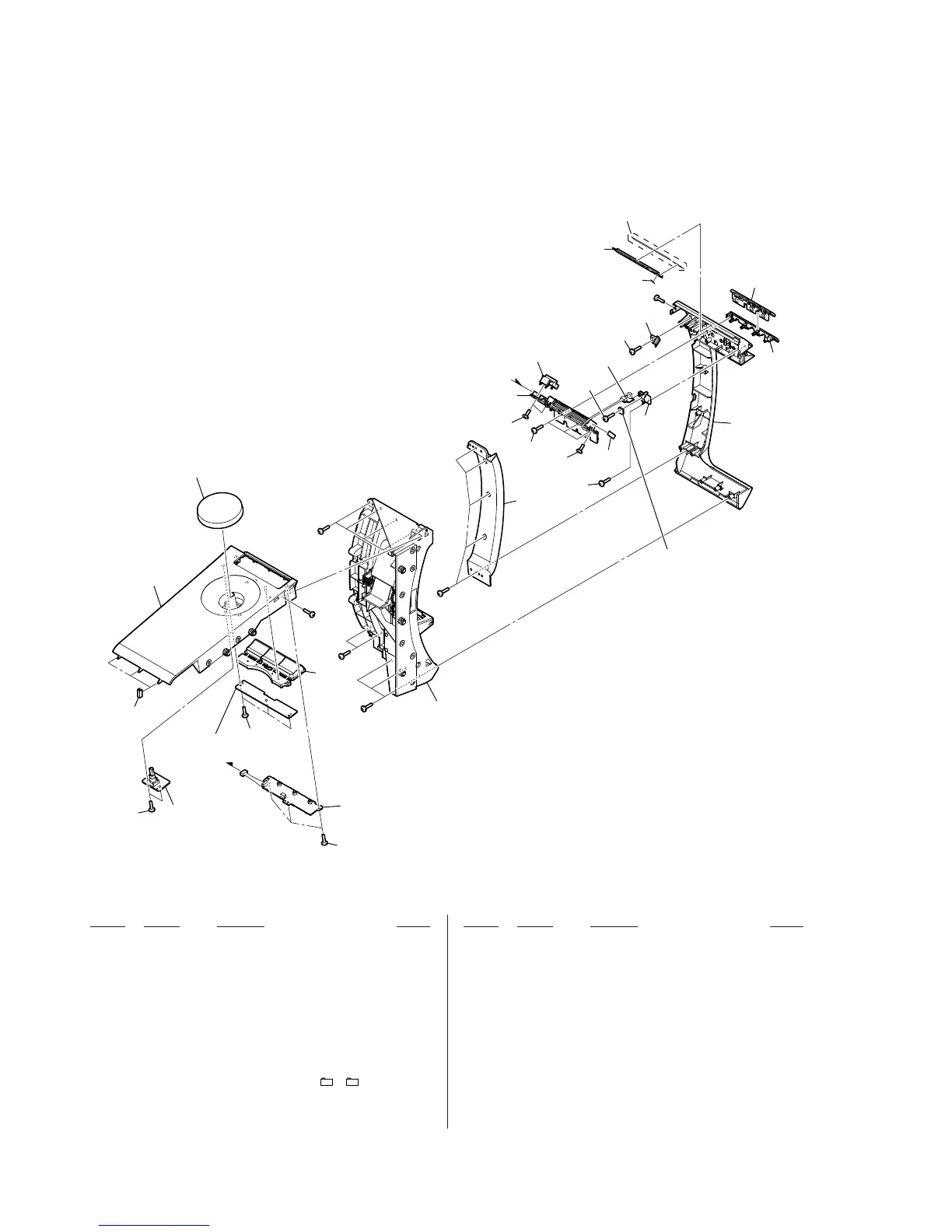

6-6. TOP PANEL SECTION
• Back side view
251 3-087-053-01 +BVTP2.6 (3CR)
252 4-409-639-01 BUTTON (EQ) (LED SPEAKER, EQ, BASS BOOST)
253 4-409-644-01 PANEL, TOP
254 4-409-636-01 KNOB (GTK11iP/GTK33iP: US)
254 4-409-636-11 KNOB (GTK33iP: E2, E51, MX, AUS)
255 4-409-624-01 HANDLE (R)
256 X-2583-605-1 BUTTON POWER ASSY (\/1)
257 4-409-640-02 WINDOW (LCD)
258 4-427-240-01 ADHESSIVE SHEET (WINDOW)
259 4-409-637-01 BUTTON (FUNCTION) (
+, –, FUNCTION)
260 4-409-638-01 BUTTON (PLAY) (u, x, l m, TUNING –,
M L, TUNING +)
261 4-409-623-02 FRONT PANEL (R) (GTK33iP: E2, E51, MX)
261 4-409-623-12 FRONT PANEL (R) (GTK33iP: AUS)
261 4-409-623-22 FRONT PANEL (R) (GTK33iP: US)
261 4-409-623-32 FRONT PANEL (R) (GTK11iP: E2, MX)
261 4-409-623-42 FRONT PANEL (R)
(GTK11iP: AEP, RU, UK, AUS, EA, SP6)
262 4-425-393-51 CUSHION (H)
263 4-425-393-61 CUSHION (H)
264 4-434-951-01 SHEET (WINDOW)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
261
259
260
251
263
251
258
257
264
256
not
supplied
#1
not supplied
not supplied
(HOLD KEY board)
not supplied
(PANEL board)
not
supplied
(HOLD board)
not supplied
(RC board)
not supplied
(KEY board)
not supplied
(VOL JOG board)
251
253
252
251
262
254
251
251
251
255
#1
#1
#1
#1
#1
251
251
C
C
front panel section
