FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
29

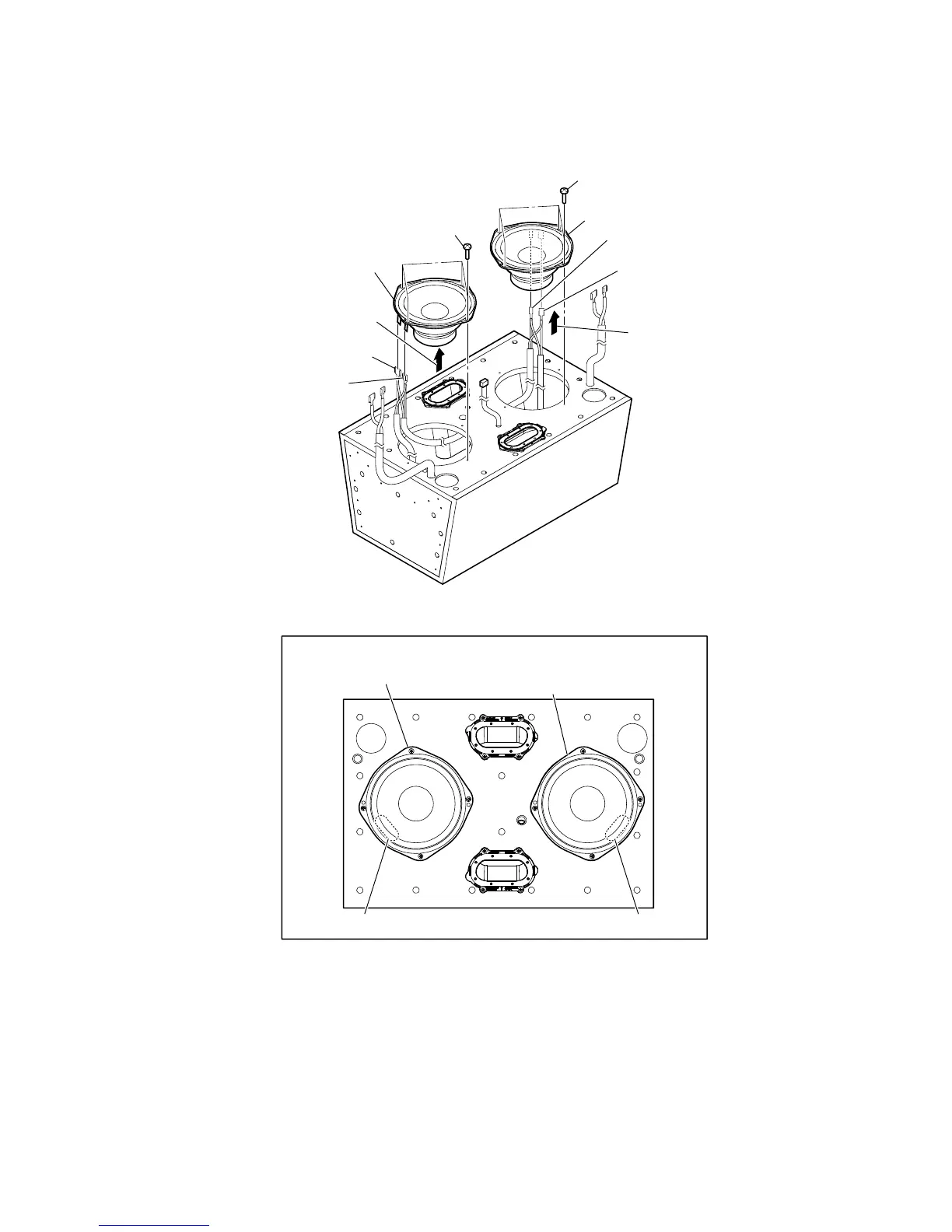

2-21. LOUDSPEAKER (16 cm) (SP1, AP2) (GTK11iP)
Note: It is possible to also remove ones of Lch and Rch.
3 terminal
(red/white)
terminal position
7 terminal (red)
7 terminal (black)
3 terminal
(black/white)
6 Remove the loudspeaker (16 cm) (SP2)
in the direction of an arrow.
4 loudspeaker (16 cm) (SP1)
8 loudspeaker (16 cm) (SP2)
2 Remove the loudspeaker (16 cm) (SP1)
in the direction of an arrow.
1 four tapping screws
(3.5 u 20)
5 four tapping screws
(3.5 u 20)
terminal position
– Top front view –
Loudspeaker (16 cm) setting
loudspeaker (16 cm)
(SP1)
loudspeaker (16 cm)
(SP2)
