FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
25

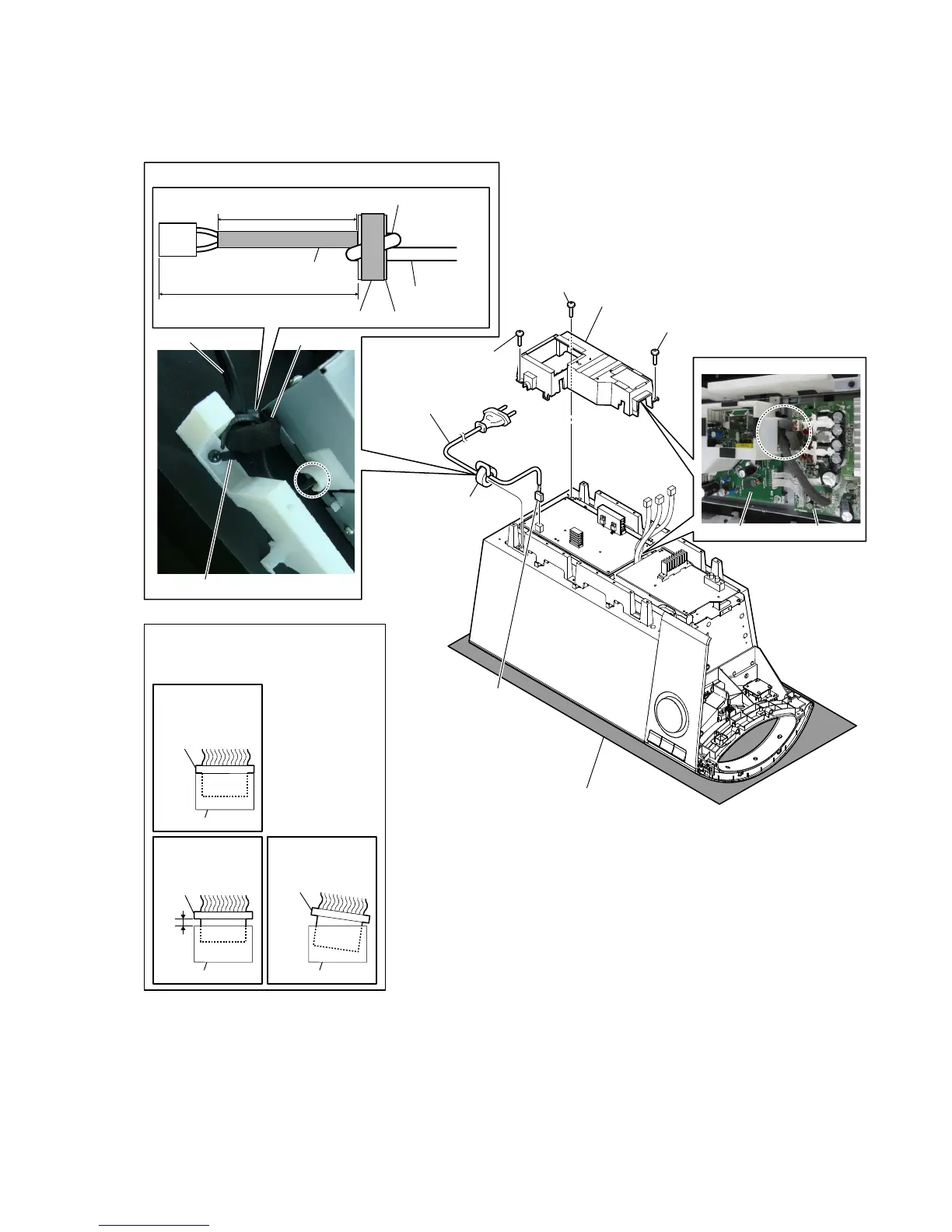

2-16. POWER CORD (AC1)
2 cover (power-PWB) block
1 screw
(BV/ring)
1 screw
(BV/ring)
1 screw
(BV/ring)
4 connector
(CN901)
5 power cord (AC1)
3 Remove the ferrite core
from coating clip.
coating clip
Note 1:
Please spread a sheet under a unit
not to injure front grille.
– Top rear view –
power cord (AC1)
ferrite core
power cord (AC1)
cushion (E) ferrite core
cushion (E)
70 ± 5 mm
50 mm
Roll the power cord once.
Power cord setting
wire setting
MAIN boardSMPS board
Note 2:
When you install the connector, please
install themcorrectly.
There is a possibility that this machine
damages when not correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
NG
OK
NG
To Next Page
