FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP

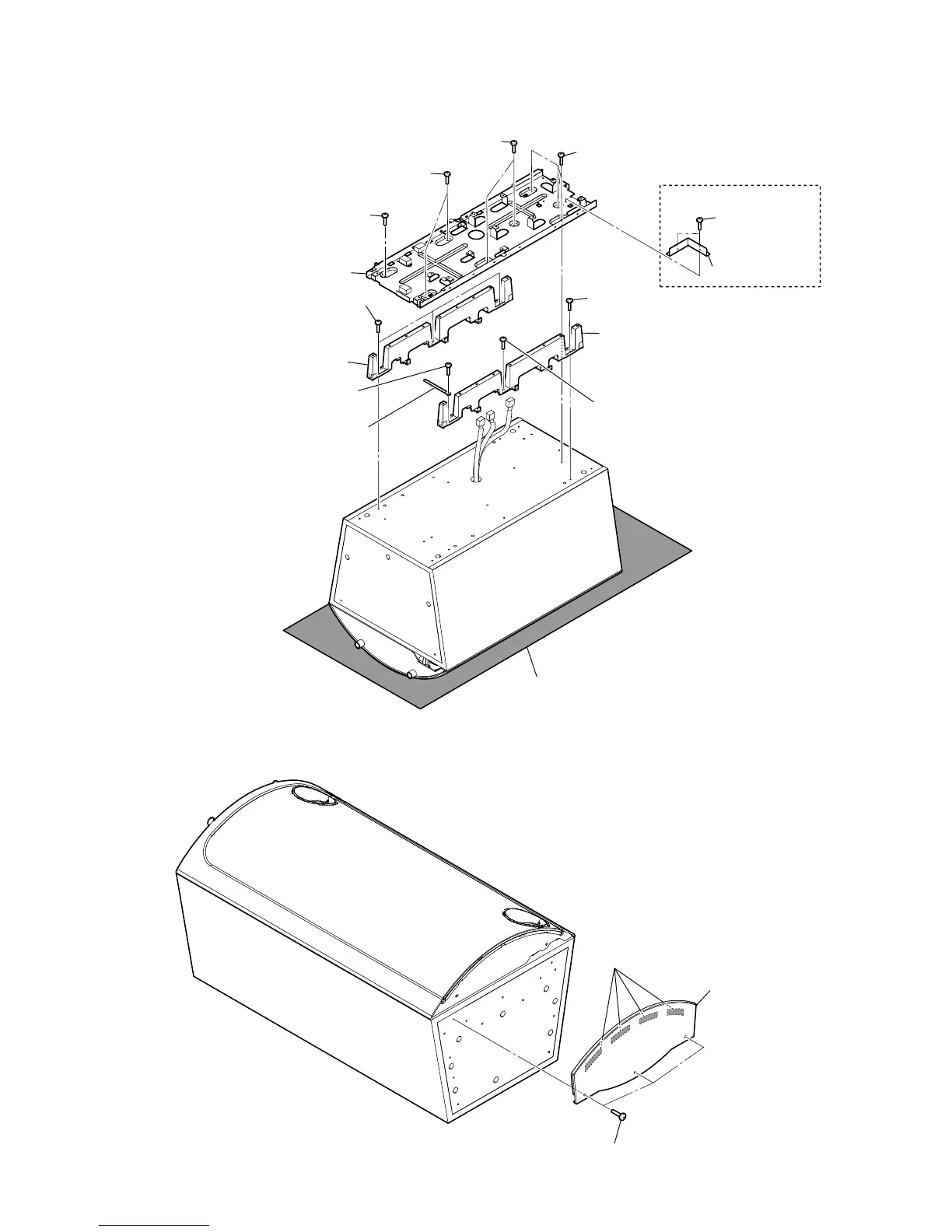

2-18. CHASSIS BLOCK, REINFORCEMENT (BACK PANEL) BLOCK

2-19. ORNAMENT BASE BLOCK

(GTK33iP: US)

Note:

Please spread a sheet under a unit

not to injure front grille.

1 two screws

(BV/ring)

2 shield (main-UB)

3 three tapping screws

(3.5 u 20)

5 three tapping screws

(3.5 u 20)

3 two tapping screws

(3.5 u 20)

3 two tapping screws

(3.5 u 20)

3 tapping screw

(3.5 u 20)

5 tapping screw

(3.5 u 20)

5 tapping screw

(3.5 u 20)

5 tapping screw

(3.5 u 20)

6 coating clip

7 reinforcement (back panel)

block

7 reinforcement (back panel)

block

4 chassis block

– Top rear view –

3 ornament base block

1 three tapping screws

(3.5 u 20)

2 Peel off four adhessive

sheets.

– Bottom front view –
