FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP

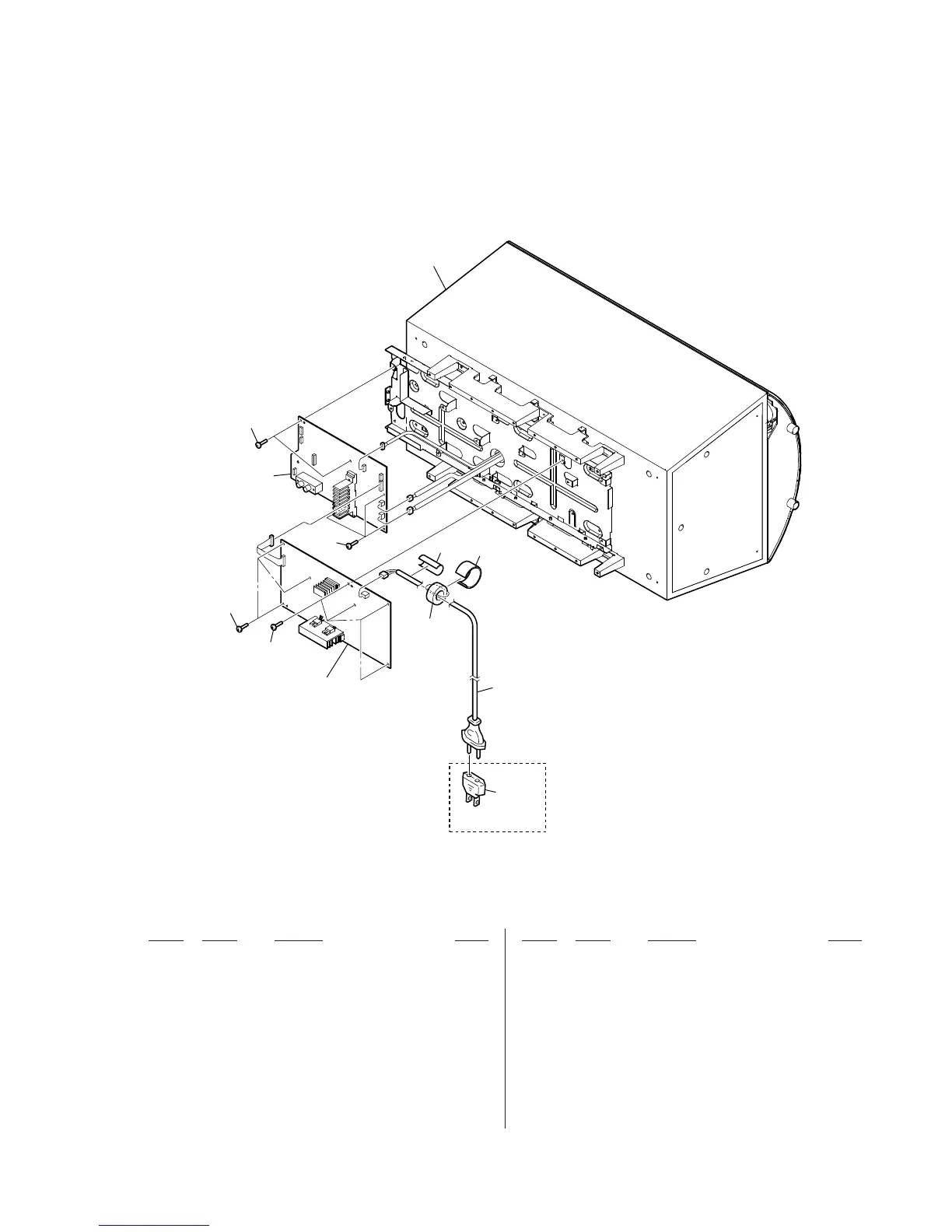

6-9. MAIN BOARD SECTION
• Back side view
401 3-704-515-32 SCREW (BV/RING)
402 A-1861-148-A MAIN BOARD, COMPLETE (GTK11iP: E2)
402 A-1862-023-A MAIN BOARD, COMPLETE (GTK11iP: AEP, UK)
402 A-1862-069-A MAIN BOARD, COMPLETE (GTK33iP: E2, E51)
402 A-1862-225-A MAIN BOARD, COMPLETE (GTK33iP: US)
402 A-1867-743-A MAIN BOARD, COMPLETE (GTK11iP: MX)
402 A-1867-752-A MAIN BOARD, COMPLETE (GTK11iP: RU)
402 A-1867-758-A MAIN BOARD, COMPLETE (GTK11iP: EA)
402 A-1867-765-A MAIN BOARD, COMPLETE (GTK11iP: SP6)
402 A-1867-775-A MAIN BOARD, COMPLETE (GTK11iP: AUS)
402 A-1867-789-A MAIN BOARD, COMPLETE (GTK33iP: MX)
402 A-1867-798-A MAIN BOARD, COMPLETE (GTK33iP: AUS)
403 4-425-392-21 CUSHION (E)
404 4-425-392-11 CUSHION (E)
0 AC1 1-834-965-22 CORD, POWER (US)
0 AC1 1-834-966-41 POWER-SUPPLY CORD (AEP, RU, E2, E51, SP6)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-309-21 CORD, POWER-SUPPLY (UK, EA)
0 AC1 1-837-344-11 CORD, POWER-SUPPLY (MX)
0 ACP1 1-569-008-33 ADAPTOR, CONVERSION (E2, E51, SP6)
FC2 1-481-419-11 CORE, FERRITE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
ACP1
AC1
FC2
(E2, E51, SP6)
chassis section
not supplied
(GTK11-SMPS board: GTK11/
GTK33-SMPS board: GTK33)
