61
FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
SECTION 6
EXPLODED VIEWS
1 4-410-069-01 FOOT (SIDE) (for Left)
2 4-874-614-52 SCREW (1) (3.5X20), TAPPING
3 4-409-653-01 SIDE PANEL (L-BASE) (for Left)
4 4-410-068-01 FOOT (BOTTOM)
5 4-425-392-41 CUSHION (E)
6 4-409-622-02 SIDE PANEL (R) (for Right)
7 4-412-604-01 COVER SCREW (Printed No. 1) (for Right)
8 4-409-641-01 COVER SCREW (Printed No. 2) (for Right)
9 4-410-067-01 COVER SCREW (Printed No. 3) (for Right)
10 4-412-603-01 COVER SCREW (Printed No. 4) (for Right)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
-XX and -X mean standardized parts, so
they may have some difference from the
original one.
Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
The mechanical parts with no reference
number in the exploded views are not sup-
plied.
Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
RU : Russian model
SP6 : Singapore and Malaysia models

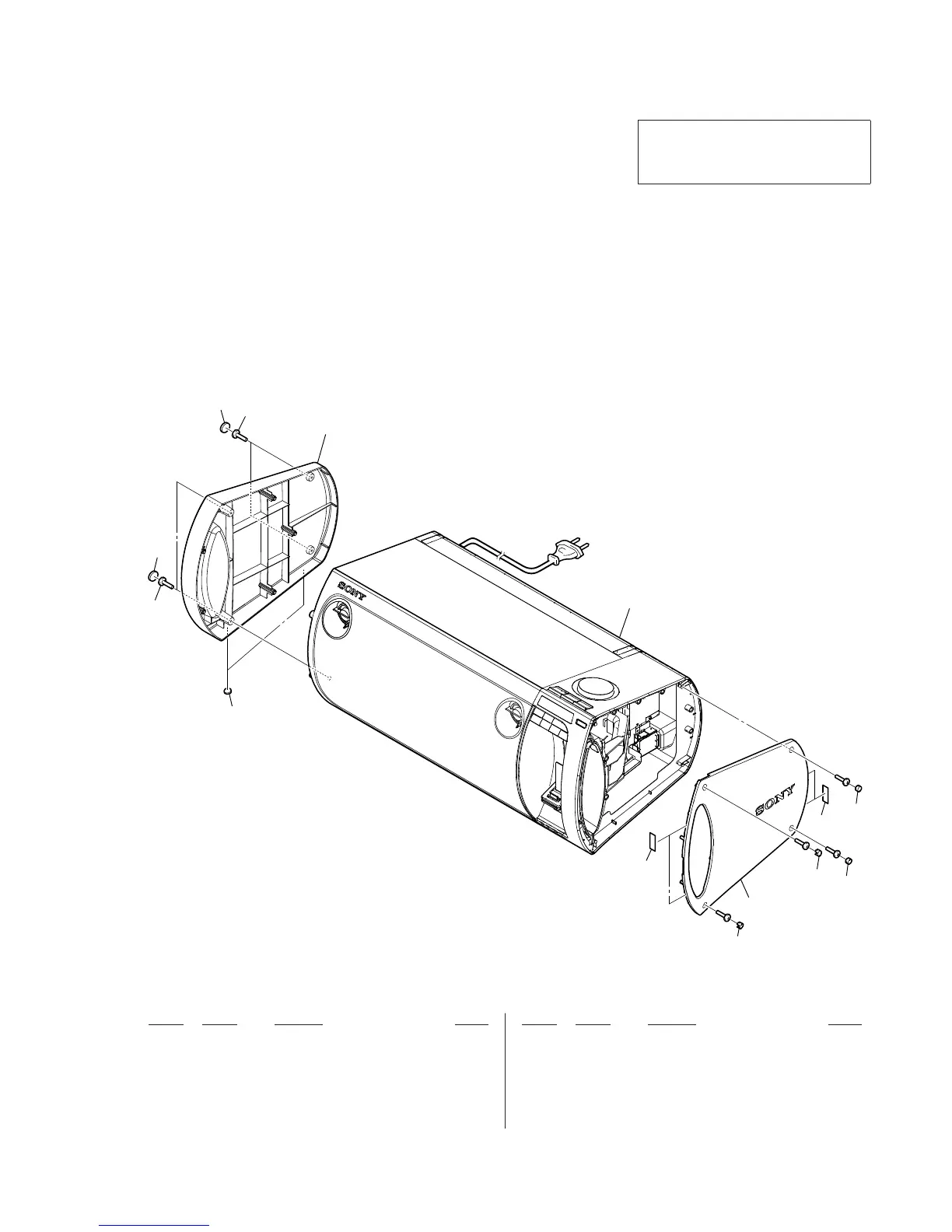

6-1. SIDE PANEL SECTION
back cover section
#1
#1
#1
#1
7
8
9
5
5
10
1
1
2
2
3
4
6
The components identi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number speci ed.
