FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
6-3. BACK PANEL SECTION (GTK11iP)

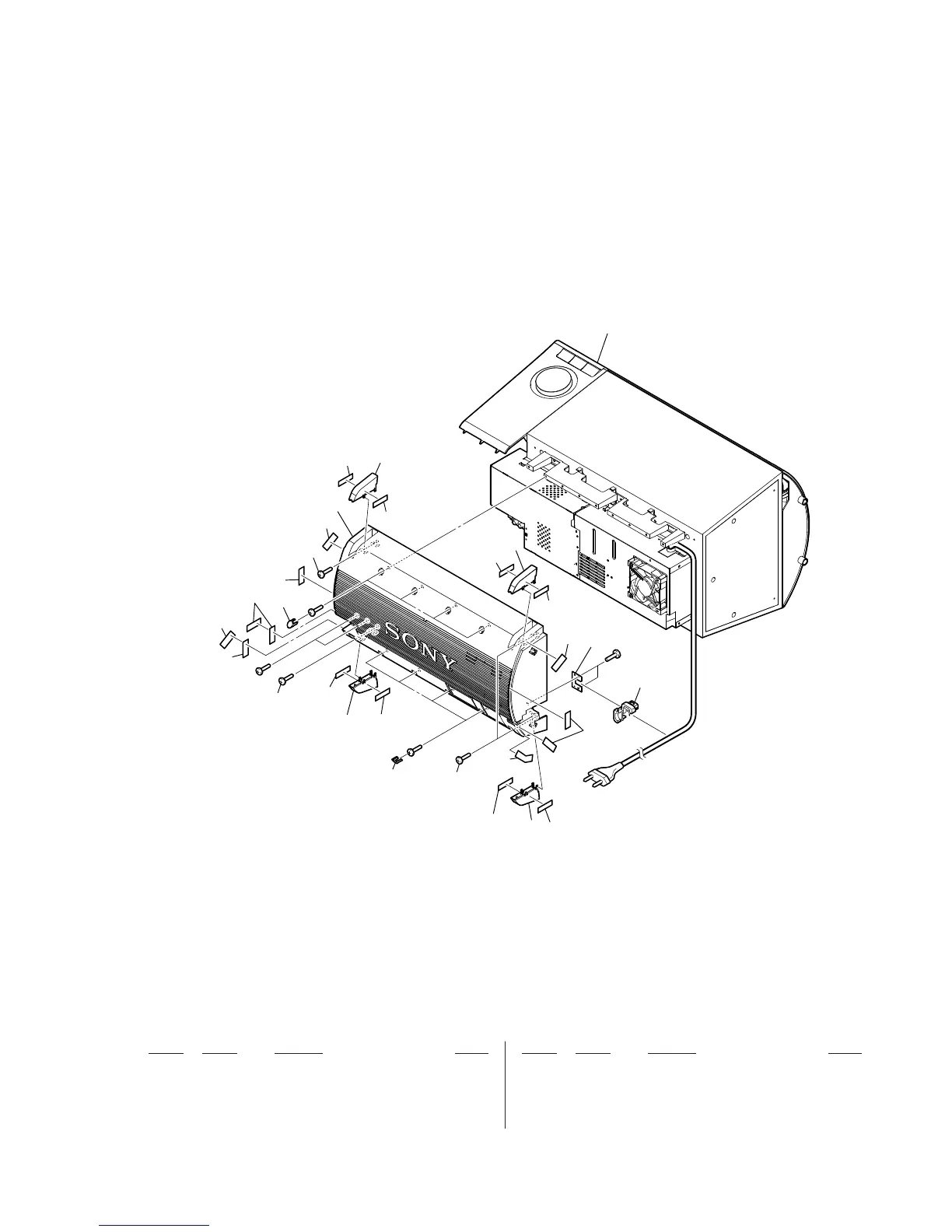

• Back side view
101 4-425-393-01 CUSHION (H)
102 4-409-658-01 SCREW COVER (BACK PANEL)
103 4-874-614-52 SCREW (1) (3.5X20), TAPPING
104 4-412-144-02 SCREW CAP
105 4-425-392-41 CUSHION (E)
106 4-409-655-02 BACK PANEL (11) (E2)
106 4-409-655-12 BACK PANEL (11)
(AEP, RU, UK, AUS, EA, MX, SP6)
0 107 3-703-244-02 BUSHING (2104), CORD
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
103
102
101
101
105
105
105
101
101
105
101
101
105
105
105
105
101
101
107
102
102
106
103
102
103
not
supplied
#1
#1
#1
#1
ornament section
104
104
To Next Page
