Sony HCD-AZ5D - Close Lever; Lever (DIR), Gear (IDL-B)

18
HCD-AZ2D/AZ5D

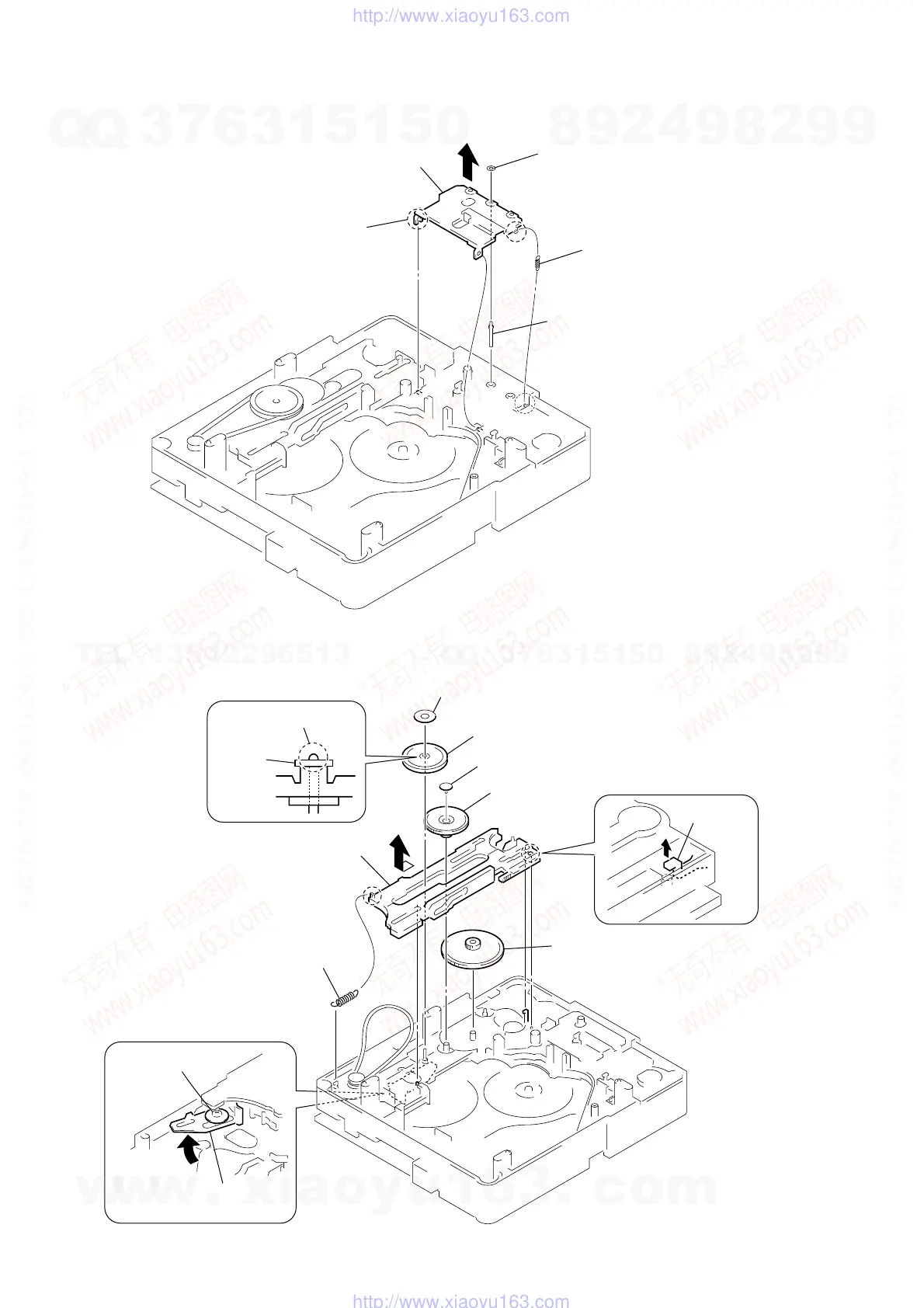

3-13. CLOSE LEVER
1 washer (3-1-0.4)
2 SPR-E lever close
4 shaft disc stop
5 close lever
3 claw
3-14. LEVER (DIR), GEAR (IDL-B)
4 pulley (gear)
3 nylon washer 1.7
2 claw
washer
0 Lever (DIR)
6 gear (IDL-A)
qa gear (IDL-B)
1 tension coil spring (DIR)
9 stoper
7 Loosen the screw.
8 Hold the release lever
and change the direction.
5 gear (cap)
