Sony HCD-C5 - Page 14

14
HCD-C5

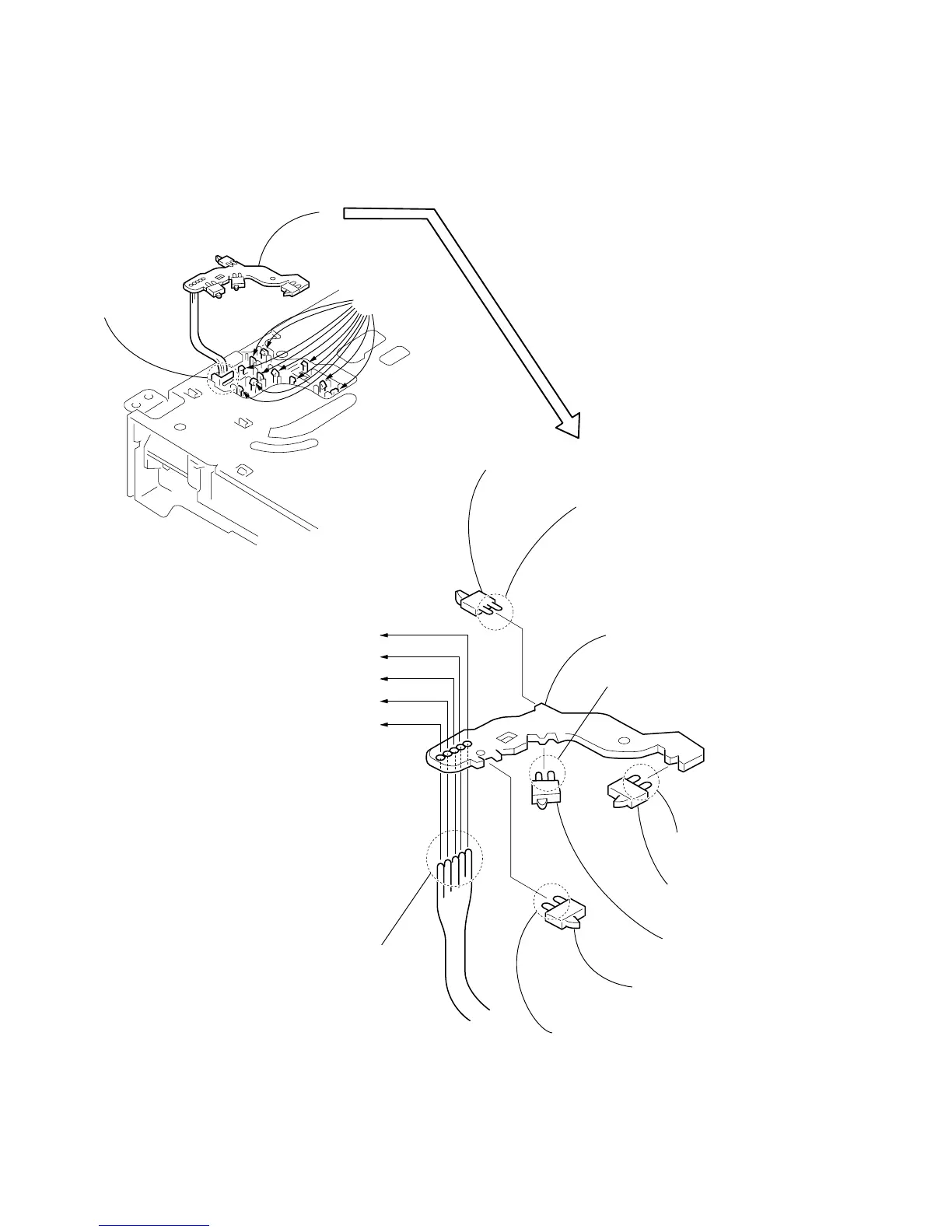

3-6. SW BOARD
1 eleven claws
3
2
Release it from
the detents.
1 Remove two solderings.
5 Remove two solderings.
9 Remove five solderings.
3 Remove two solderings.
7 Remove two solderings.
2 switch (S3)
(Disc Existence, Chucking, Releasing detect)
q; SW board
(BRN)
(RED)
4 switch (S2)
(12cm Disc/12cm
Disc Eject End detect)
6 switch (S1)
(Disc IN/8cm Disc detect)
8 switch (S4)
(8cm Disc Eject End detect)
(ORG)
(YEL)
(GRN)
