HCD-C5

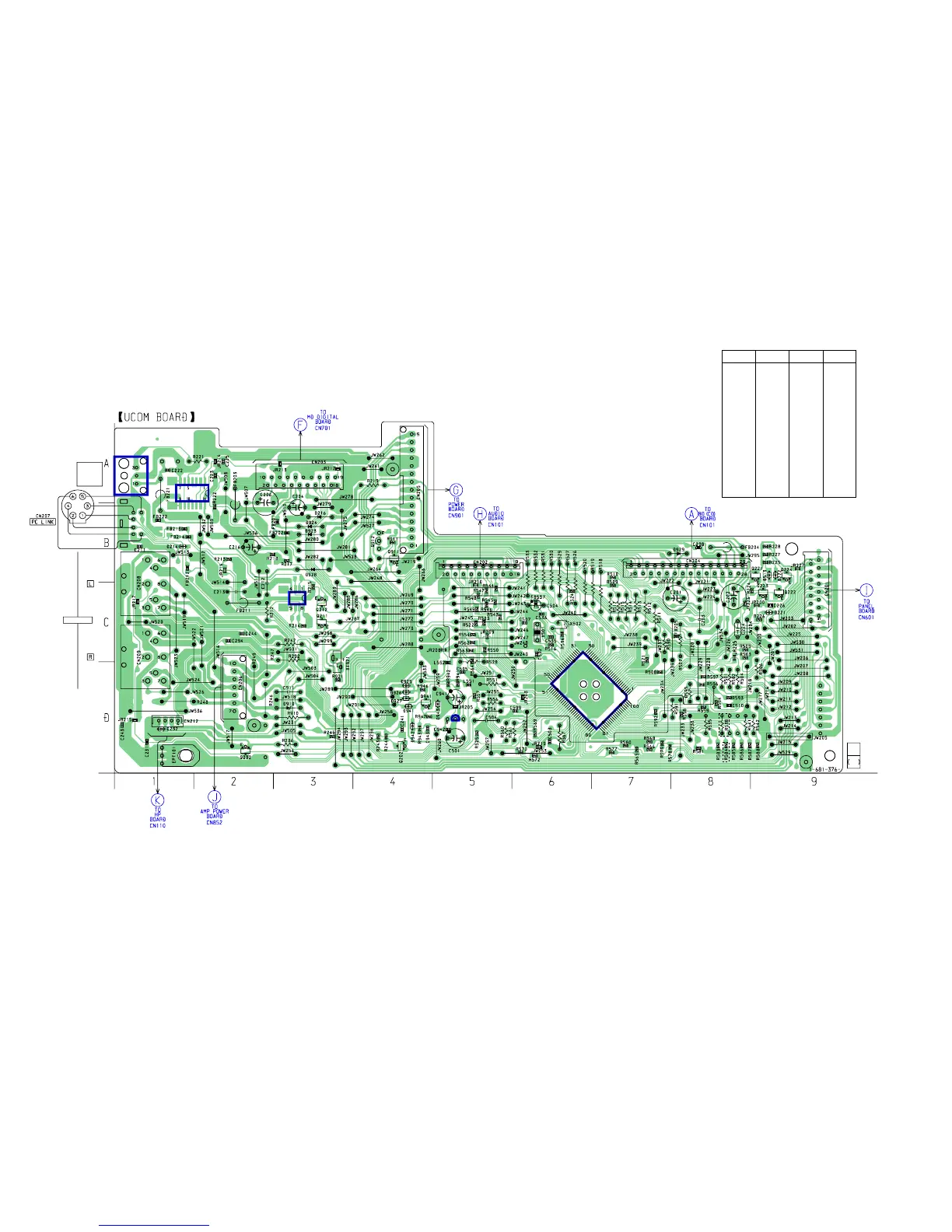

6-12. PRINTED WIRING BOARD – UCOM BOARD –
• See page 45 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D214 B-1
D221 C-9
D222 B-9
D232 D-1
D513 B-9
D910 D-3
D923 B-3
D924 B-3
D925 D-4
D926 D-4
D927 D-4
D941 D-4
D942 D-4
D943 D-5
IC212 C-3
IC221 A-1
IC222 A-1
IC501 D-6
IC941 D-5
Q202 D-4
Q211 C-3
Q212 C-3
Q221 B-9
Q222 C-9
Q223 C-9
Q224 B-9
Q232 D-2
Q911 B-4
Q912 B-4
Q941 D-4
IC222
IC221
IC212
IC941
IC501
(Page 58)
(Page 62)
(Page 60)
(Page 49)
(Page 58)
(Page 54)
(Page 62)
DIGITAL
OPTICAL
INPUT
SPEAKERS
12
12
(HK,KR,AUS)
(AEP,UK)
Ver 1.1 2001.09
