Sony HCD-C70 - Page 7

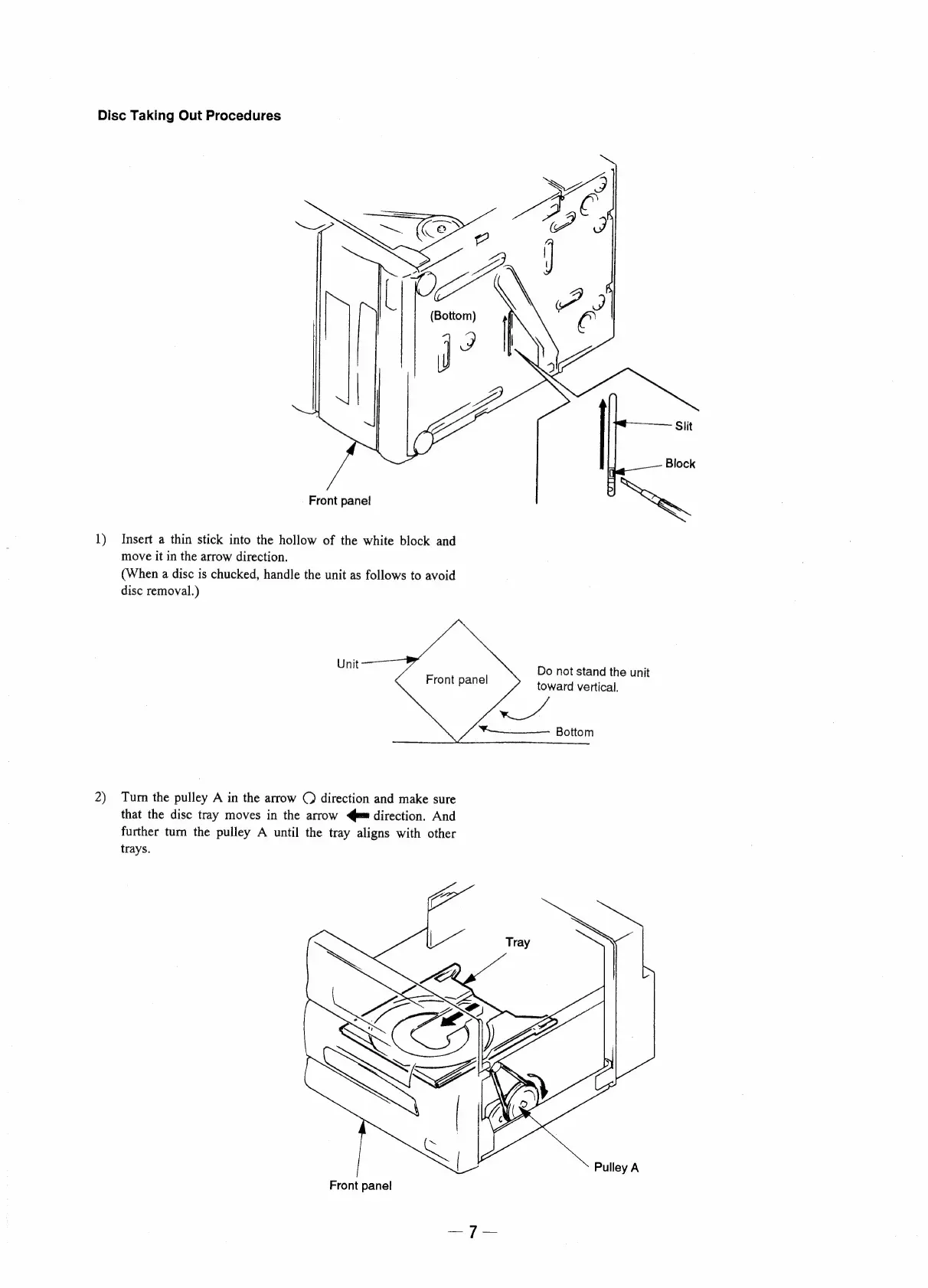

Disc Taking Out Procedures
ce 2 J
SA |
[ A \\ 7
Jo
C
PN
CO)
Block
Front panel Nw
1) Insert a thin stick into the hollow of the white block and
move it in the arrow direction.
(When a disc is chucked, handle the unit as follows to avoid
disc removal.)
Unit
Do
not
stand
the
unit
toward vertical.
Front panel
“~—__——. Bottom
2) Tum the pulley A in the arrow © direction and make sure
that the disc tray moves in the arrow = direction. And
further turn the pulley A until the tray aligns with other
trays.
Pulley A
Front panel
