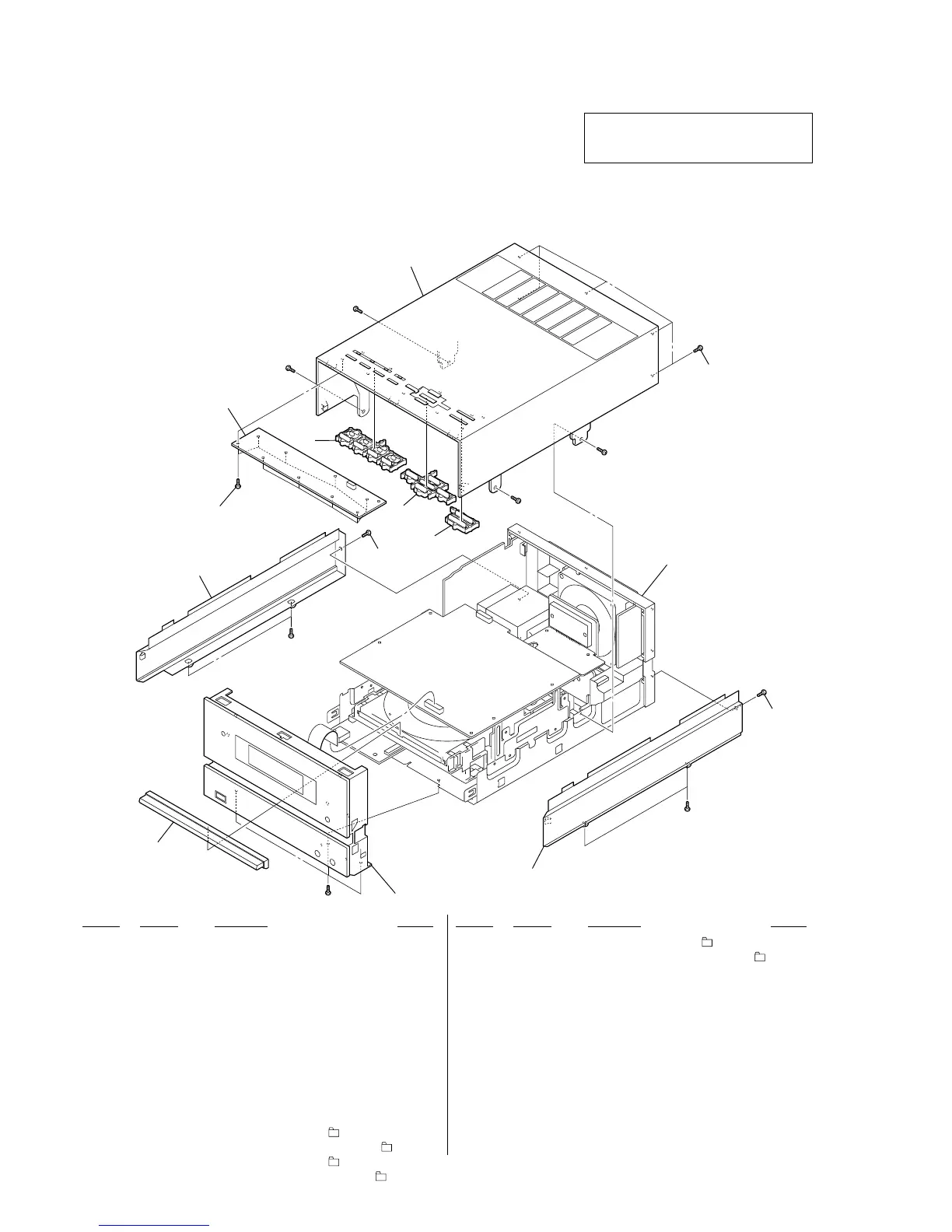

Sony HCD-CBX3 - SECTION 7 EXPLODED VIEWS; PANEL SECTION

56
HCD-BX5BT/CBX1/CBX3
#5
#5
#4
main section
front panel section
#4
#4
#4
#5
4
3
2
1
8
5
6
10
7
not supplied
(TOP PANEL board)
10
9
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-2177-251-1 LID (CD) ASSY (CBX1/CBX3)
1 X-2177-252-1 LID (CD) ASSY (BX5BT)
2 2-895-106-01 PANEL (SIDE L) (BX5BT/CBX1)
2 2-895-106-11 PANEL (SIDE L) (CBX3)
3 3-087-053-01 +BVTP2.6 (3CR)
4 2-895-104-01 PANEL (TOP) (CBX1)
4 2-895-104-11 PANEL (TOP) (CBX3)
4 2-895-104-31 PANEL (TOP) (BX5BT)
5 2-895-116-01 BUTTON (FUNCTION) (CBX3)
5 2-895-116-11 BUTTON (FUNCTION) (BX5BT)
5 2-895-116-21 BUTTON (FUNCTION) (CBX1)
6 2-895-115-01 BUTTON (DIRECTORY) ( +, l m,
ENTER, M L, –) (CBX3)
6 2-895-115-11 BUTTON (DIRECTORY) ( +, l m,
ENTER, M L, –) (BX5BT)
6 2-895-115-21 BUTTON (DIRECTORY) ( +, l m,
ENTER, M L, –) (CBX1)
7 2-895-117-01 BUTTON (VOL) (CBX3)
7 2-895-117-11 BUTTON (VOL) (BX5BT)
7 2-895-117-21 BUTTON (VOL) (CBX1)
8 2-895-107-01 PANEL (SIDE R) (BX5BT/CBX1)
8 2-895-107-11 PANEL (SIDE R) (CBX3)
9 3-254-143-11 SCREW (B3), (+) BV TAPPING (BX5BT/CBX1)
9 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 (CBX3)
10 3-254-143-11 SCREW (B3), (+) BV TAPPING
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
#5 7-685-871-09 SCREW +BVTT 3X6 (S)
7-1. PANEL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
