Sony HCD-CBX3 - POWER BOARD SECTION

59
HCD-BX5BT/CBX1/CBX3
not supplied
not supplied
not supplied
not supplied
(SPEAKER board)
not supplied
(AMP board)
not supplied
(REGULATOR board)
not supplied
(POWER board)
F901
F902
(BX5BT/
CBX3)
(CBX3)
(BX5BT/CBX3)
not
supplied
M301
T1
not
supplied
#1
#1
#1
#3
#3
#5
151
160
161
159
158
155
156
157
154
153
152
163
158
162
not supplied
(5V REGULATOR board)

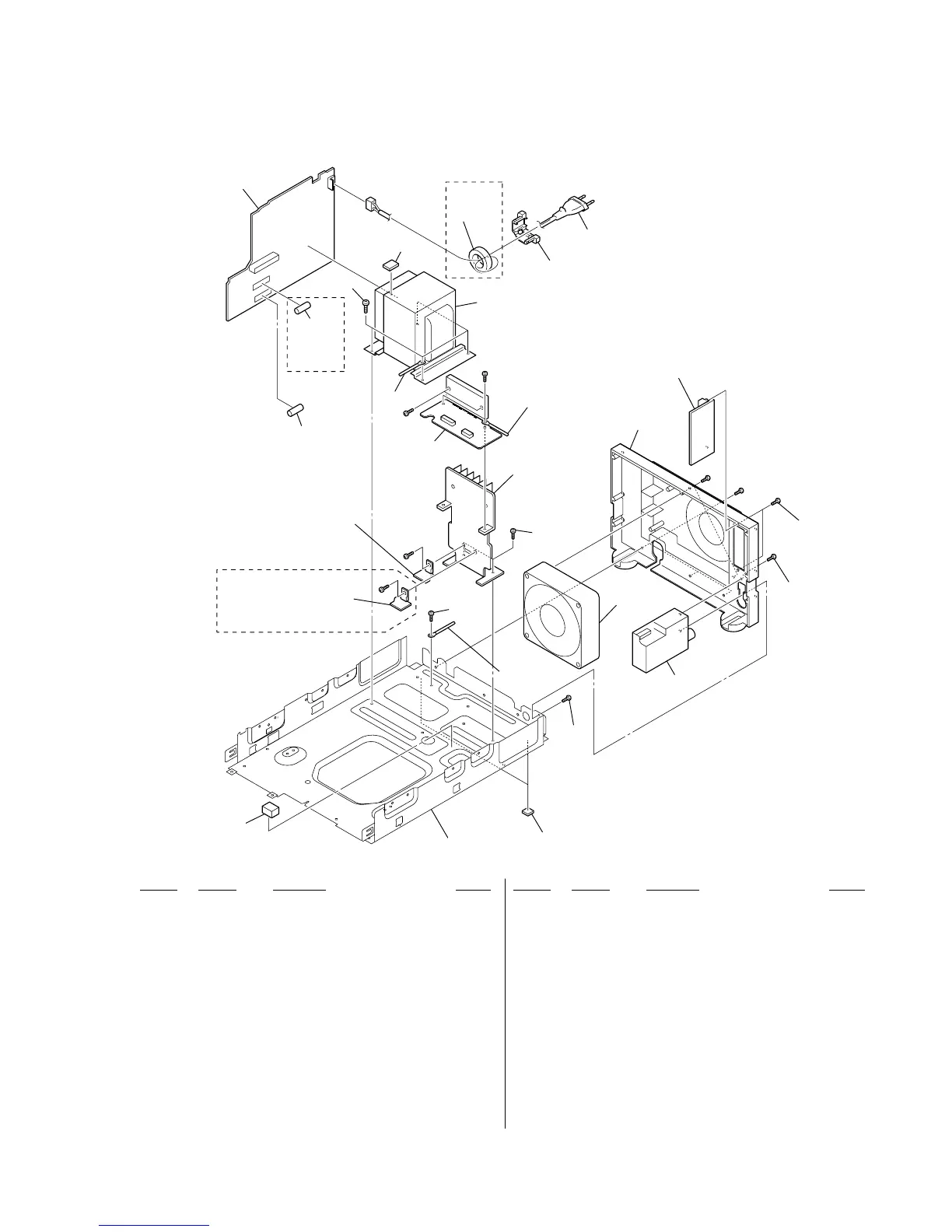

7-4. POWER BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 3-077-331-21 +BV3 (3-CR)
152 3-077-331-01 +BV3 (3-CR)
153 4-900-386-01 SCREW
154 2-594-960-41 SPACER (TRANSFORMER)
0 155 1-769-744-81 CORD, POWER (CBX3: UK)
0 155 1-830-188-11 CORD, POWER (CBX3: AEP)
0 155 1-830-190-11 CORD, POWER (BX5BT/CBX1)
156 3-703-244-00 BUSHING (2104), CORD
157 1-500-868-11 CORE, FERRITE (CBX3)
158 4-951-620-41 SCREW (2.6), +BVTP
159 2-895-108-11 PANEL (REAR) (CBX3)
159 2-895-108-61 PANEL (REAR) (BX5BT/CBX1)
160 1-693-733-21 TUNER (FM/AM) (BX5BT/CBX1)
160 1-693-736-11 TUNER (FM/AM) (CBX3)
161 4-233-372-02 FOOT (FELT)
162 3-254-143-11 SCREW (B3), (+) BV TAPPING
163 2-594-960-22 SPACER (TRANSFORMER)
0 F901 1-532-388-33 FUSE (T2AL/250V)
0 F902 1-532-388-33 FUSE (T2AL/250V) (CBX3)
0 F902 1-532-463-33 FUSE (T1AL/250V) (BX5BT)
M301 1-787-400-11 D.C. FAN
0 T1 1-445-142-11 TRANSFORMER, POWER (CBX3)
0 T1 1-445-182-11 TRANSFORMER, POWER (CBX1)
0 T1 1-445-186-11 TRANSFORMER, POWER (BX5BT)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-871-09 SCREW +BVTT 3X6 (S)
