Sony HCD-CBX3 - FRONT PANEL SECTION

57
HCD-BX5BT/CBX1/CBX3

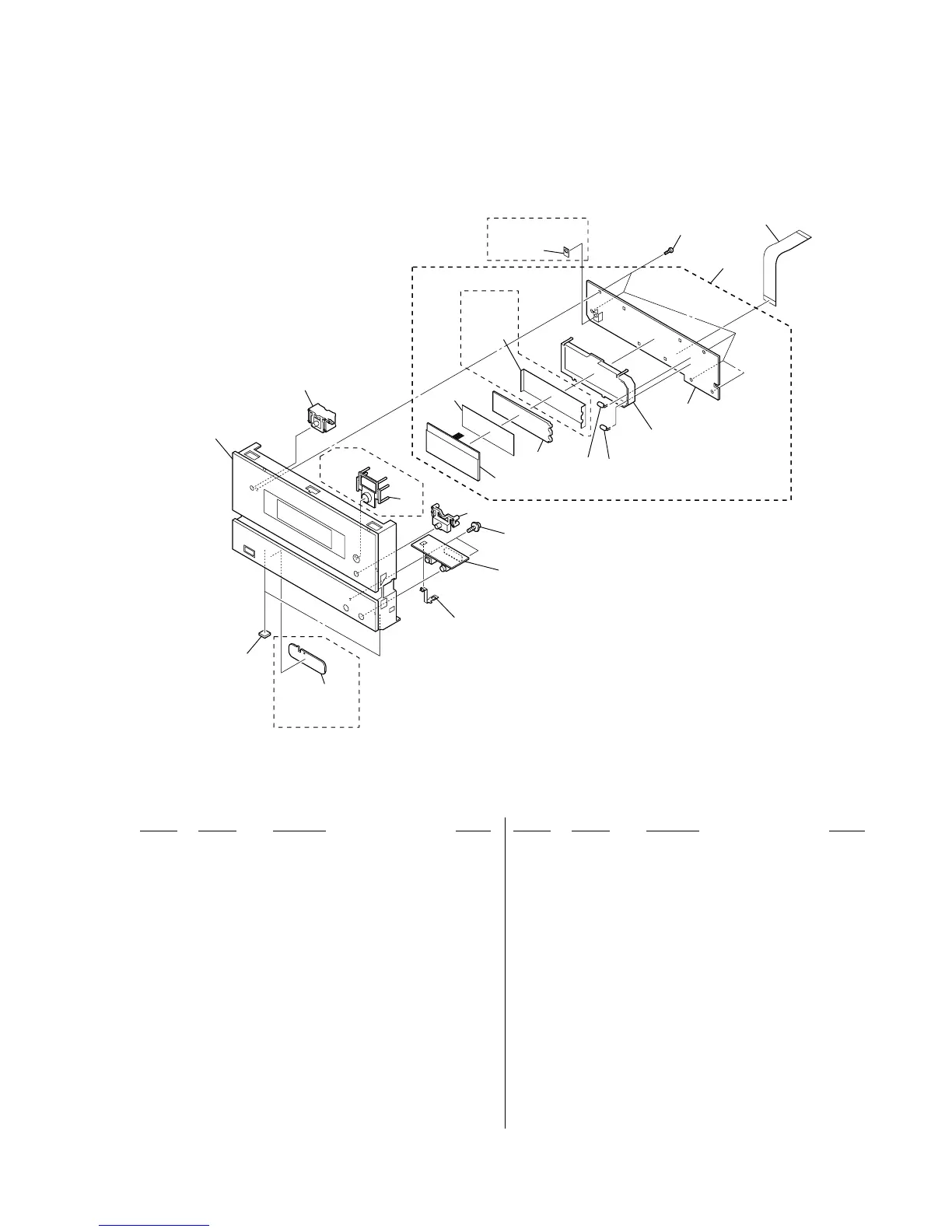

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-2177-256-1 PANEL (FRONT) ASSY (CBX1)
51 X-2177-270-1 PANEL (FRONT) ASSY (CBX3)
51 X-2177-272-1 PANEL (FRONT) ASSY (BX5BT)
52 4-233-372-02 FOOT (FELT)
53 X-2177-253-1 BUTTON (POWER) ASSY (CBX1)
53 X-2177-254-1 BUTTON (POWER) ASSY (CBX3)
53 X-2177-255-1 BUTTON (POWER) ASSY (BX5BT)
55 A-1236-018-A FRONT PANEL BOARD, COMPLETE (CBX1)
55 A-1236-335-A FRONT PANEL BOARD, COMPLETE (CBX3)
55 A-1239-026-A FRONT PANEL BOARD, COMPLETE (BX5BT)
56 2-581-391-01 PLATE, LIGHT GUIDE
57 2-586-988-02 SHEET (LCD), DIFFUSION
58 3-087-053-01 +BVTP2.6 (3CR)
59 3-921-725-01 SCREW (2.6X10), +PWH
60 2-895-114-01 BUTTON (EJECT) (CBX3)
60 2-895-114-11 BUTTON (EJECT) (BX5BT)
60 2-895-114-21 BUTTON (EJECT) (CBX1)
61 X-2177-278-1 BUTTON (BT) ASSY (BX5BT)
62 2-681-451-01 SHEET (RM) (CBX3)
D803 6-501-139-01 DIODE SELU2B10A-SLF62 (LCD BACK LIGHT)
(CBX1)
D803 6-501-827-01 LED SELU2610C-S-LF62 (LCD BACK LIGHT)
(CBX3)
D803 6-501-828-01 LED SELK2E10C-D-LF62 (LCD BACK LIGHT)
(BX5BT)
D804 6-501-139-01 LED SELU2B10A-SLF62 (LCD BACK LIGHT)
(CBX1)
D804 6-501-827-01 LED SELU2610C-S-LF62 (LCD BACK LIGHT)
(CBX3)
D804 6-501-828-01 LED SELK2E10C-D-LF62 (LCD BACK LIGHT)
(BX5BT)
LCD801 1-802-377-11 DISPLAY PANEL, LIQUID CRYSTAL
(CBX1/CBX3)
LCD801 1-802-377-21 DISPLAY PANEL, LIQUID CRYSTAL (BX5BT)
(BX5BT)
(BX5BT)
not supplied
not supplied
not
supplied
not
supplied
(BX5BT)
(CBX3)
D803
D804
LCD801
not supplied
(ANT board)
not supplied
(HEADPHONE board)
FRONT PANEL board
