Sony HCD-CBX3 - MAIN SECTION

58
HCD-BX5BT/CBX1/CBX3
#4
#4
#4
#4
#4
#4
#4
#4
not
supplied
not
supplied
not supplied
not supplie
d
POWER board section
not
supplied
not
supplied
(CBX3)
(BX5BT)
not
supplied
not
supplied
loading mechanism
section
106
105
105
105
105
104
110
103
102
112
108
107
101
109
111

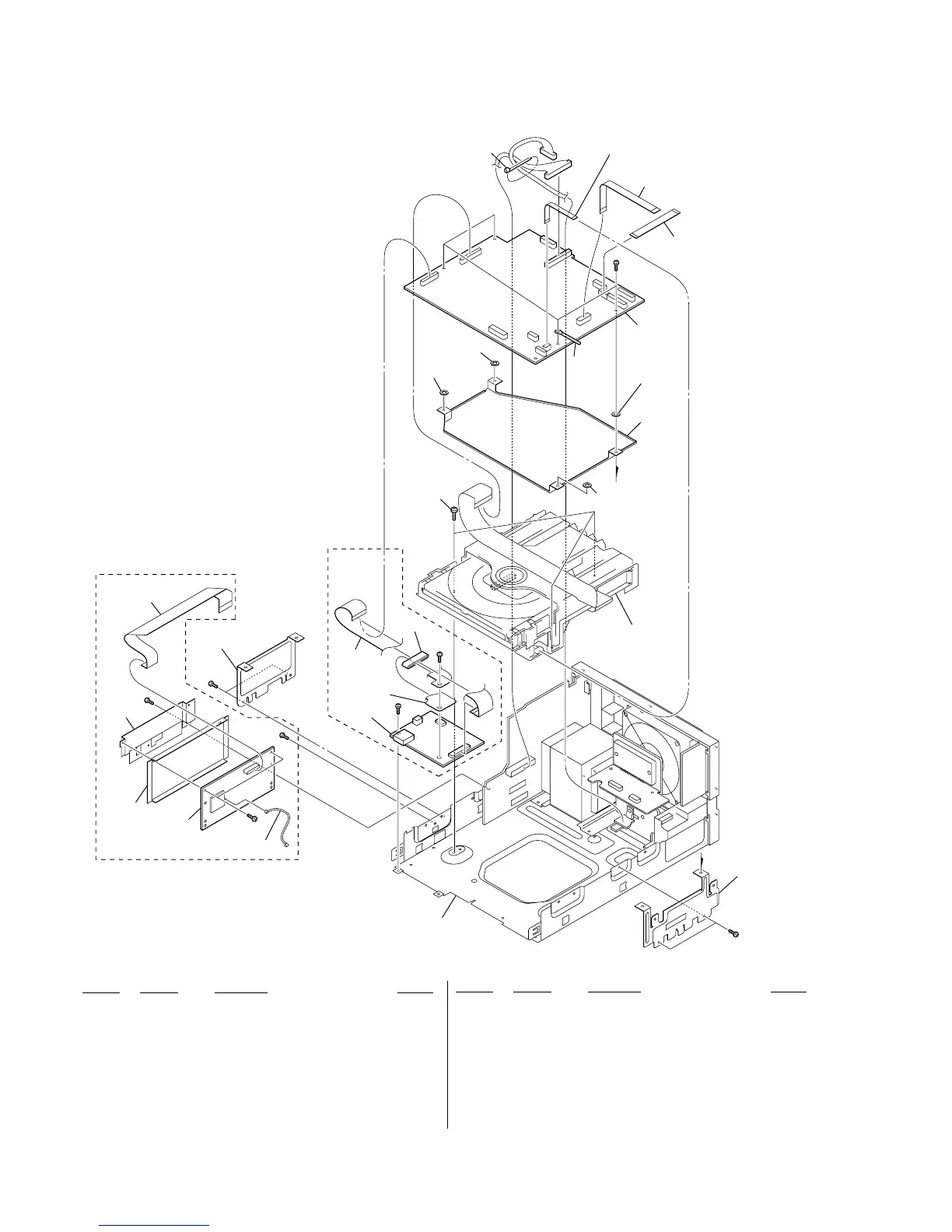

7-3. MAIN SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-1236-563-A BT BOARD, COMPLETE (BX5BT)
102 A-1236-544-A USB BOARD, COMPLETE (CBX3)
103 1-457-413-11 CORE, FERRITE (CBX3)
104 A-1236-003-A MAIN BOARD, COMPLETE (CBX1)
104 A-1236-325-A MAIN BOARD, COMPLETE (CBX3)
104 A-1239-022-A MAIN BOARD, COMPLETE (BX5BT)
105 4-949-302-71 WASHER
106 3-077-331-01 +BV3 (3-CR)
107 1-964-881-11 CABLE, COAXIAL (WITH U.F.L CONNECTOR)
(BX5BT)
108 3-198-559-01 SHEET (USB) (CBX3)
110 1-832-793-21 CABLE, FLEXIBLE FLAT (5 CORE)
111 1-832-817-21 CABLE, FLEXIBLE FLAT (9 CORE)
(BX5BT/CBX1)
111 1-832-827-21 CABLE, FLEXIBLE FLAT (11 CORE) (CBX3)
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
