Sony HCD-CBX3 - BASE UNIT SECTION

61
HCD-BX5BT/CBX1/CBX3

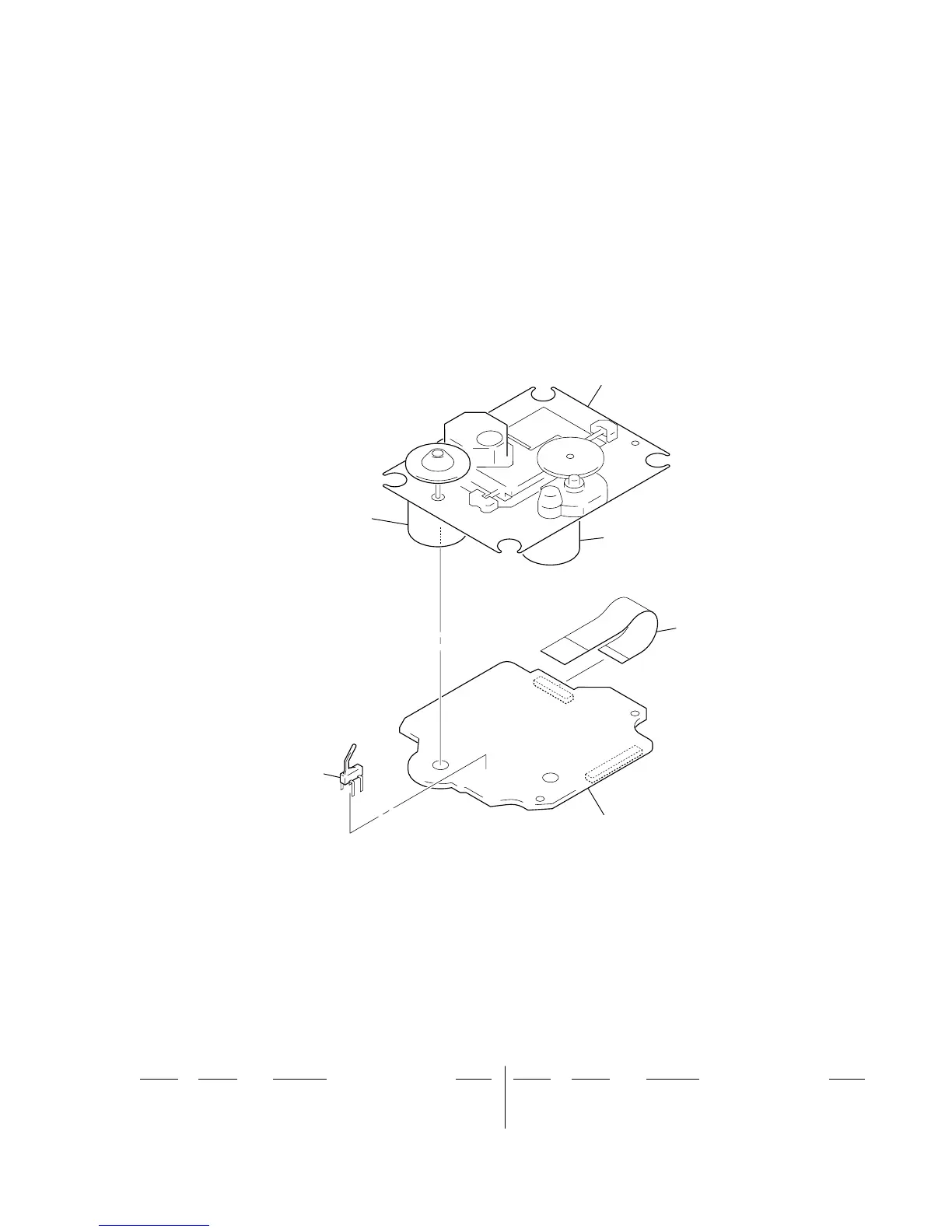

7-6. BASE UNIT SECTION
(BU-K6BD90-WOD: BX5BT/CBX1)
(BU-K6BD90U-WOD: CBX3)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0 251 A-4735-357-A BASE ASSY, OP (KSM-213D)
252 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
253 A-1217-914-A CD BOARD, COMPLETE (BX5BT/CBX1)
253 A-1229-580-A CD BOARD, COMPLETE (CBX3)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
251
(including sled motor (M402),
spindle motor (M401))
252
253
S201
sled motor (M402)
spindle motor (M401)
