Sony HCD-CP1 - SECTION 7 EXPLODED VIEWS; Exploded View: Cover, Tape Mechanism Deck

– 45 –

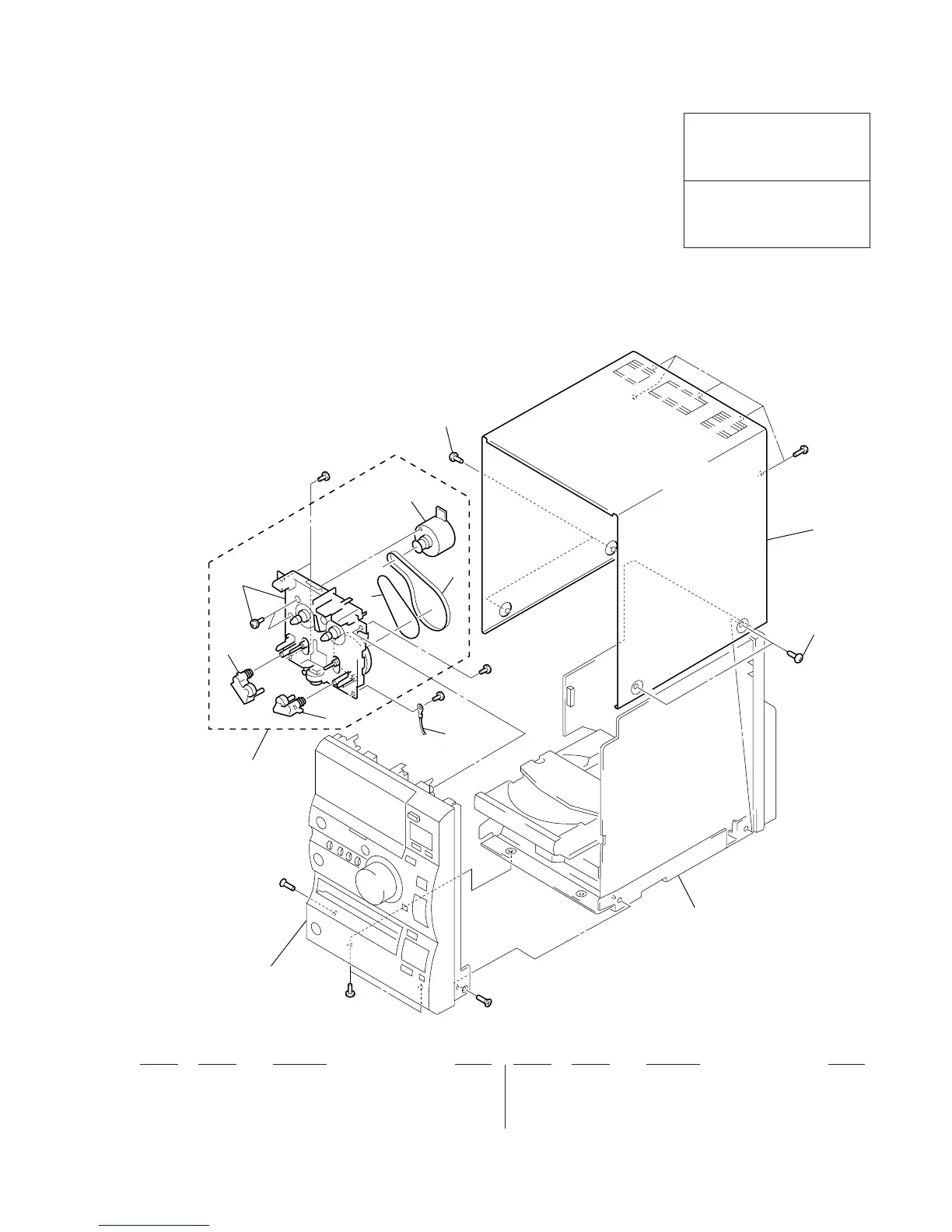

(1) COVER, TAPE MECHANISM DECK SECTION
SECTION 7
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian model
HK : Hong Kong model
MY : Malaysia model
SP : Singapore model
TH : Thai model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 1-772-001-11 ELECTRIC, MECHANICAL (TAPE DECK BLOCK)
2 X-4949-568-1 ROLLER PINCH BLK R ASSY
3 X-4949-569-1 ROLLER PINCH BLK L ASSY
4 4-997-984-01 BELT, F/R
5 4-997-983-01 BELT, MAIN
6 3-363-099-51 SCREW (CASE 3 TP2)
* 7 4-217-341-01 COVER (UPPER)
#1
#1
#1
Front panel
secrtion
#2
#2
not
supplied
not
supplied
not
supplied
#1
1
2
3
5
6
7
#1
Chassis section
6
4
