Sony HCD-CP1 - CONTROL Section; Printed Wiring Boards and Semiconductor Locations

HCD-CP1
– 37 –
– 38 –

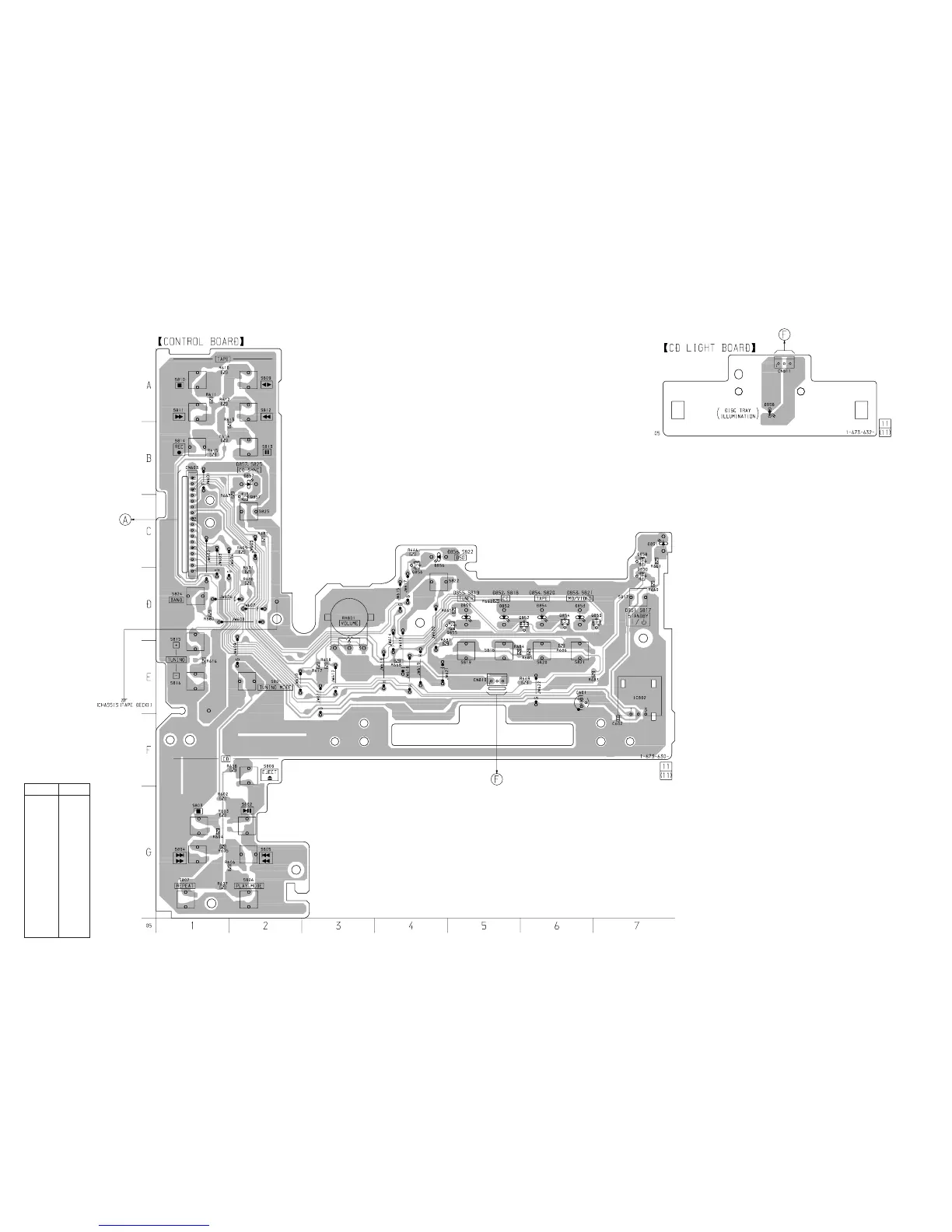

6-11. PRINTED WIRING BOARDS – CONTROL Section – • See page 22 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D851 C-7
D852 D-5
D853 D-6
D854 D-6
D855 D-5
D856 C-4
D857 B-2
IC802 E-7
Q852 D-6
Q853 D-7
Q854 D-6
Q855 D-5
Q856 C-4
Q857 C-2
Q858 C-7
Q859 D-7
(Page 23)
