Sony HCD-CP1 - SECTION 3 DISASSEMBLY; Cover and Tape Mechanism Deck Disassembly

– 7 –

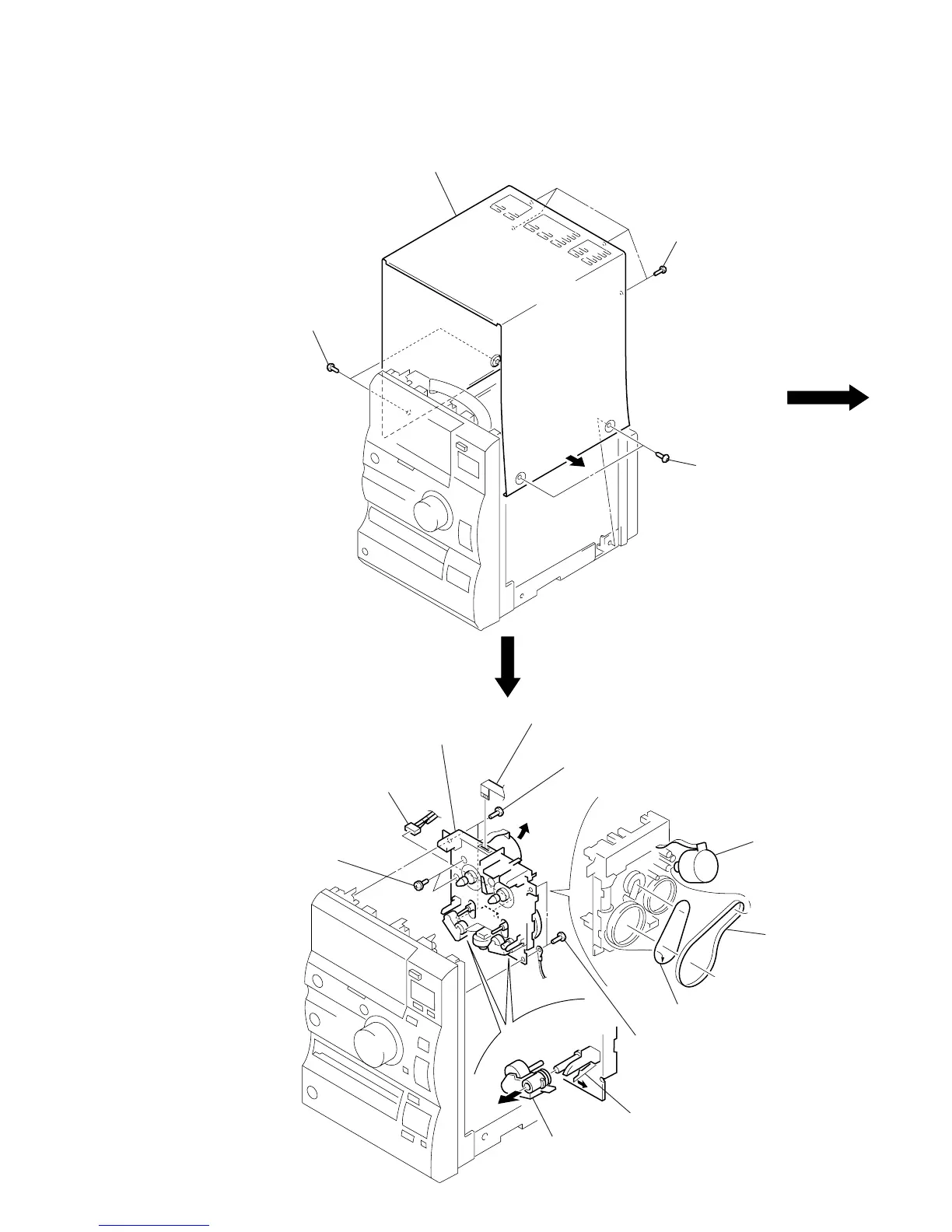

COVER (UPPER)
TAPE MECHANISM DECK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 two screws
(case3 TP2)
3 cover (upper)
2 four screws
(BTP3
× 8)
1 two screws
(case3 TP2
)
5 two screws
2 connector
4 tape
mechanism deck
1 flat wire (12 core)
3 two screws
(BTP3 × 8)
3 two screws
(BTP3 × 8)
6 motor
7 main belt
8 F/R belt
9 claw
0 pinch roller
