Sony HCD-CP1 - FRONT PANEL SECTION

– 8 –

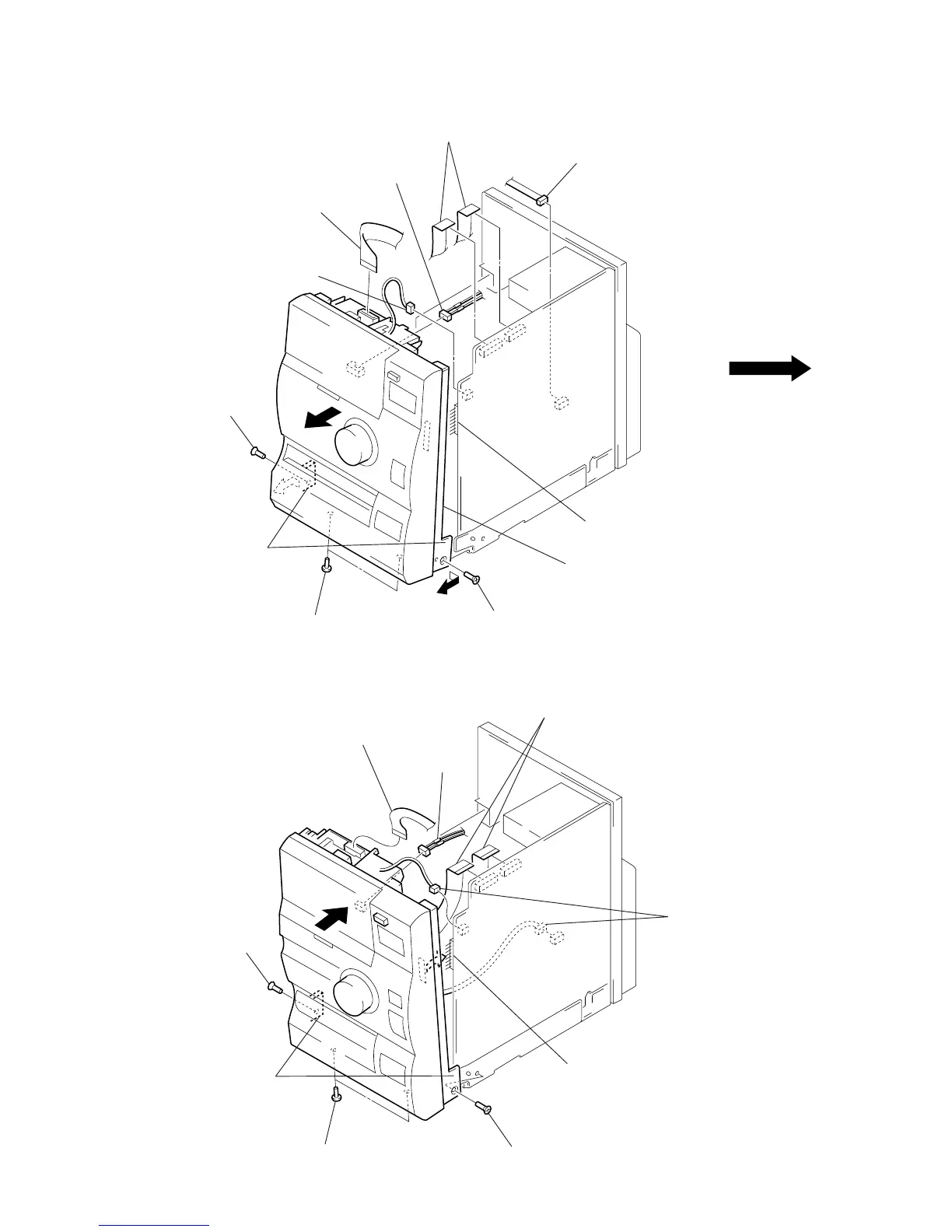

FRONT PANEL SECTION
• FRONT PANEL SECTION INSTALLATION
Note: Follow the assembly procedure in the numerical order given.
1 connector
(CN303)
1 connector
1 connector
(CN809)
2 two flat wires
(CN802, 804)
2 flat wire
(12 core)
5 two claws
3 screw
(KTP3 × 6)
7 front panel section
6 connector (CN603
)
4 two screws
(BTP3 × 8)
3 screw
(KTP3 × 6)
6 connector
5 flat wire (12 core)
5 two flat wires
(CN802, 804)
6 two connectors
(CN303, 809)
2 connector
(CNP806)
Note: As CNP806 pin is bent easily,
treat is carefully.
3 screw
(KTP3 × 6)
4 two screws
(BTP3 × 8)
3 screw
(KTP3 × 6)
1 two claws
